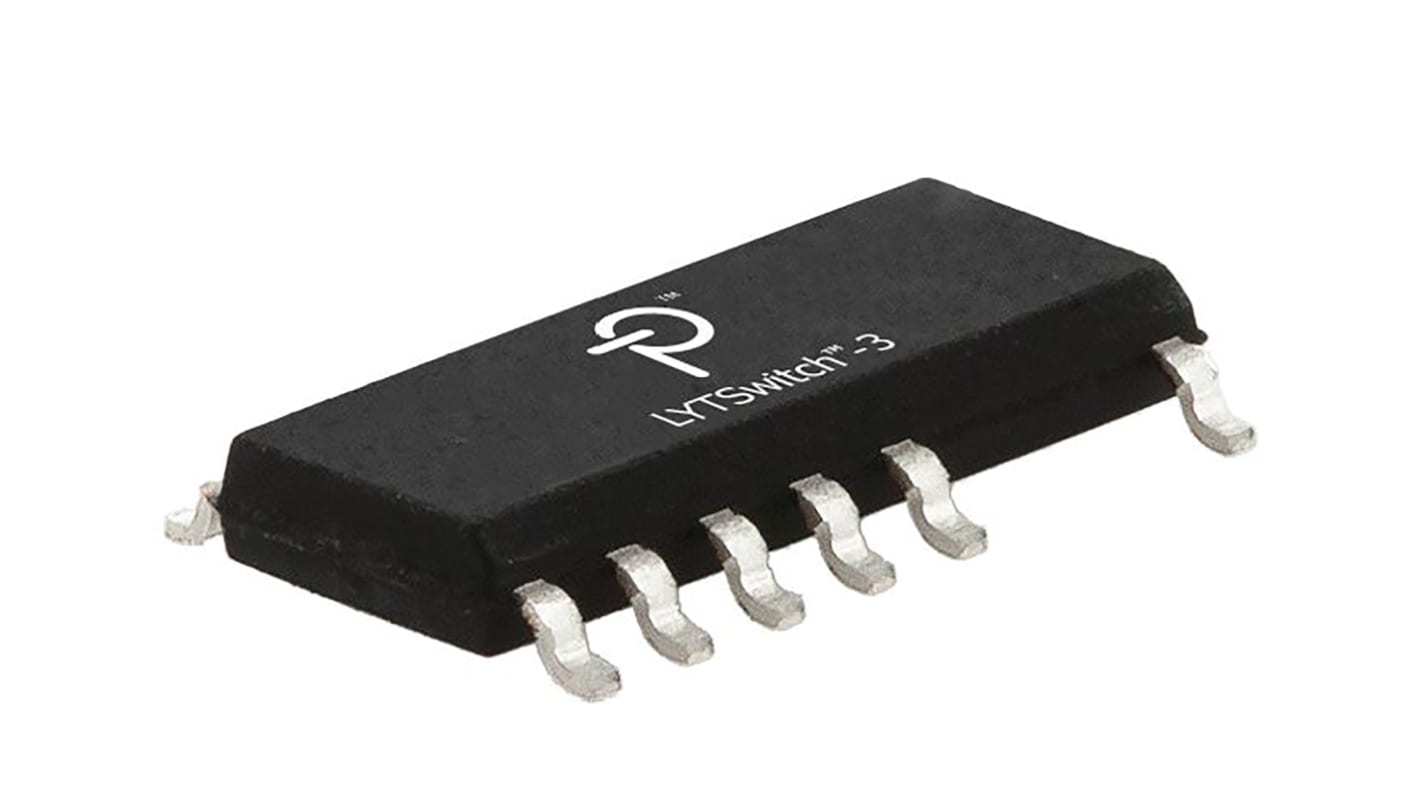

Power Integrations LYT3325D LED Driver IC, 185 → 265 V ac 3.16A 14-Pin SOIC
- RS Stock No.:
- 146-2581
- Mfr. Part No.:
- LYT3325D
- Brand:
- Power Integrations
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 146-2581
- Mfr. Part No.:
- LYT3325D
- Brand:
- Power Integrations
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Power Integrations | |
| Output Current | 3.16A | |
| Input Voltage | 185 → 265 V ac | |
| AC or DC Input Voltage | ac | |
| Dimming Operation | Triac | |
| Maximum Output Power | 8.8W | |
| Application | Isolated LED Lighting, Non-Isolated LED Lighting | |
| Package Type | SOIC | |
| Number of Pins | 14 | |
| Maximum Output Voltage | 725V | |
| Minimum Output Voltage | -0.3V | |
| Current Rating | 1.4mA | |
| Series | LYT33x5 | |
Select all | ||
|---|---|---|
Brand Power Integrations | ||
Output Current 3.16A | ||
Input Voltage 185 → 265 V ac | ||
AC or DC Input Voltage ac | ||
Dimming Operation Triac | ||
Maximum Output Power 8.8W | ||
Application Isolated LED Lighting, Non-Isolated LED Lighting | ||
Package Type SOIC | ||
Number of Pins 14 | ||
Maximum Output Voltage 725V | ||
Minimum Output Voltage -0.3V | ||
Current Rating 1.4mA | ||
Series LYT33x5 | ||
- COO (Country of Origin):
- CN
LYTSwitch-3 series LED Driver AC-DC Converters
LYTSwitch-3 single-stage LED driver ICs with combined power factor correction and constant current outputs from Power Integrations. These devices incorporates a high-voltage power MOSFET and discontinuous mode, variable frequency, variable on-time controller integrated into a single chip. They can provide outstanding TRIAC dimming of LED lighting in isolated and non-isolated topologies and include a comprehensive range of protection features.
• Combined single-stage PFC plus constant current output drive
• Constant current regulation better than ±3% over line and load variations
• Power Factor >0.9
• Ensures monotonic VA reduction with TRIAC phase angle change
• Low THD: 15% typical for dimmable bulbs, as low as 7% in optimized designs
• Detects leading-edge and trailing-edge TRIAC dimmers
• High-efficiency mode when no dimmer is present
• Selectable dimming profile increases design flexibility
• Fast turn-on time, <500 ms
• Supports buck, buck-boost, tapped buck-boost, boost, isolated and non-isolated flyback topologies
• No electrolytic bulk capacitors or opto-isolators for increased reliability and operating life
• Input and output overvoltage protection
• Output short-circuit and open-loop protection
• End-stop shutdown provides protection during fault conditions
• Thermal control with fold-back ensures that light continues to be delivered at high temperatures
• Constant current regulation better than ±3% over line and load variations
• Power Factor >0.9
• Ensures monotonic VA reduction with TRIAC phase angle change
• Low THD: 15% typical for dimmable bulbs, as low as 7% in optimized designs
• Detects leading-edge and trailing-edge TRIAC dimmers
• High-efficiency mode when no dimmer is present
• Selectable dimming profile increases design flexibility
• Fast turn-on time, <500 ms
• Supports buck, buck-boost, tapped buck-boost, boost, isolated and non-isolated flyback topologies
• No electrolytic bulk capacitors or opto-isolators for increased reliability and operating life
• Input and output overvoltage protection
• Output short-circuit and open-loop protection
• End-stop shutdown provides protection during fault conditions
• Thermal control with fold-back ensures that light continues to be delivered at high temperatures
AC-DC Converters, Power Integrations
