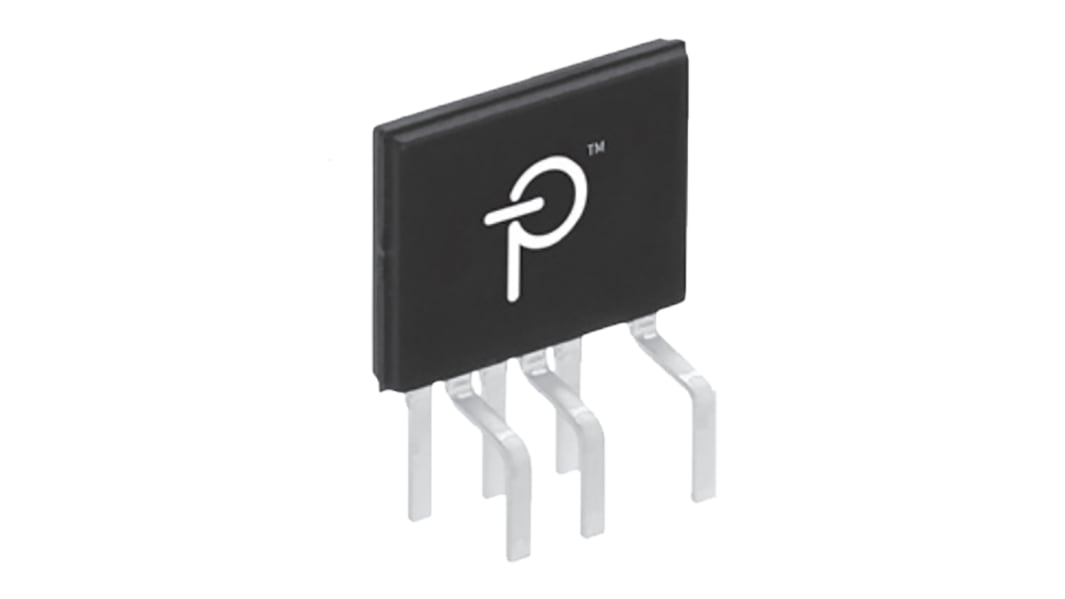

Power Integrations LYT4221E LED Driver IC, 160 → 308 V ac 1.37A 6-Pin eSIP-7C
- RS Stock No.:
- 146-2561
- Mfr. Part No.:
- LYT4221E
- Brand:
- Power Integrations
Available to back order for despatch 10/02/2025
Added
Price Each (In a Tube of 48)
£0.511
(exc. VAT)
£0.613
(inc. VAT)
| Units | Per unit | Per Tube* |
| 48 + | £0.511 | £24.528 |
| *price indicative | ||
- RS Stock No.:
- 146-2561
- Mfr. Part No.:
- LYT4221E
- Brand:
- Power Integrations
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
LYTSwitch-4 series High Power LED Driver AC-DC Converters
The Power Integrations LYTSwitch-4 family of off-line AC-DC single-stage converters are designed for high-power LED driver applications. They integrate control and drive circuits and power factor correction in a single package and are available in both dimming and non-dimming versions.
• High line voltage operation: 160-308 Vac
• Better than ±5% constant current regulation
• Up to 92% efficiency in typical applications
• High power factor >0.9
• Easily meets EN61000-3-2
• Less than 10% THD in optimized designs
• 132 kHz switching frequency permits use of small low-cost magnetics
• No primary side aluminium electrolytic bulk capacitors required
LTY432x types only:
• TRIAC dimmable to less than 5% of full output
• Fast start-up: <250 ms at full brightness, <1s at 10% brightness
• Better than ±5% constant current regulation
• Up to 92% efficiency in typical applications
• High power factor >0.9
• Easily meets EN61000-3-2
• Less than 10% THD in optimized designs
• 132 kHz switching frequency permits use of small low-cost magnetics
• No primary side aluminium electrolytic bulk capacitors required
LTY432x types only:
• TRIAC dimmable to less than 5% of full output
• Fast start-up: <250 ms at full brightness, <1s at 10% brightness
AC-DC Converters, Power Integrations
Specifications
Attribute | Value |
|---|---|
| Output Current | 1.37A |
| Input Voltage | 160 → 308 V ac |
| AC or DC Input Voltage | dc |
| Maximum Output Power | 12W |
| Application | High Line LED Lighting |
| Package Type | eSIP-7C |
| Number of Pins | 6 |
| Minimum Output Voltage | 36V |
| Current Rating | (Non-Switching) 1.2 mA, (Switching) 4mA |
| Series | LYT4x21 |
