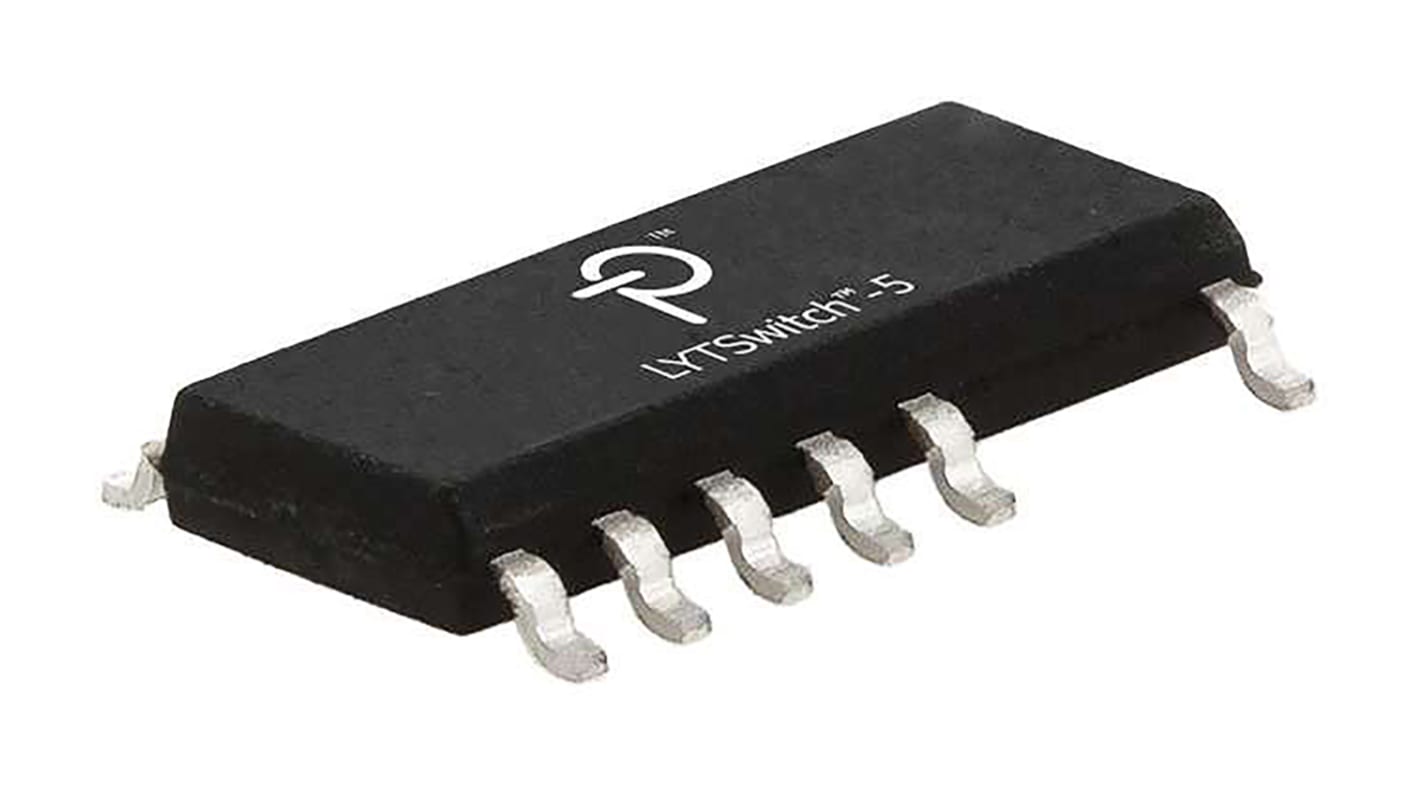

Power Integrations LYT5218D LED Driver IC, 90 → 308 V ac 6.3A 14-Pin SOIC
- RS Stock No.:
- 123-5529P
- Mfr. Part No.:
- LYT5218D
- Brand:
- Power Integrations
Bulk discount available
Subtotal 30 units (supplied in a tube)*
£26.67
(exc. VAT)
£32.01
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
---|---|
30 - 40 | £0.889 |
50 - 90 | £0.788 |
100 + | £0.768 |
*price indicative
- RS Stock No.:
- 123-5529P
- Mfr. Part No.:
- LYT5218D
- Brand:
- Power Integrations
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Power Integrations | |
Output Current | 6.3A | |
Input Voltage | 90 → 308 V ac | |
AC or DC Input Voltage | ac | |
Maximum Output Power | 25W | |
Application | Isolated LED Lighting, Non-Isolated LED Lighting | |
Package Type | SOIC | |
Number of Pins | 14 | |
Maximum Output Voltage | 650V | |
Minimum Output Voltage | -0.3V | |
Current Rating | 1.5mA | |
Series | LYT52 | |
Select all | ||
---|---|---|
Brand Power Integrations | ||
Output Current 6.3A | ||
Input Voltage 90 → 308 V ac | ||
AC or DC Input Voltage ac | ||
Maximum Output Power 25W | ||
Application Isolated LED Lighting, Non-Isolated LED Lighting | ||
Package Type SOIC | ||
Number of Pins 14 | ||
Maximum Output Voltage 650V | ||
Minimum Output Voltage -0.3V | ||
Current Rating 1.5mA | ||
Series LYT52 | ||
LYTSwitch-5 series LED Driver AC-DC Converters
The LYTSwitch-5 family of AC-DC Converters from Power Integrations is ideal for single-stage power factor corrected constant current LED applications, equally suited for lamps, tubes or ballasts. These highly integrated devices incorporate a discontinuous mode, variable frequency, variable on-time controller, and a high-voltage power MOSFET in a single compact package and include advanced thermal management and protection circuitry.
Efficiency >90% in optimized designs
Power Factor >0.9
Constant current regulation accuracy better than ±3%
Low THD, <10% with typical input and output conditions
High switching frequency and DCM allow compact magnetics
Supports buck, buck-boost, tapped-buck, boost, isolated and non-isolated flyback topologies
No electrolytic bulk capacitors or opto-isolators for increased lifetime and reliability
Input and output overvoltage protection
Open-loop protection
Thermal control with fold-back allows output light delivery at high ambient temperatures
Hysteretic shutdown provides protection during fault conditions
Power Factor >0.9
Constant current regulation accuracy better than ±3%
Low THD, <10% with typical input and output conditions
High switching frequency and DCM allow compact magnetics
Supports buck, buck-boost, tapped-buck, boost, isolated and non-isolated flyback topologies
No electrolytic bulk capacitors or opto-isolators for increased lifetime and reliability
Input and output overvoltage protection
Open-loop protection
Thermal control with fold-back allows output light delivery at high ambient temperatures
Hysteretic shutdown provides protection during fault conditions
AC-DC Converters, Power Integrations
