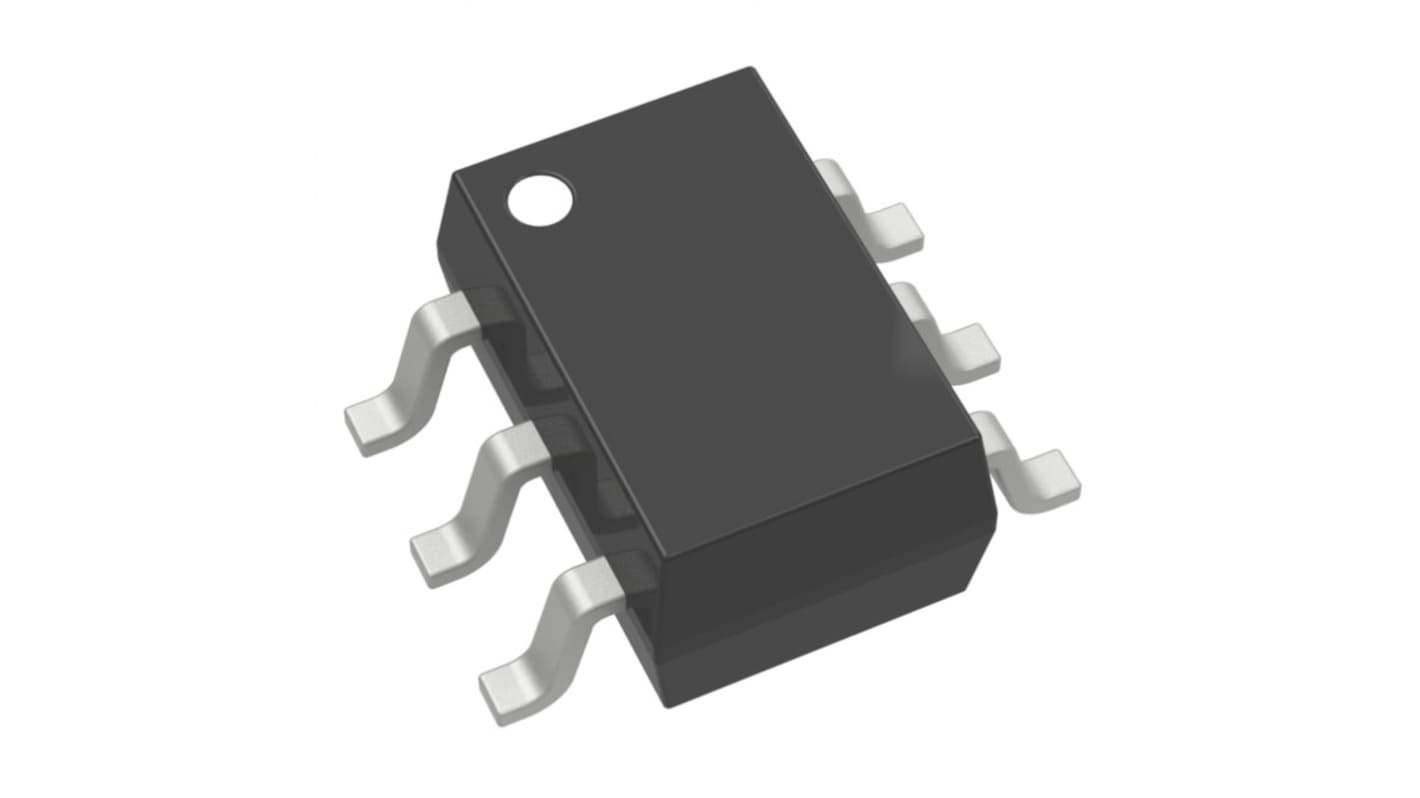

MPS MP3412EJ-LF-P LED Driver, 0.8 → 4.4 V 1.1A 6-Pin TSOT-23
- RS Stock No.:
- 337-192
- Mfr. Part No.:
- MP3412EJ-LF-P
- Brand:
- MPS
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 337-192
- Mfr. Part No.:
- MP3412EJ-LF-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MPS | |
Output Current | 1.1A | |
Input Voltage | 0.8 → 4.4 V | |
AC or DC Input Voltage | dc | |
Dimming Operation | PWM | |
Maximum Output Power | 560mW | |
Package Type | TSOT-23 | |
Number of Pins | 6 | |
Select all | ||
---|---|---|
Brand MPS | ||
Output Current 1.1A | ||
Input Voltage 0.8 → 4.4 V | ||
AC or DC Input Voltage dc | ||
Dimming Operation PWM | ||
Maximum Output Power 560mW | ||
Package Type TSOT-23 | ||
Number of Pins 6 | ||
- COO (Country of Origin):
- CN
The MPS International Ltd High efficiency step up WLED driver with true output load disconnect function in a low profile 6 lead Thin SOT23 package. It can startup from an input voltage as low as 0.8V and provides in rush current limiting as well as output short circuit protection. The open load protection is also integrated. A switching frequency of 1MHz minimizes overall solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. Current mode PWM control with internal compensation reduces external parts, thereby saving critical board space.
Tiny external components
True output load disconnect
Inrush current limiting and internal soft start
Open load protection
Short circuit protection
True output load disconnect
Inrush current limiting and internal soft start
Open load protection
Short circuit protection
