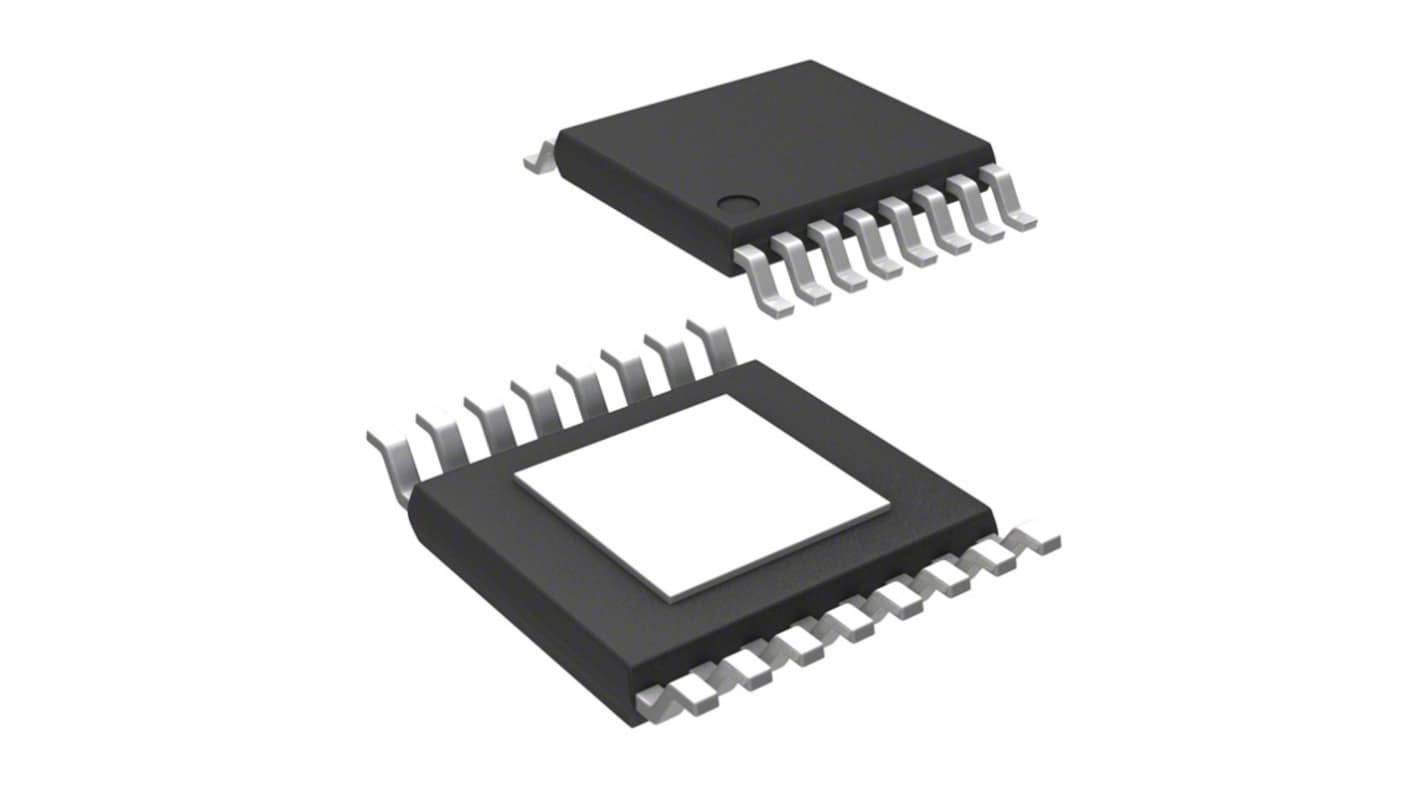

MPS MP3394EF-LF-P LED Driver, 5 → 28 V 200mA 16-Pin TSSOP-16-EP
- RS Stock No.:
- 337-190
- Mfr. Part No.:
- MP3394EF-LF-P
- Brand:
- MPS
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 337-190
- Mfr. Part No.:
- MP3394EF-LF-P
- Brand:
- MPS
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | MPS | |
Output Current | 200mA | |
Input Voltage | 5 → 28 V | |
AC or DC Input Voltage | dc | |
Dimming Operation | PWM | |
Maximum Output Power | 2.78W | |
Package Type | TSSOP-16-EP | |
Number of Pins | 16 | |
Select all | ||
---|---|---|
Brand MPS | ||
Output Current 200mA | ||
Input Voltage 5 → 28 V | ||
AC or DC Input Voltage dc | ||
Dimming Operation PWM | ||
Maximum Output Power 2.78W | ||
Package Type TSSOP-16-EP | ||
Number of Pins 16 | ||
- COO (Country of Origin):
- CN
The MPS International Ltd Step up controller with 4 channel current sources designed for driving the WLED arrays for large size LCD panel backlighting applications. Its uses current mode, fixed frequency architecture. The switching frequency is programmable by an external frequency setting resistor. It drives an external MOSFET to boost up the output voltage from a 5V to 28V input supply. Its regulates the current in each LED string to the programmed value set by an external current setting resistor.
Programmable over voltage protection
Cascading capability with a single power source
Under voltage lockout
Thermal shutdown
Cascading capability with a single power source
Under voltage lockout
Thermal shutdown
