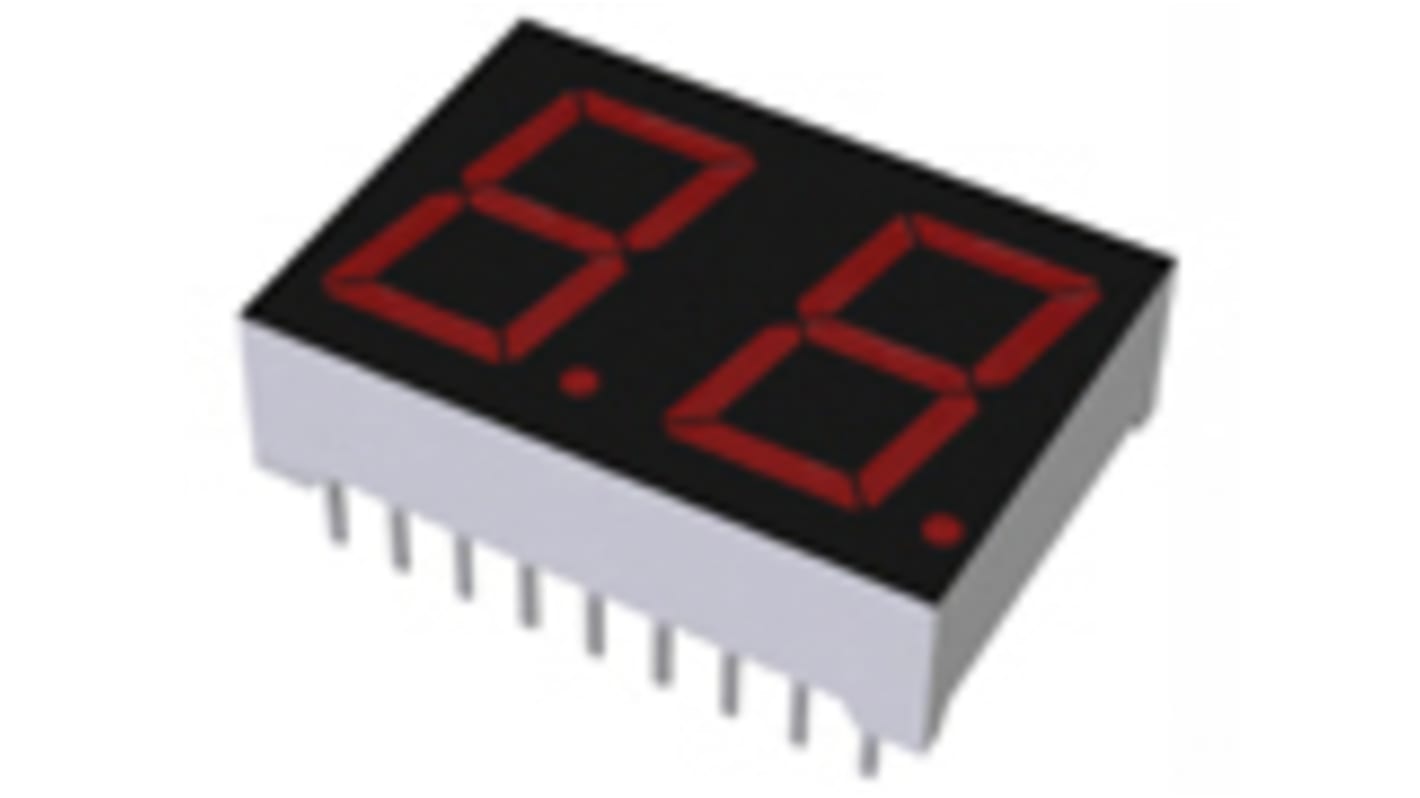

LB-502VD ROHM 2 7 Segment LED Display Anode 16mcd Right Side 13 mm
- RS Stock No.:
- 168-2335
- Mfr. Part No.:
- LB-502VD
- Brand:
- ROHM
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 168-2335
- Mfr. Part No.:
- LB-502VD
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Display Type | 7 Segment | |
| Product Type | LED Display | |
| Number of Characters | 2 | |
| Number of Segments | 7 | |
| Dominant Wavelength | 650nm | |
| Character Width | 7.4mm | |
| Character Height | 13mm | |
| Common Connection | Anode | |
| External Depth | 7mm | |
| External Height | 17.5mm | |
| External Width | 25mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 75°C | |
| Luminous Intensity | 16mcd | |
| Colour of Face | Black | |
| Forward Voltage | 2V | |
| Power Dissipation | 60mW | |
| Decimal Orientation | Right Side | |
| Forward Current | 20mA | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Display Type 7 Segment | ||
Product Type LED Display | ||
Number of Characters 2 | ||
Number of Segments 7 | ||
Dominant Wavelength 650nm | ||
Character Width 7.4mm | ||
Character Height 13mm | ||
Common Connection Anode | ||
External Depth 7mm | ||
External Height 17.5mm | ||
External Width 25mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 75°C | ||
Luminous Intensity 16mcd | ||
Colour of Face Black | ||
Forward Voltage 2V | ||
Power Dissipation 60mW | ||
Decimal Orientation Right Side | ||
Forward Current 20mA | ||
- COO (Country of Origin):
- JP
2-digit displays are available in packages of character height 7.62mm, 10.16mm, 13mm and 14.3mm. 2-digit displays in package of character height 14.3mm are available featuring AlGaInP-die type to meet the market needs of high-brightness/low current consumption, as well blue-color emission type in lineup.
Character Height is 10.16mm
DIP Type
Anode Common Type
