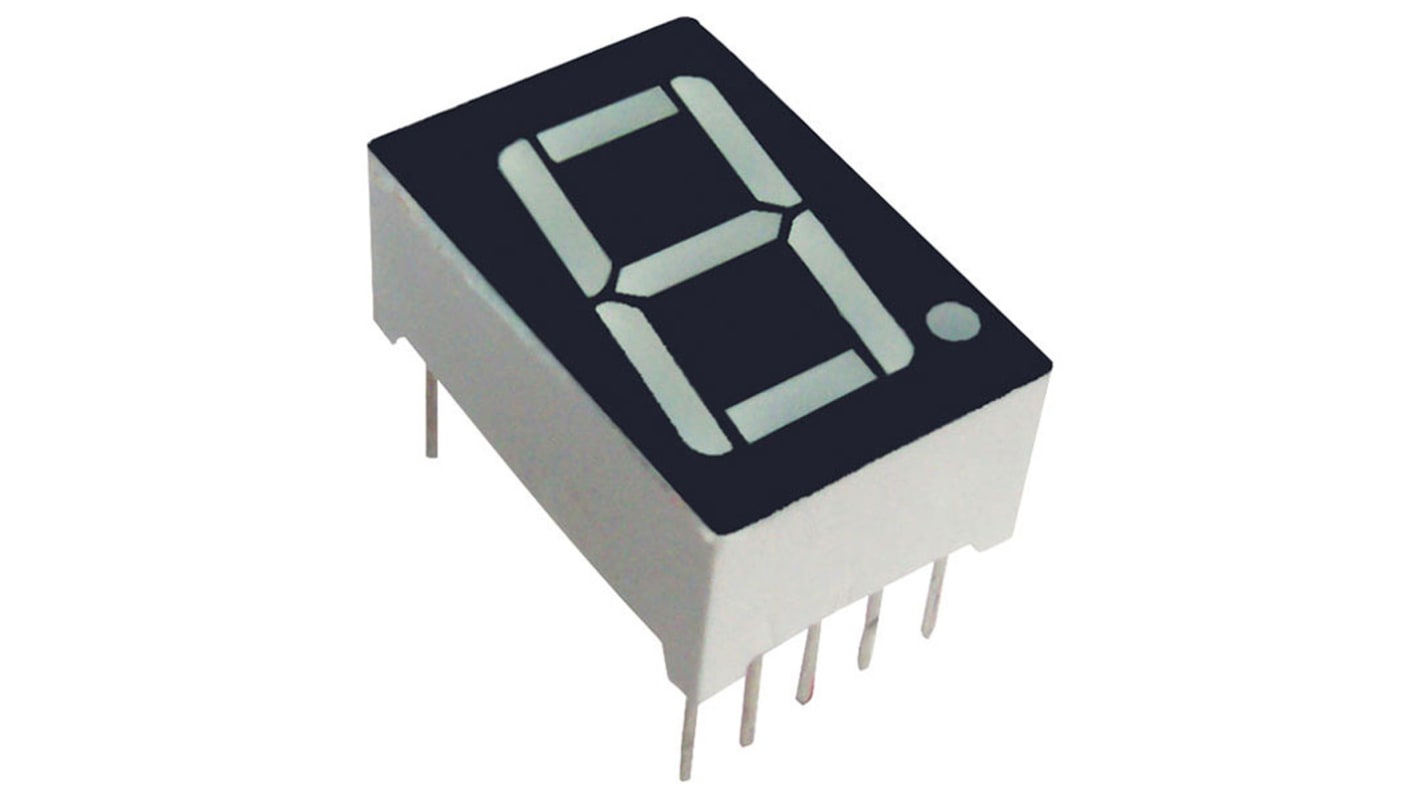

SA08-11SURKWA Kingbright 7-Segment LED Display, CA Red 61 mcd RH DP 20.3mm
- RS Stock No.:
- 165-4345
- Mfr. Part No.:
- SA08-11SURKWA
- Brand:
- Kingbright
Subtotal (1 tube of 18 units)*
£31.18
(exc. VAT)
£37.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 378 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 18 + | £1.732 | £31.176 |
*price indicative
- RS Stock No.:
- 165-4345
- Mfr. Part No.:
- SA08-11SURKWA
- Brand:
- Kingbright
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Kingbright | |
| Display Type | 7-Segment | |
| Number of Characters | 1 | |
| LED Colours | Red | |
| Number of Segments | 7 | |
| Dominant Wavelength | 630 nm | |
| Character Width | 11mm | |
| Character Height | 20.3mm | |
| Common Connection | Anode | |
| Mounting Type | Through Hole | |
| External Dimensions | 27.1 x 20 x 8.4mm | |
| External Height | 8.4mm | |
| External Width | 27.1mm | |
| External Depth | 20mm | |
| Luminous Intensity | 61 mcd | |
| Colour of Face | Grey | |
| Forward Voltage | 2 V | |
| Power Dissipation | 75mW | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Forward Current | 30mA | |
| Series | SA08 | |
| Operating Temperature Range | -40 → +85°C | |
| Decimal Orientation | Right Side | |
Select all | ||
|---|---|---|
Brand Kingbright | ||
Display Type 7-Segment | ||
Number of Characters 1 | ||
LED Colours Red | ||
Number of Segments 7 | ||
Dominant Wavelength 630 nm | ||
Character Width 11mm | ||
Character Height 20.3mm | ||
Common Connection Anode | ||
Mounting Type Through Hole | ||
External Dimensions 27.1 x 20 x 8.4mm | ||
External Height 8.4mm | ||
External Width 27.1mm | ||
External Depth 20mm | ||
Luminous Intensity 61 mcd | ||
Colour of Face Grey | ||
Forward Voltage 2 V | ||
Power Dissipation 75mW | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Forward Current 30mA | ||
Series SA08 | ||
Operating Temperature Range -40 → +85°C | ||
Decimal Orientation Right Side | ||
