Matrix EB004, E-Block LED Evaluation Board

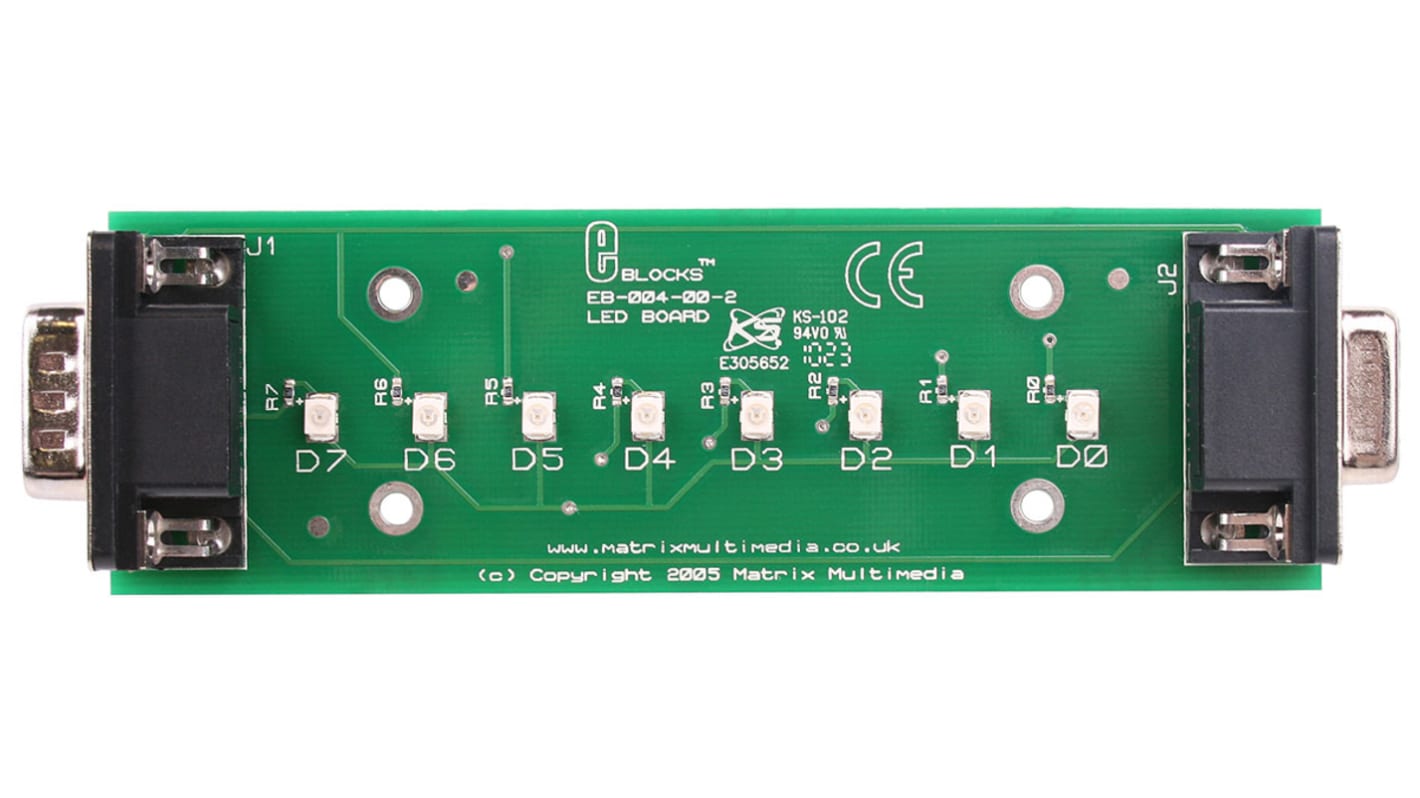

The EB004 LED Board has eight LEDs and can be easily connected to any e-blocks board using either the attached upstream and/or downstream connector. Suitable for a 3 V power supply, Flowcode support software is available with a free 30-day trial.

E-blocks Boards

E-blocks from Matrix Technology are small circuit boards with a block of electronics that are typically found in an electronic or embedded system. They be quickly snapped together to form a fully functioning systems and this ease of use makes them ideal for rapid prototyping.

Currently there are more than 50 E-Block boards available. From simple LED boards to sensors, Bluetooth, Motor Control, RFID, LCD Display, WiFi, GPS and many more. Whether you are PIC or Arduino programming or working with other hardware platforms there is sure to be something to suit your needs.

E-blocks are supported with software and courseware (including PIC, dsPIC, ARM and AVR Arduino IDE, Flowcode).
