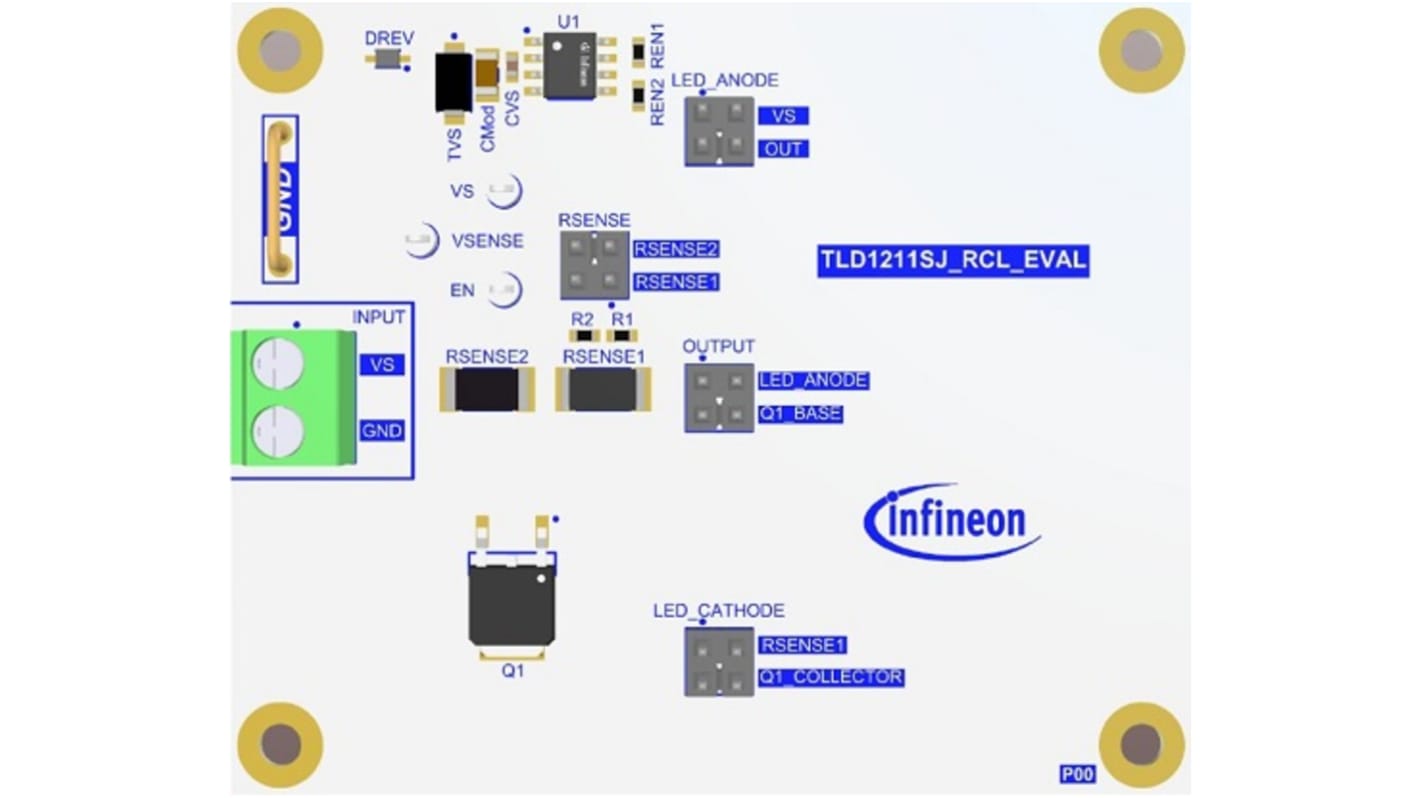

The Infineon evaluation board is to help designers evaluate the performance of the LITIX™ Linear TLD1211SJ, a single channel linear current source LED driver for automotive LED lighting applications. The LITIX™ Linear TLD1211SJ provides a simple and low-cost solution for low current applications up to 85 mA. When using additional external power stages as “booster” transistors, it can also be used to drive high currents up to 2.5 A.

Equipped with one LITIX™ Linear TLD1211SJ and on-board LEDs
Typical supply voltage range 8V – 16V
Two possible output current configurations: 50 mA, 300 mA(use add. transistor)
On-board LEDs for easy evaluation
