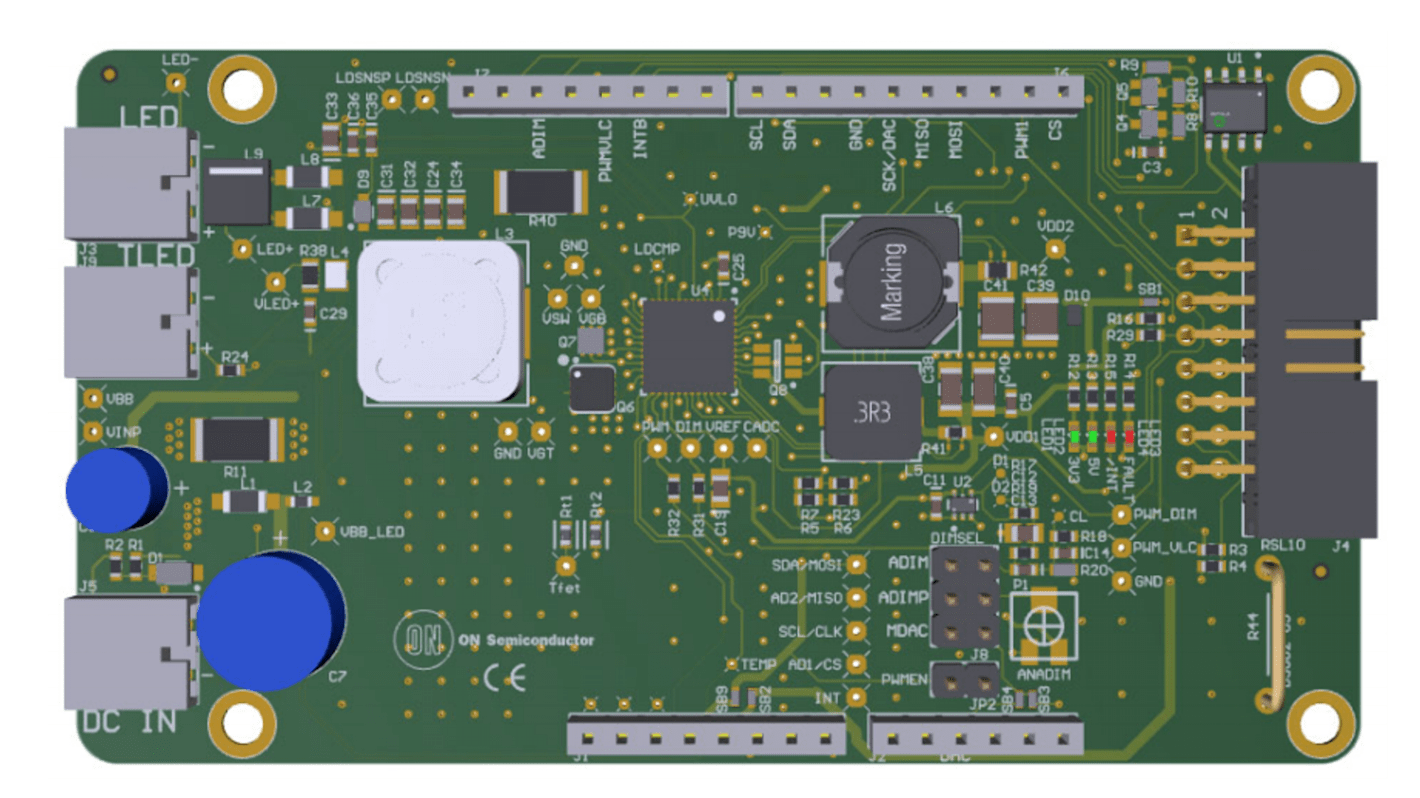

onsemi NCL31000ASGEVB, Intelligent LED Driver Evaluation Board LED Driver Evaluation Board for Arduino Shield

View all LED Development Tools
Bulk discount available

Subtotal (1 unit)*

£69.67

(exc. VAT)

£83.60

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 3 unit(s) shipping from 12 November 2025
  • Plus 999,999,996 unit(s) shipping from 21 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 1£69.67
2 - 4£67.89
5 +£66.19

*price indicative

RS Stock No.:
230-9053
Mfr. Part No.:
NCL31000ASGEVB
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

LED Technology

LED Driver

Kit Classification

Evaluation Board

For Use With

Arduino

Featured Device

Arduino Shield Compatible

Kit Name

Intelligent LED Driver Evaluation Board

The ON Semiconductor series NCL31000 is an intelligent LED driver targeting luminaire applications. The NCL31000 incorporates a high efficiency buck LED driver that supports both high-bandwidth analogue and PWM dimming down to zero current. Two auxiliary DC-DC converters are included to power a microcontroller and other sensors. Diagnostics are included to measure input and output current and voltage, LED temperature and DC-DC voltages.

Arduino Shield compatible
Visible Light Communication capable / Yellow Dot™ compliant
>97 % Efficiency of total solution, incl EMC, DC-DC’s, diagnostics, etc.
High linearity and 0,1% accuracy, true dimming to zero
Input voltage 24 up to 57V
LED Power capability beyond 100W
Optional I2C/SPI interface (NCL31000MNITWG I²C variant mounted)
