STMicroelectronics STEVAL-ILL061V1, STEVAL LED Driver Evaluation Board for LED1642GW, STM32 for High Brightness LED
- RS Stock No.:
- 196-1804
- Mfr. Part No.:
- STEVAL-ILL061V1
- Brand:
- STMicroelectronics
Subtotal (1 unit)*
£43.75
(exc. VAT)
£52.50
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 1 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £43.75 |
*price indicative
- RS Stock No.:
- 196-1804
- Mfr. Part No.:
- STEVAL-ILL061V1
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | STMicroelectronics | |
LED Technology | LED Driver | |
Kit Classification | Evaluation Board | |
For Use With | High Brightness LED Driver | |
Featured Device | LED1642GW, STM32 | |
Kit Name | STEVAL | |
Select all | ||
---|---|---|
Brand STMicroelectronics | ||
LED Technology LED Driver | ||
Kit Classification Evaluation Board | ||
For Use With High Brightness LED Driver | ||
Featured Device LED1642GW, STM32 | ||
Kit Name STEVAL | ||
- COO (Country of Origin):
- IT

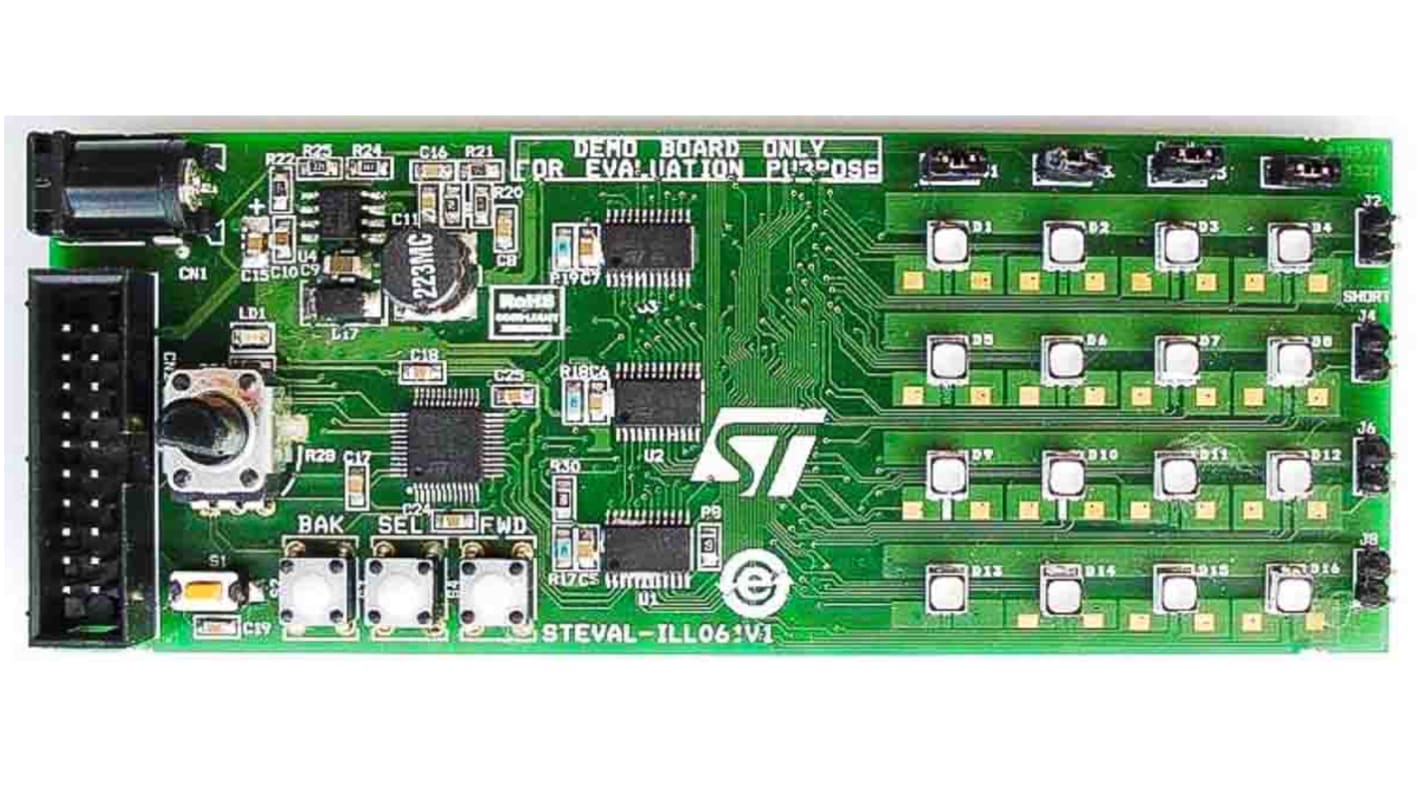

The STEVAL-ILL061V1 is a high brightness RGB LED array driver system evaluation board with local dimming and diagnostics based on LED1642GW independent PWM LED driver controlled through an STM32 microcontroller SPI interface. An ST L7981 DC-DC converter provides the voltages/power for overall functioning of the board.
High brightness 4x4 RGB LED matrix
Complete hardware and software package
Various preconfigured and programmable patterns
Open/short error simulation and real-time detection
6 to 28 V DC polarity-independent power supply
GUI for advanced driver configuration
Complete hardware and software package
Various preconfigured and programmable patterns
Open/short error simulation and real-time detection
6 to 28 V DC polarity-independent power supply
GUI for advanced driver configuration
