STMicroelectronics STEVAL-ILL051V2, STEVAL LED Driver Evaluation Board for LED2000 for LED Driver

View all LED Development Tools
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
196-1797
Mfr. Part No.:
STEVAL-ILL051V2
Brand:
STMicroelectronics
Find similar products by selecting one or more attributes.
Select all

Brand

STMicroelectronics

LED Technology

LED Driver

Kit Classification

Evaluation Board

For Use With

LED Driver

Featured Device

LED2000

Kit Name

STEVAL

COO (Country of Origin):
IT

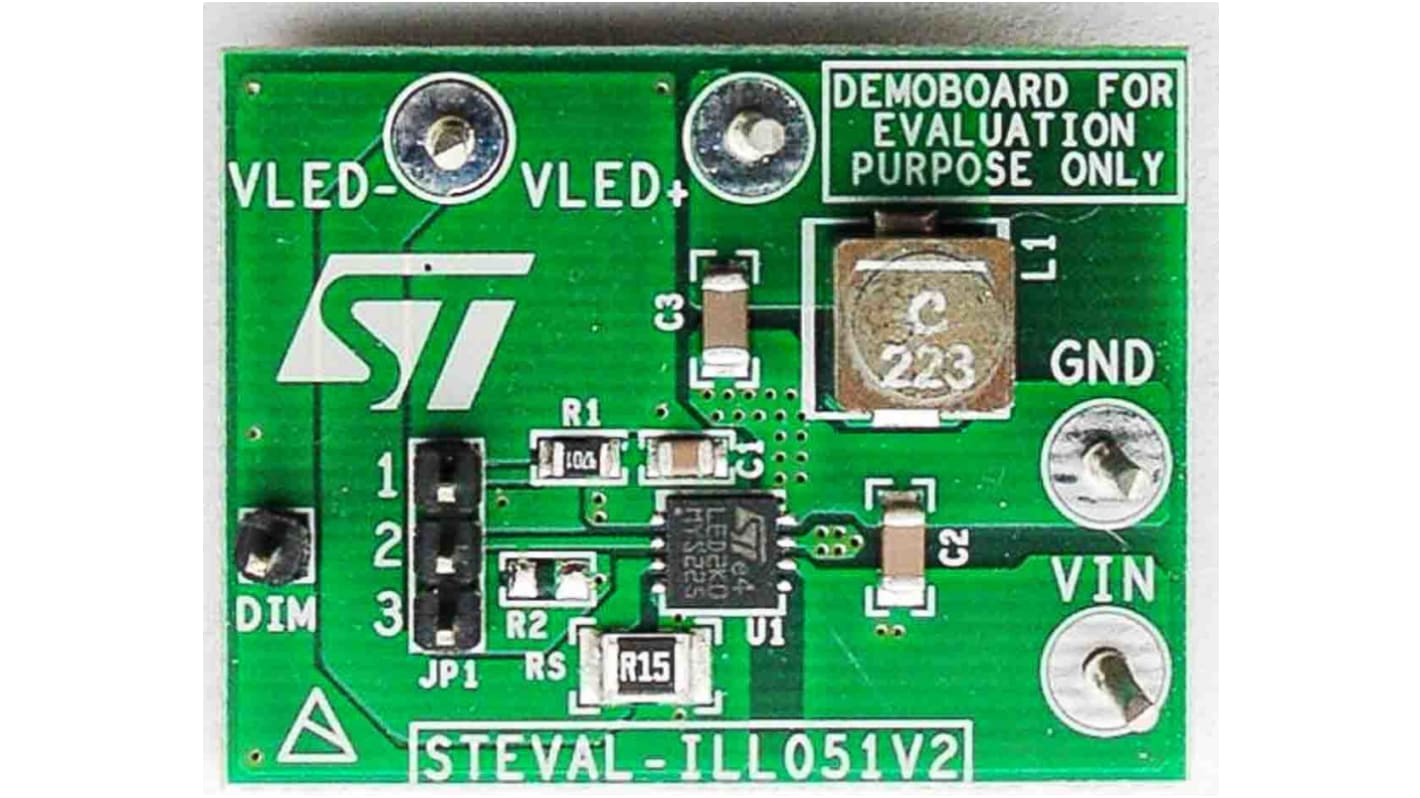

The purpose of the STEVAL-ILL051V2 evaluation board is to aid in the evaluation of the LED2000, an 850 kHz fixed switching frequency monolithic step-down DC-DC converter. The LED2000 is designed to operate as a precise constant current source with an adjustable current capability up to 3 A DC. The embedded PWM dimming circuitry features LED brightness control. The regulated output current is set by connecting a sensing resistor to the feedback pin.
The size of the overall application is minimized thanks to the high switching frequency and ceramic output capacitor compatibility.
The device is fully protected against overheating, overcurrent and output short-circuit.

3.0 V to 18 V operating input voltage range
850 kHz fixed switching frequency
100 mV typical current sense voltage drop
PWM dimming
±7% output current accuracy
Synchronous rectification
Internal current limiting
Thermal shutdown
