Infineon BCR320UHWLEDBOARDTOBO1, 24 V LED Driver Demonstration Board for BCR320U
- RS Stock No.:
- 122-2436
- Mfr. Part No.:
- BCR320UHWLEDBOARDTOBO1
- Brand:
- Infineon
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 122-2436
- Mfr. Part No.:
- BCR320UHWLEDBOARDTOBO1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Infineon | |
LED Technology | LED Driver | |
Kit Classification | Demonstration Board | |
Featured Device | BCR320U | |
Kit Name | 24 V | |
Select all | ||
---|---|---|
Brand Infineon | ||
LED Technology LED Driver | ||
Kit Classification Demonstration Board | ||
Featured Device BCR320U | ||
Kit Name 24 V | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- SG
Infineon 24V LED Evaluation Board for BCR320U LED driver

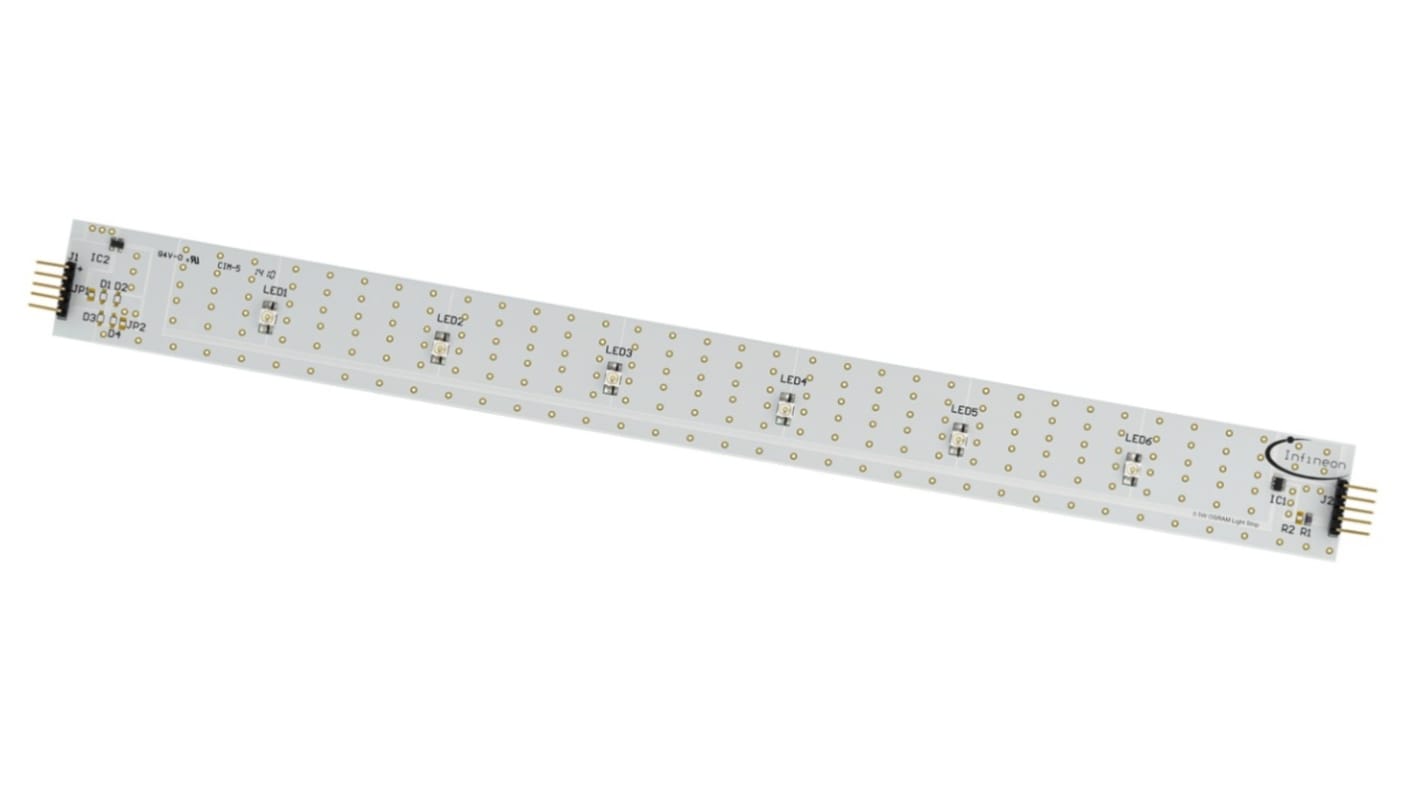

The BCR320U HW LED Board is a demo board for the BCR320U/BCR321U LED driving 6 x 0.5W LEDs in series. The typical driving current is 150 mA but it can be adjusted up to maximum of 250 mA. The design includes the foot print for 4 discrete Schottky Diodes for more flexibility.
Typical applications are LED stripe lights, commercial or residential LED lighting, automotive interior and exterior LED lighting.
Typical applications are LED stripe lights, commercial or residential LED lighting, automotive interior and exterior LED lighting.
Features
Homogenous light output in different LED strings
Easy to implement with low component count
Flexibility to adjust the driving current from 10 mA up to 250 mA
Direct microcontroller interface for PWM dimming
Negative thermal coefficient protecting lifetime of LEDs
High-power dissipation capability
Power supply up to 24 V
Easy to implement with low component count
Flexibility to adjust the driving current from 10 mA up to 250 mA
Direct microcontroller interface for PWM dimming
Negative thermal coefficient protecting lifetime of LEDs
High-power dissipation capability
Power supply up to 24 V
