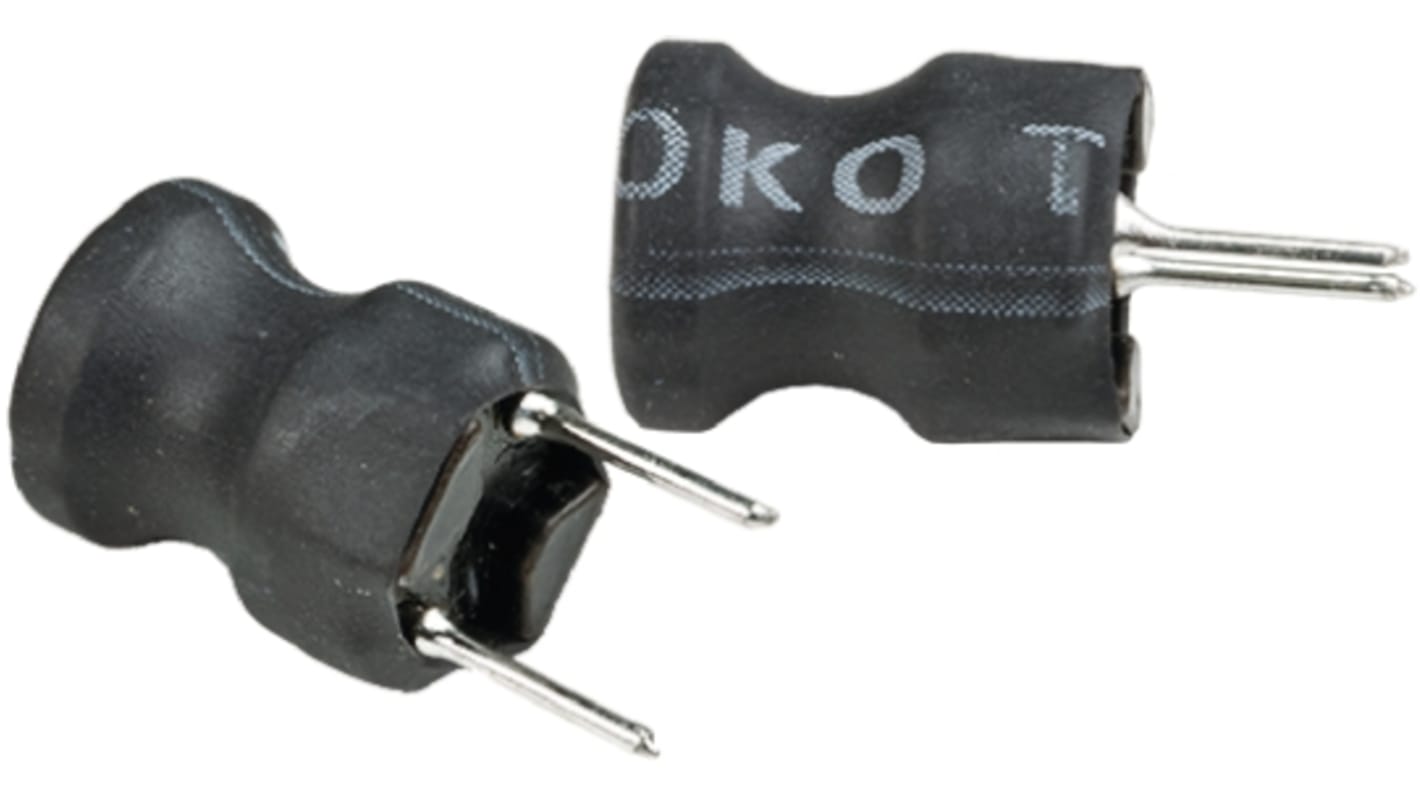

Toko 68 μH ±10% Radial Inductor, Max SRF:4.9MHz, 700mA Idc, 220mΩ Rdc, 8RBH2
- RS Stock No.:
- 724-7124
- Mfr. Part No.:
- 822LY-680K
- Brand:
- Toko
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 724-7124
- Mfr. Part No.:
- 822LY-680K
- Brand:
- Toko
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toko | |
| Inductance | 68 μH | |
| Maximum DC Current | 700mA | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 220mΩ | |
| Tolerance | ±10% | |
| Diameter | 8.5mm | |
| Height | 11mm | |
| Dimensions | 8.5 (Dia.) x 11mm | |
| Maximum Self Resonant Frequency | 4.9MHz | |
| Lead Pitch | 5mm | |
| Series | 8RBH2 | |
| Terminal Type | Radial Leaded | |
| Lead Diameter | 0.61mm | |
Select all | ||
|---|---|---|
Brand Toko | ||
Inductance 68 μH | ||
Maximum DC Current 700mA | ||
Mounting Type Radial | ||
Maximum DC Resistance 220mΩ | ||
Tolerance ±10% | ||
Diameter 8.5mm | ||
Height 11mm | ||
Dimensions 8.5 (Dia.) x 11mm | ||
Maximum Self Resonant Frequency 4.9MHz | ||
Lead Pitch 5mm | ||
Series 8RBH2 | ||
Terminal Type Radial Leaded | ||
Lead Diameter 0.61mm | ||
