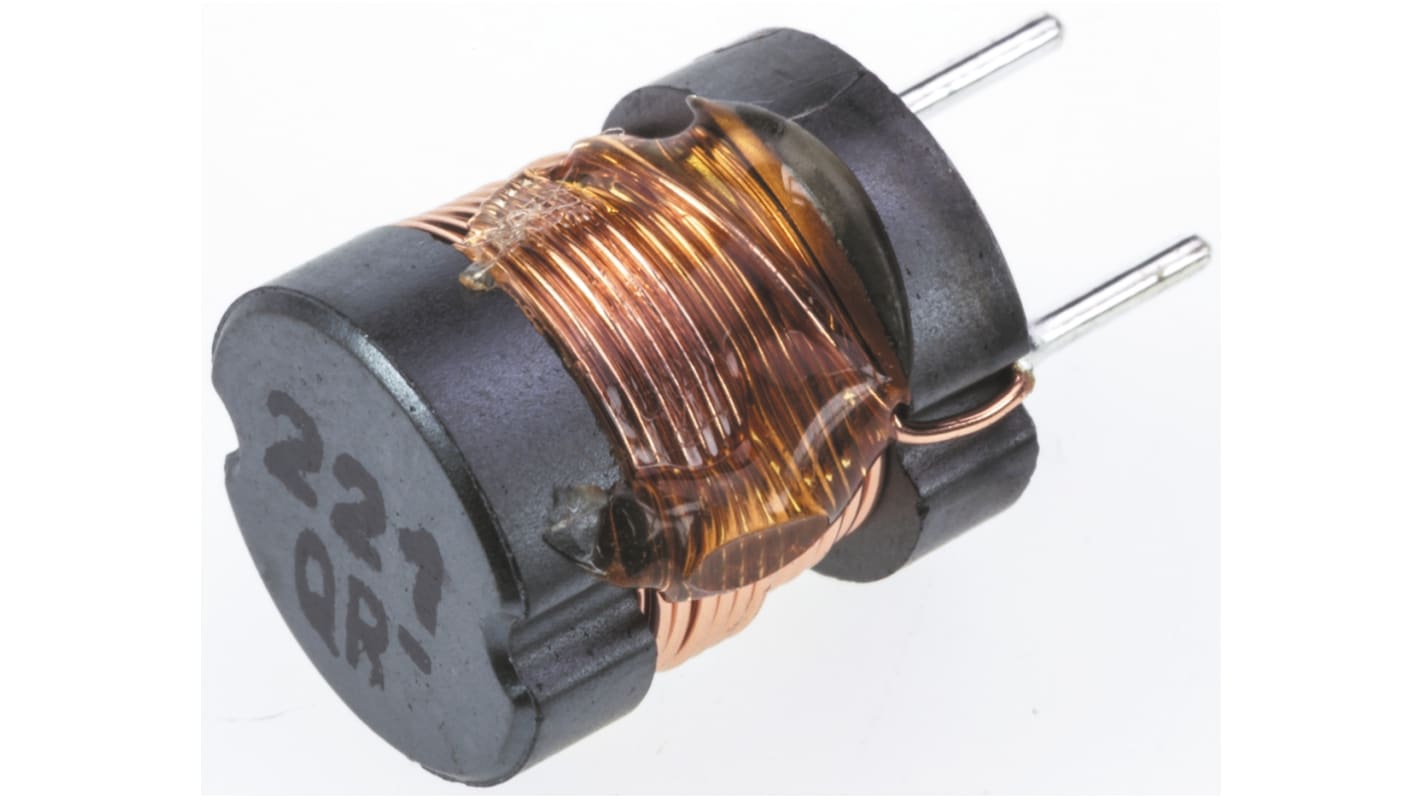

Panasonic 220 μH ±10% Leaded Inductor, 1.1A Idc, 210mΩ Rdc, ELC10D
- RS Stock No.:
- 675-5201
- Mfr. Part No.:
- ELC10D221E
- Brand:
- Panasonic
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 675-5201
- Mfr. Part No.:
- ELC10D221E
- Brand:
- Panasonic
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Inductance | 220 μH | |
| Maximum DC Current | 1.1A | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 210mΩ | |
| Tolerance | ±10% | |
| Diameter | 13mm | |
| Length | 13mm | |
| Depth | 10mm | |
| Height | 15mm | |
| Dimensions | 13 (Dia.) x 15mm | |
| Lead Pitch | 5mm | |
| Series | ELC10D | |
| Terminal Type | Through Hole | |
| Lead Diameter | 0.8mm | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Inductance 220 μH | ||
Maximum DC Current 1.1A | ||
Mounting Type Radial | ||
Maximum DC Resistance 210mΩ | ||
Tolerance ±10% | ||
Diameter 13mm | ||
Length 13mm | ||
Depth 10mm | ||
Height 15mm | ||
Dimensions 13 (Dia.) x 15mm | ||
Lead Pitch 5mm | ||
Series ELC10D | ||
Terminal Type Through Hole | ||
Lead Diameter 0.8mm | ||
