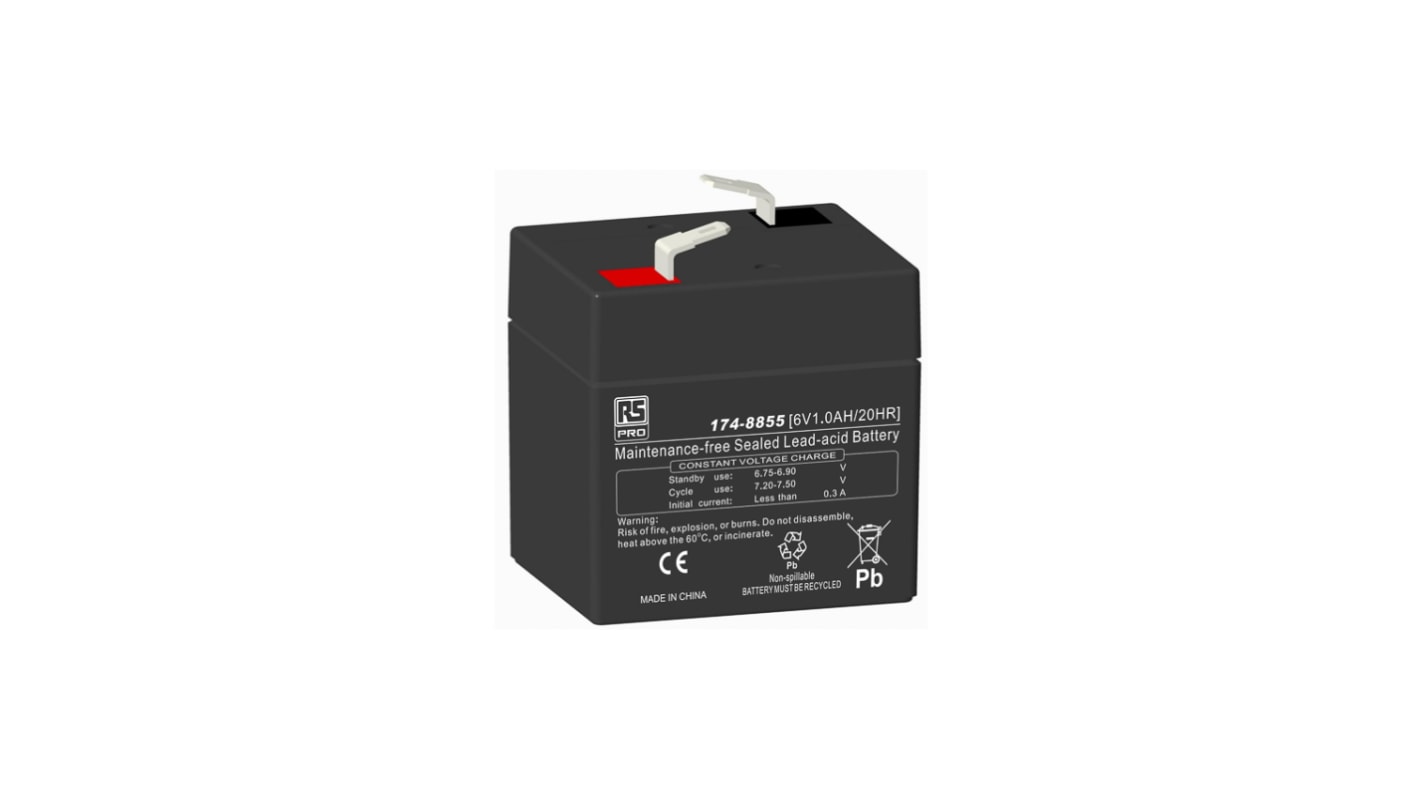

RS PRO 6 V, T1 Sealed Lead Acid Battery, 1 Ah, 65mm x 99.5 mm x 151 mm
- RS Stock No.:
- 174-8855
- Brand:
- RS PRO
Subtotal (1 box of 1 unit)*
£12.02
(exc. VAT)
£14.42
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 212 unit(s) shipping from 17 August 2026
- Plus 19 unit(s) shipping from 17 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box |
|---|---|
| 1 + | £12.02 |
*price indicative
- RS Stock No.:
- 174-8855
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Battery Capacity | 1Ah | |
| Product Type | Sealed Lead Acid Battery | |
| Nominal Voltage | 6V | |
| Construction | AGM | |
| Flame Resistant | No | |
| Designed for Cyclic Application | No | |
| Eurobat Classification | 3 to 5 Years | |
| Designed for High Rate Application | Yes | |
| Termination Type | T1 | |
| Minimum Operating Temperature | 20°C | |
| Maximum Operating Temperature | 50°C | |
| Series | RS PRO | |
| Depth | 151mm | |
| Weight | 250g | |
| Width | 65mm | |
| Standards/Approvals | No | |
| Height | 99.5mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Battery Capacity 1Ah | ||
Product Type Sealed Lead Acid Battery | ||
Nominal Voltage 6V | ||
Construction AGM | ||
Flame Resistant No | ||
Designed for Cyclic Application No | ||
Eurobat Classification 3 to 5 Years | ||
Designed for High Rate Application Yes | ||
Termination Type T1 | ||
Minimum Operating Temperature 20°C | ||
Maximum Operating Temperature 50°C | ||
Series RS PRO | ||
Depth 151mm | ||
Weight 250g | ||
Width 65mm | ||
Standards/Approvals No | ||
Height 99.5mm | ||
RoHS Status: Exempt
Critical Standby battery back-up applications where the energy is stored in reserve in batteries and ready for use whenever needed. Typical critical battery back-up applications are UPS (High rate applications), Telecom (long duration float application), Utility Switchgear (step loads, peak power shaving, frequency regulation, and distributed energy applications), Renewable Energy (cyclic solar/wind energy storage), Emergency Lighting (float applications), Industrial Controlled Power, Railway & Aircraft signal back-up support.
All purpose
Uninterruptable Power Supply (UPS)
Electric Power System (EPS)
Emergency backup power supply
Emergency light
Railway signal
Aircraft signal
Alarm and security system
Electronic apparatus and equipment
Communication power supply
DC power supply
Auto control system
Standards
UL94-HB
