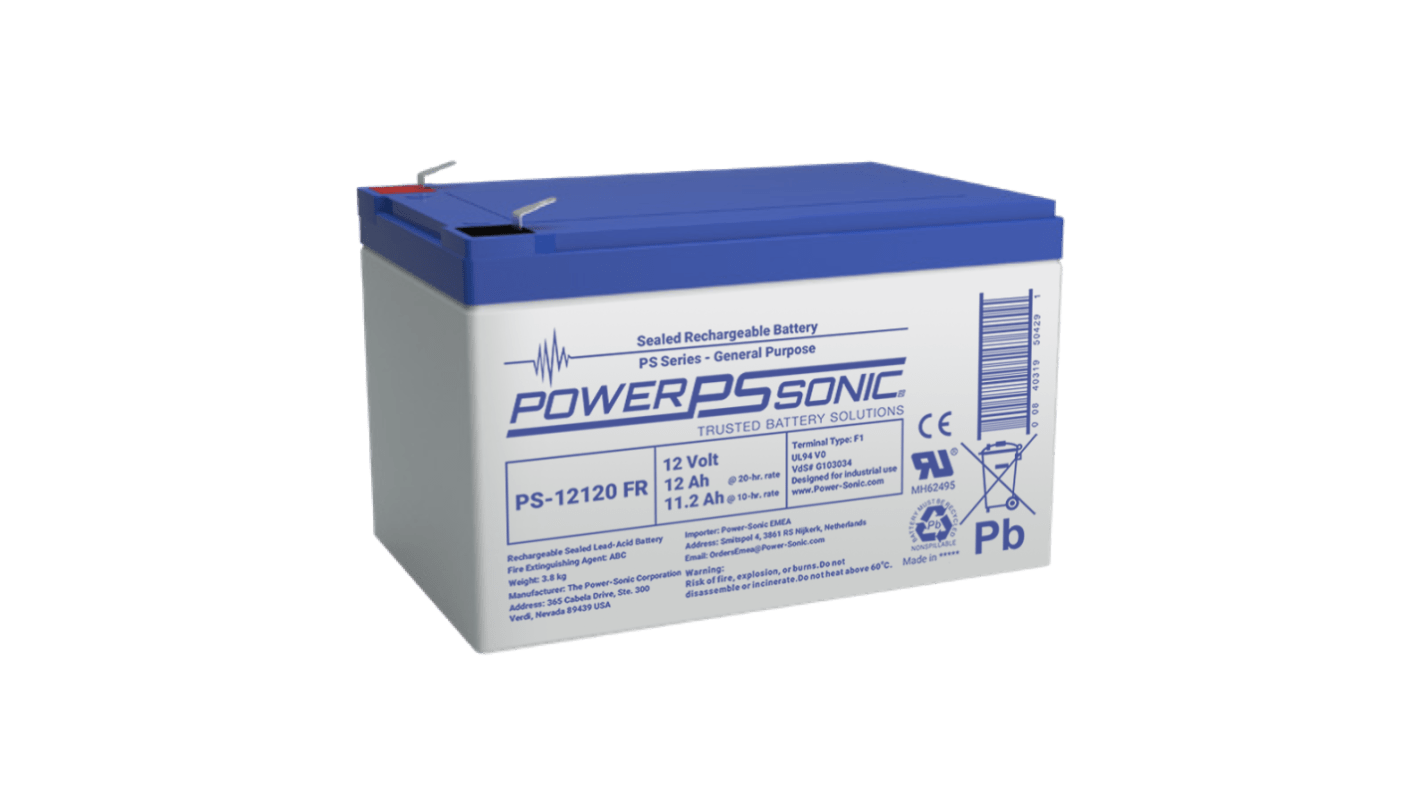

Power Sonic 12 V, Faston F1 Sealed Lead Acid Battery, 12.00 Ah, 98mm x 3.74 in
- RS Stock No.:
- 688-351
- Mfr. Part No.:
- PS-12120VDS F1 FR/1
- Brand:
- Power Sonic
Subtotal (1 unit)*
£47.66
(exc. VAT)
£57.19
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 19 unit(s) shipping from 29 June 2026
- Plus 47 unit(s) shipping from 10 August 2026
- Plus 5 unit(s) shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £47.66 |
*price indicative
- RS Stock No.:
- 688-351
- Mfr. Part No.:
- PS-12120VDS F1 FR/1
- Brand:
- Power Sonic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Power Sonic | |
| Battery Capacity | 12.00Ah | |
| Product Type | Sealed Lead Acid Battery | |
| Nominal Voltage | 12V | |
| Construction | Pure Lead | |
| Flame Resistant | Yes | |
| Application | Medical, Security, General Purpose, Emergency Lighting, Fire | |
| Termination Type | Faston F1 | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 50°C | |
| Weight | 3.24kg | |
| Standards/Approvals | ISO9001:2015, VdS 2102en, IEC 60896-21/22, UL 1989, EU 2023/1542, NCP | |
| Width | 98mm | |
| Series | PS | |
| Height | 3.74in | |
| Select all | ||
|---|---|---|
Brand Power Sonic | ||
Battery Capacity 12.00Ah | ||
Product Type Sealed Lead Acid Battery | ||
Nominal Voltage 12V | ||
Construction Pure Lead | ||
Flame Resistant Yes | ||
Application Medical, Security, General Purpose, Emergency Lighting, Fire | ||
Termination Type Faston F1 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 50°C | ||
Weight 3.24kg | ||
Standards/Approvals ISO9001:2015, VdS 2102en, IEC 60896-21/22, UL 1989, EU 2023/1542, NCP | ||
Width 98mm | ||
Series PS | ||
Height 3.74in | ||
RoHS Status: Exempt
The Power Sonic sealed lead acid battery has been specifically designed for general purpose and standby applications. The 12V 12.00Ah battery offers excellent performance in a wide range of applications including security and fire protection systems, medical devices, emergency lighting and UPS systems.
Power and volume ratio yielding unrivalled energy density
Valve regulated, maintenance free spill proof construction
Rugged impact resistant ABS case and cover
5 year design life
