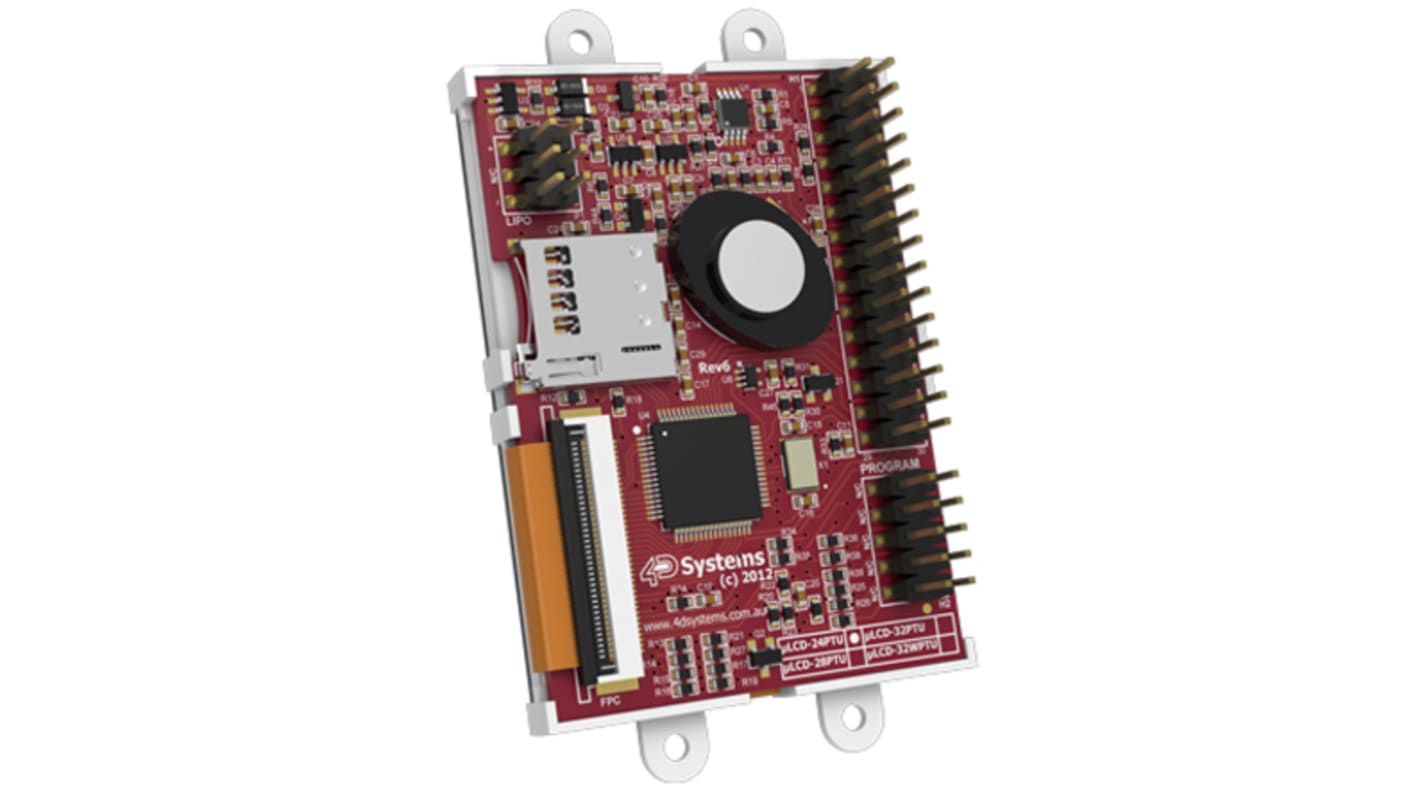

4D Systems uLCD-24PTU TFT LCD Colour Display / Touch Screen, 2.4in, 240 x 320pixels
- RS Stock No.:
- 902-8640
- Mfr. Part No.:
- uLCD-24PTU
- Brand:
- 4D Systems
Bulk discount available
Subtotal (1 unit)*
£44.84
(exc. VAT)
£53.81
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | £44.84 |
| 5 - 9 | £42.74 |
| 10 - 24 | £39.07 |
| 25 + | £36.96 |
*price indicative
- RS Stock No.:
- 902-8640
- Mfr. Part No.:
- uLCD-24PTU
- Brand:
- 4D Systems
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 4D Systems | |
| Diagonal Display Size | 2.4in | |
| Interface Type | I2C, TTL | |
| Resolution | 240 x 320pixels | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 36.72 x 48.96mm | |
| Supply Voltage | 5.5 V | |
| Touch Screen Type | Resistive | |
| Backlight Type | LED | |
| Display Mode | Transmissive | |
| AC or DC Input Voltage | dc | |
| Dimensions | 74.75 x 44.7 x 15.9mm | |
| Display Matrix Technology | TFT | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | +60°C | |
| Brightness | 150cd/m² | |
| Width | 44.7mm | |
| Viewing Area Height | 48.96mm | |
| Operating Temperature Range | -10 → +60°C | |
| Viewing Area Width | 36.72mm | |
| Number of Colours | 65,536 | |
| Height | 74.75mm | |
| Current Rating | 220mA | |
| Contrast Ratio | 250:1 | |
| Response Time | 30ms | |
| Depth | 15.9mm | |
| Standards Met | CE, RoHS Compliant | |
| Select all | ||
|---|---|---|
Brand 4D Systems | ||
Diagonal Display Size 2.4in | ||
Interface Type I2C, TTL | ||
Resolution 240 x 320pixels | ||
Touch Screen Yes | ||
Viewing Area Dimensions 36.72 x 48.96mm | ||
Supply Voltage 5.5 V | ||
Touch Screen Type Resistive | ||
Backlight Type LED | ||
Display Mode Transmissive | ||
AC or DC Input Voltage dc | ||
Dimensions 74.75 x 44.7 x 15.9mm | ||
Display Matrix Technology TFT | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +60°C | ||
Brightness 150cd/m² | ||
Width 44.7mm | ||
Viewing Area Height 48.96mm | ||
Operating Temperature Range -10 → +60°C | ||
Viewing Area Width 36.72mm | ||
Number of Colours 65,536 | ||
Height 74.75mm | ||
Current Rating 220mA | ||
Contrast Ratio 250:1 | ||
Response Time 30ms | ||
Depth 15.9mm | ||
Standards Met CE, RoHS Compliant | ||
