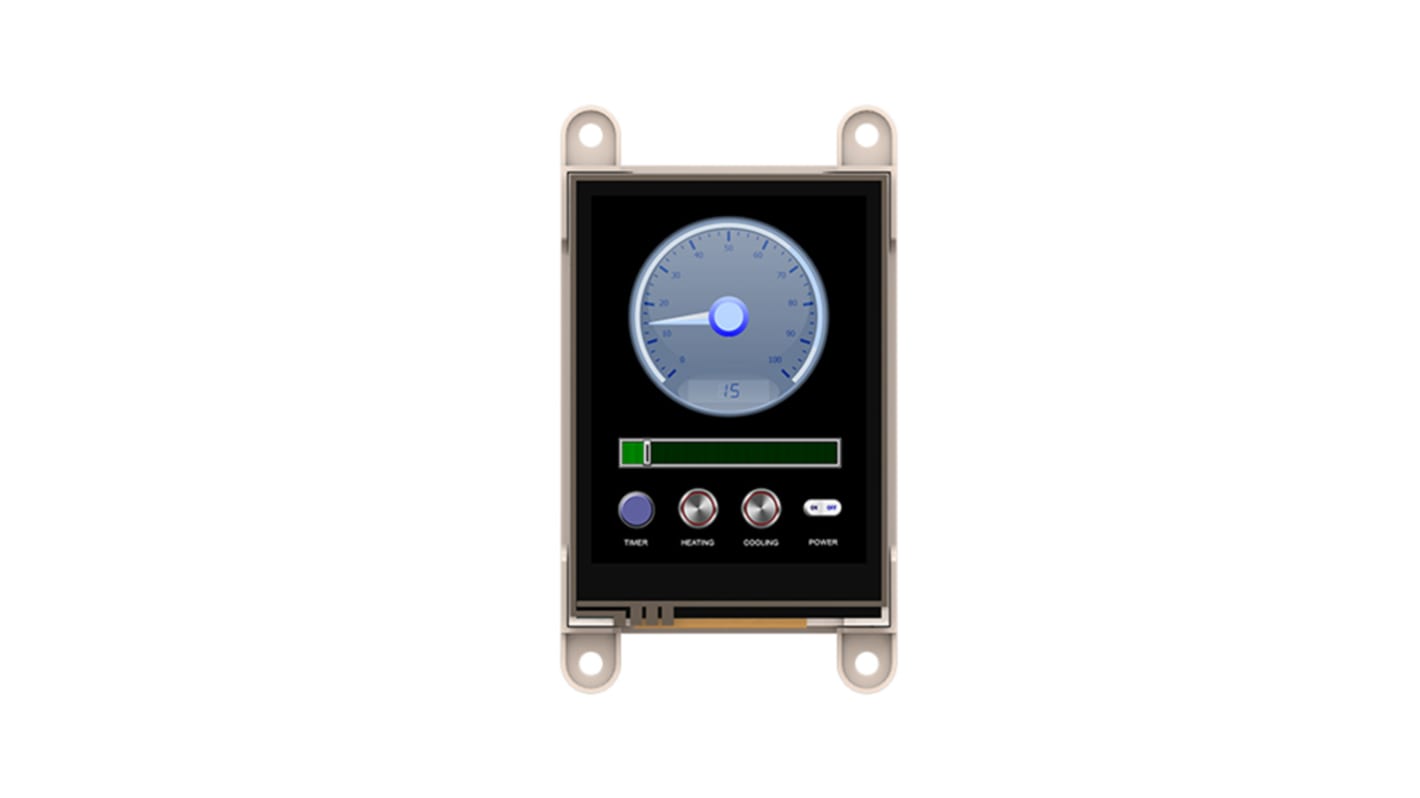

4D Systems gen4-uLCD-24PT-AR TFT LCD Display Module / Touch Screen, 240 x 320pixels

  • RS Stock No. 175-7744
  • Mfr. Part No. gen4-uLCD-24PT-AR
  • Brand 4D Systems
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): AU
Product Details

4D Systems LCD Display Module

The 4D Systems LCD 2.4in display module with an integrated 4-wire resistive touch panel is designed specifically for ease of integration and use, with careful consideration for space requirements and functionality. This module is embedded with PICASO processor and hardware interface for Arduino. It has 240 x 320 pixels resolution and 182cd/m² brightness. The display module offers an active viewing area with a width of 48.96mm and height of 36.72mm.

Features and Benefits

• Built-in extensive 4DGL graphics and system library functions
• Dedicated PWM audio pin driven by WAV files from micro-SD card and for sound generation for an external amplifier
• Display full colour images, animation, icons and video clips
• DOS compatible file access (FAT16 format) as well as low level access to card memory
• On-board latch type micro-SD memory card connector for multimedia storage and data logging purposes
• RGB 65K true to life colours
• Universal Intelligent LCD-TFT display module powered by the Picaso processor

Certifications

• CE compliant
• REACH compliant

Specifications
Attribute Value
Resolution 240 x 320pixels
Touch Screen Yes
Viewing Area Dimensions 48.96 x 36.72mm
Touch Screen Type Resistive
Supply Voltage 4 → 5.5 V
Backlight Type LCD
Display Mode Transmissive
AC or DC Input Voltage Dc
Dimensions 44.8 x 7.2 x 78.4mm
Display Matrix Technology TFT
Minimum Operating Temperature -20°C
Maximum Operating Temperature +70°C
Height 78.4mm
Width 44.8mm
Depth 7.2mm
Power Supply Included Yes
Current Rating 150mA
Display Type TFT LCD
Contrast Ratio 250:1
Viewing Area Height 48.96mm
Brightness 182cd/m²
Operating Temperature Range -20 → +70°C
Voltage Rating 5.5V
Viewing Area Width 36.72mm
Series gen4
7 In stock - FREE next working day delivery available
Price Each
£ 30.19
(exc. VAT)
£ 36.23
(inc. VAT)
Units
Per unit
1 - 4
£30.19
5 - 9
£28.29
10 - 24
£26.63
25 - 49
£25.70
50 +
£25.07
