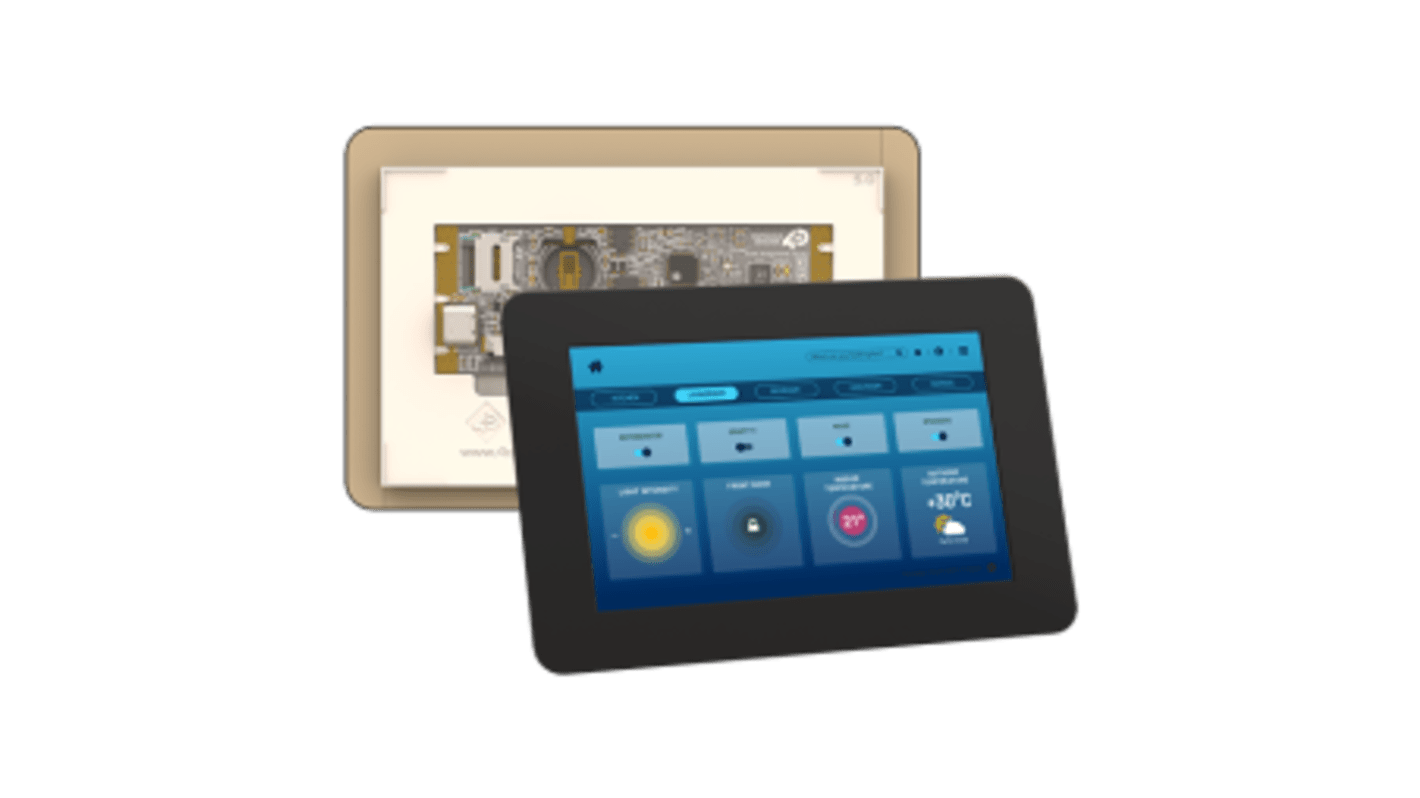

4D Systems gen4-ESP32-50CT-CLB LCD Colour Display Touch Screen, 3.5 in, 800 x 480 pixel
- RS Stock No.:
- 649-340
- Mfr. Part No.:
- gen4-ESP32-50CT-CLB
- Brand:
- 4D Systems
Subtotal (1 unit)*
£86.50
(exc. VAT)
£103.80
(inc. VAT)
Add 1 unit to get free delivery
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £86.50 |
*price indicative
- RS Stock No.:
- 649-340
- Mfr. Part No.:
- gen4-ESP32-50CT-CLB
- Brand:
- 4D Systems
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 4D Systems | |
| Product Type | LCD Colour Display | |
| Diagonal Display Size | 3.5in | |
| Interface Type | FFC | |
| Screen Resolution | 800 x 480 pixel | |
| Current | 326mA | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 108.00 x 64.80 mm | |
| Touch Screen Type | Capacitive | |
| Backlight Type | 3x6 LEDs | |
| Minimum Supply Voltage | 4V | |
| Maximum Supply Voltage | 6V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 65°C | |
| Standards/Approvals | RoHS, REACH | |
| Height | 93.8mm | |
| Depth | 13.4mm | |
| Width | 140.7 mm | |
| Brightness | 540cd/m² | |
| Contrast Ratio | 1000:1 | |
| Display Type | TFT LCD | |
| Series | gen4-ESP32-RGB | |
| Select all | ||
|---|---|---|
Brand 4D Systems | ||
Product Type LCD Colour Display | ||
Diagonal Display Size 3.5in | ||
Interface Type FFC | ||
Screen Resolution 800 x 480 pixel | ||
Current 326mA | ||
Touch Screen Yes | ||
Viewing Area Dimensions 108.00 x 64.80 mm | ||
Touch Screen Type Capacitive | ||
Backlight Type 3x6 LEDs | ||
Minimum Supply Voltage 4V | ||
Maximum Supply Voltage 6V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 65°C | ||
Standards/Approvals RoHS, REACH | ||
Height 93.8mm | ||
Depth 13.4mm | ||
Width 140.7 mm | ||
Brightness 540cd/m² | ||
Contrast Ratio 1000:1 | ||
Display Type TFT LCD | ||
Series gen4-ESP32-RGB | ||
- COO (Country of Origin):
- AU
The 4D Systems Intelligent Display Module is designed and manufactured by 4D Systems, offering an RGB interface between the ESP32-S3R8 processor and 800x480 resolution TFT LCD displays. The ESP32-S3R8 processor provides multiple GPIOs, including UART, SPI, I2C, PWM, and analog functionality, along with interfaces for a real-time clock, Quad SPI flash, microSD card, 8-bit IO expander, and native USB-C. The user interface to the gen4-ESP32 series features a 30-pin FPC/ZIF socket, designed for a 30-way 0.5mm pitch FFC cable, enabling easy connection to applications, motherboards, or accessory boards for enhanced functionality.
16MB of External Quad SPI Flash
8MB of Internal Octal SPI PSRAM
3M Adhesive around perimeter of Cover Lens Bezel for mounting the CTP-CLB model
RoHS and REACH compliant
CE/EMC and UKCA compliance pending
PCB is UL 94V-0 Flammability Rated
