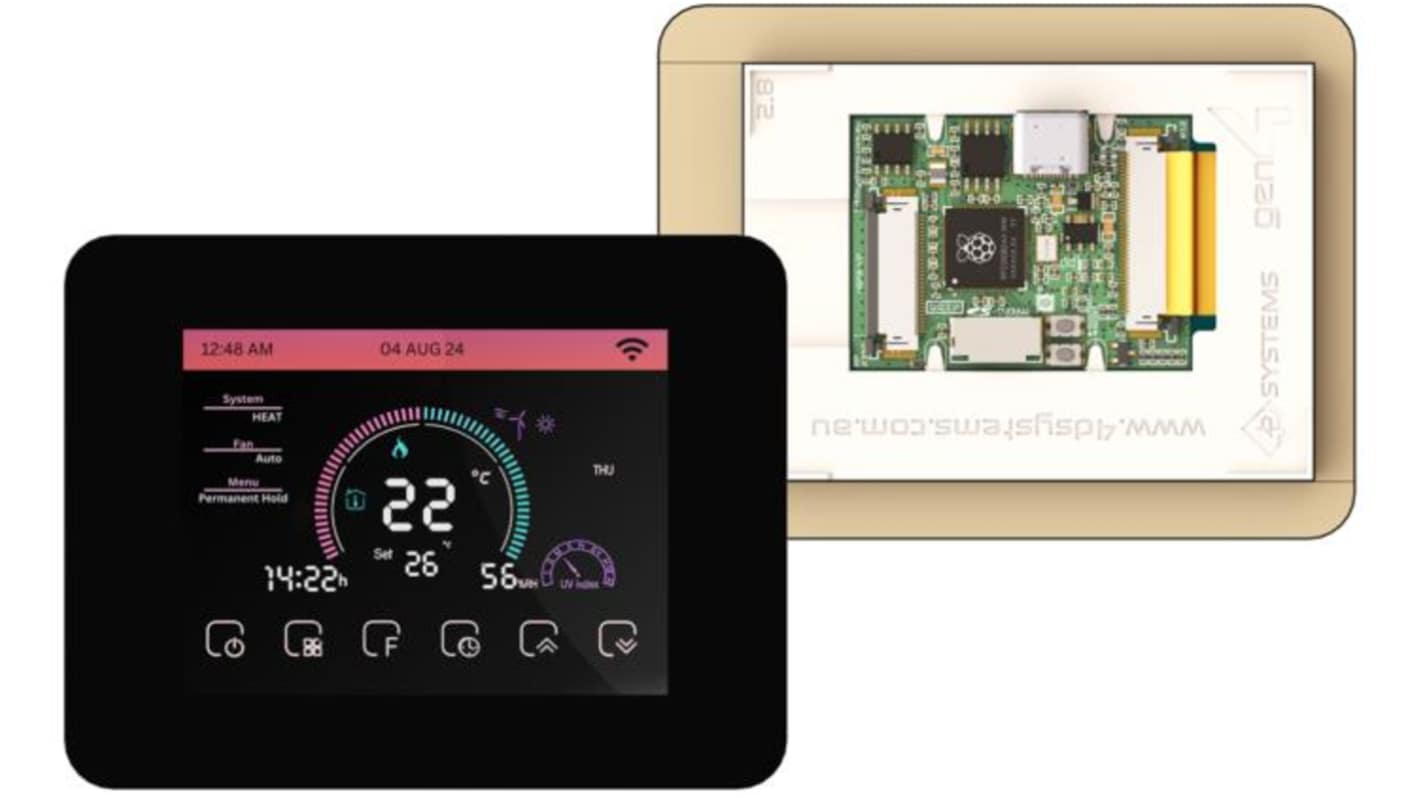

4D Systems gen4-RP2350-28CT-CLB LCD Colour Display Touch Screen, 3.5 in, 240 x 320 pixel

View all LCD Colour Displays
Bulk discount available

Subtotal (1 unit)*

£44.38

(exc. VAT)

£53.26

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£44.38
5 +£41.72

*price indicative

RS Stock No.:
649-280
Mfr. Part No.:
gen4-RP2350-28CT-CLB
Brand:
4D Systems
Find similar products by selecting one or more attributes.
Select all

Brand

4D Systems

Diagonal Display Size

3.5in

Product Type

LCD Colour Display

Interface Type

FFC

Screen Resolution

240 x 320 pixel

Current

150mA

Touch Screen

Yes

Viewing Area Dimensions

57.60 x 43.20 mm

Touch Screen Type

Capacitive

Backlight Type

1x4 LEDs

Minimum Supply Voltage

4V

Maximum Supply Voltage

6V

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

65°C

Height

58.7mm

Depth

12.4mm

Width

79.0 mm

Standards/Approvals

RoHS, REACH

Brightness

280cd/m²

Contrast Ratio

800:1

Series

gen4-RP2350-MCU

Display Type

TFT LCD

COO (Country of Origin):
AU
The 4D Systems Intelligent Display Module is designed and manufactured by 4D Systems, offering an MCU-16 (8080) interface between the RP2350B processor and TFT LCD displays. The RP2350B processor provides multiple GPIOs, including UART, SPI, I2C, PWM, and analog functionality, along with interfaces for Quad SPI flash, microSD card, and native USB-C. The user interface to the gen4-RP2350 series features a 30-pin FPC/ZIF socket, designed for a 30-way 0.5mm pitch FFC cable, enabling easy connection to applications, motherboards, or accessory boards for enhanced functionality.

16MB of External quad SPI Flash

8MB of external quad SPI PSRAM

3M Adhesive around perimeter of Cover Lens Bezel for mounting the CTP-CLB model

RoHS and REACH compliant

PCB is UL 94V-0 flammability rated
