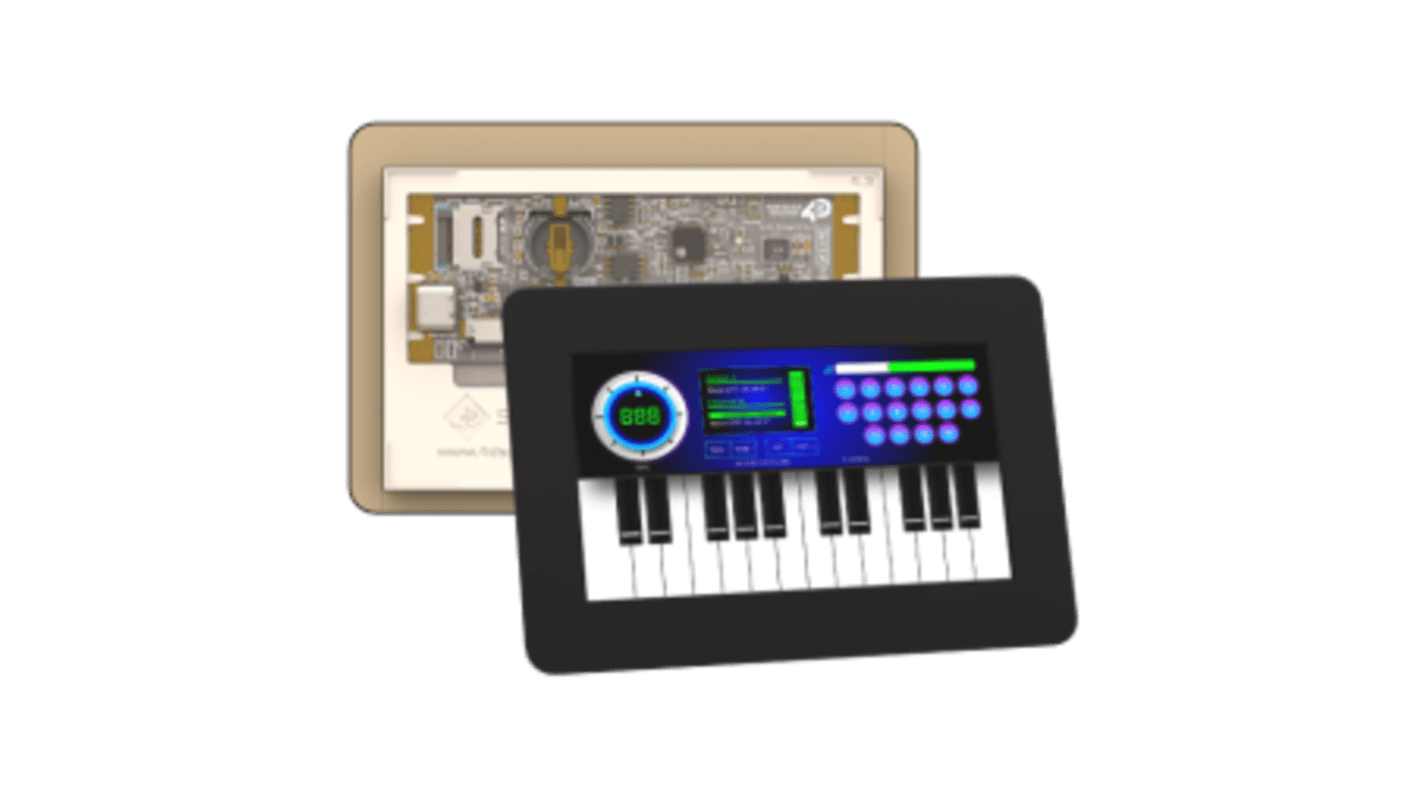

4D Systems gen4-ESP32-43CT-CLB LCD Colour Display Touch Screen, 4.3 in, 800 x 480 pixel
- RS Stock No.:
- 649-231
- Mfr. Part No.:
- gen4-ESP32-43CT-CLB
- Brand:
- 4D Systems
Subtotal (1 unit)*
£82.84
(exc. VAT)
£99.41
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £82.84 |
*price indicative
- RS Stock No.:
- 649-231
- Mfr. Part No.:
- gen4-ESP32-43CT-CLB
- Brand:
- 4D Systems
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 4D Systems | |
| Product Type | LCD Colour Display | |
| Diagonal Display Size | 4.3in | |
| Screen Resolution | 800 x 480 pixel | |
| Current | 216mA | |
| Touch Screen | Yes | |
| Viewing Area Dimensions | 95.04 x 53.86 mm | |
| Touch Screen Type | Capacitive | |
| Backlight Type | 2x5 LEDs | |
| Minimum Supply Voltage | 4V | |
| Maximum Supply Voltage | 6V | |
| Minimum Operating Temperature | -20°C | |
| Maximum Operating Temperature | 65°C | |
| Width | 123mm | |
| Height | 84.5mm | |
| Depth | 13.5mm | |
| Standards/Approvals | REACH, RoHS | |
| Brightness | 540cd/m² | |
| Contrast Ratio | 800:1 | |
| Series | gen4-ESP32-RGB | |
| Display Type | TFT LCD | |
| Select all | ||
|---|---|---|
Brand 4D Systems | ||
Product Type LCD Colour Display | ||
Diagonal Display Size 4.3in | ||
Screen Resolution 800 x 480 pixel | ||
Current 216mA | ||
Touch Screen Yes | ||
Viewing Area Dimensions 95.04 x 53.86 mm | ||
Touch Screen Type Capacitive | ||
Backlight Type 2x5 LEDs | ||
Minimum Supply Voltage 4V | ||
Maximum Supply Voltage 6V | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature 65°C | ||
Width 123mm | ||
Height 84.5mm | ||
Depth 13.5mm | ||
Standards/Approvals REACH, RoHS | ||
Brightness 540cd/m² | ||
Contrast Ratio 800:1 | ||
Series gen4-ESP32-RGB | ||
Display Type TFT LCD | ||
The 4D Systems Gen4-ESP32 intelligent display modules is designed and manufactured by 4D Systems and is available in 4.3 inch sizes. They are offered in non-touch, resistive touch, capacitive touch, and capacitive touch with cover lens bezel options. Powered by the ESP32-S3R8 processor, these modules provide multiple GPIO including UART, SPI, I2C, PWM, and analog functionality, along with interfaces for the LCD touchscreen, real time clock, Quad SPI flash, microSD card, 8-bit IO expander, and native USB-C. They feature an RGB interface between the ESP32-S3R8 processor and the 800x480 resolution TFT LCD display.
Display full colours images, animations, icons and video clips
RoHS and REACH compliant
CE and EMC and UKCA compliance pending
PCB is UL 94V-0 Flammability Rated
