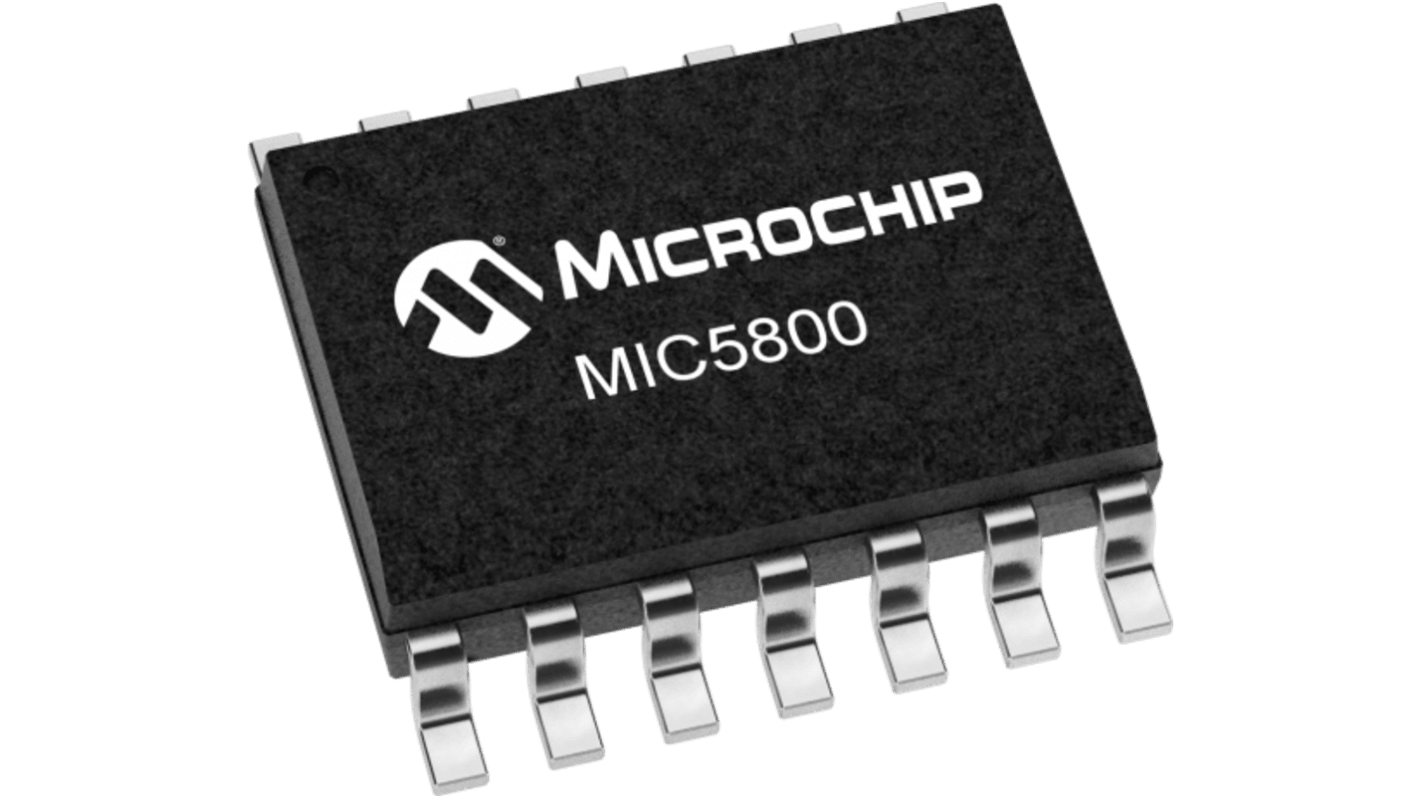

Microchip MIC5800YM-TR 8-Bit 8 Bit Latch, Current/Voltage, 14-Pin SOIC

View all Latch ICs

Subtotal (1 reel of 2500 units)*

£3,140.00

(exc. VAT)

£3,767.50

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Temporarily out of stock
  • Shipping from 21 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£1.256£3,140.00

*price indicative

RS Stock No.:
598-277
Mfr. Part No.:
MIC5800YM-TR
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

8 Bit Latch

Logic Family

CMOS

Number of Bits

8

Output Type

Current/Voltage

Package Type

SOIC

Pin Count

14

The Microchip Parallel-input latched driver is a high-voltage, high-current integrated circuit consisting of four or eight CMOS data latches, a bipolar Darlington transistor driver for each latch, and CMOS control circuitry for common functions such as CLEAR, STROBE, and OUTPUT ENABLE. The combination of bipolar and MOS technology provides an extremely low-power latch with maximum interface flexibility. This driver offers improved data input rates, typically operating at better than 5 MHz with a 5V supply, and significantly higher speeds with a 12V supply.

4.4 MHz minimum data input rate

High-voltage, high-current sink outputs

Output transient protection

Internal pull-down resistors

Low power CMOS latches
