Omron ZX1-LD50A81L 2M Laser Module 660 nm 1 mW 30 V 10 V
- RS Stock No.:
- 265-4765
- Mfr. Part No.:
- ZX1-LD50A81L 2M
- Brand:
- Omron
Subtotal (1 unit)*
£906.98
(exc. VAT)
£1,088.38
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £906.98 |
*price indicative
- RS Stock No.:
- 265-4765
- Mfr. Part No.:
- ZX1-LD50A81L 2M
- Brand:
- Omron
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Omron | |
| Product Type | Laser Module | |
| Laser Wavelength | 660nm | |
| Optical Output Power | 1mW | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 55°C | |
| Maximum Supply Voltage | 30V | |
| Standards/Approvals | FDA, IEC60825-1 | |
| Automotive Standard | No | |
| Minimum Supply Voltage | 10V | |
| Supply Current | 250mA | |
| Series | ZX1 | |
| Select all | ||
|---|---|---|
Brand Omron | ||
Product Type Laser Module | ||
Laser Wavelength 660nm | ||
Optical Output Power 1mW | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 55°C | ||
Maximum Supply Voltage 30V | ||
Standards/Approvals FDA, IEC60825-1 | ||
Automotive Standard No | ||
Minimum Supply Voltage 10V | ||
Supply Current 250mA | ||
Series ZX1 | ||
- COO (Country of Origin):
- JP

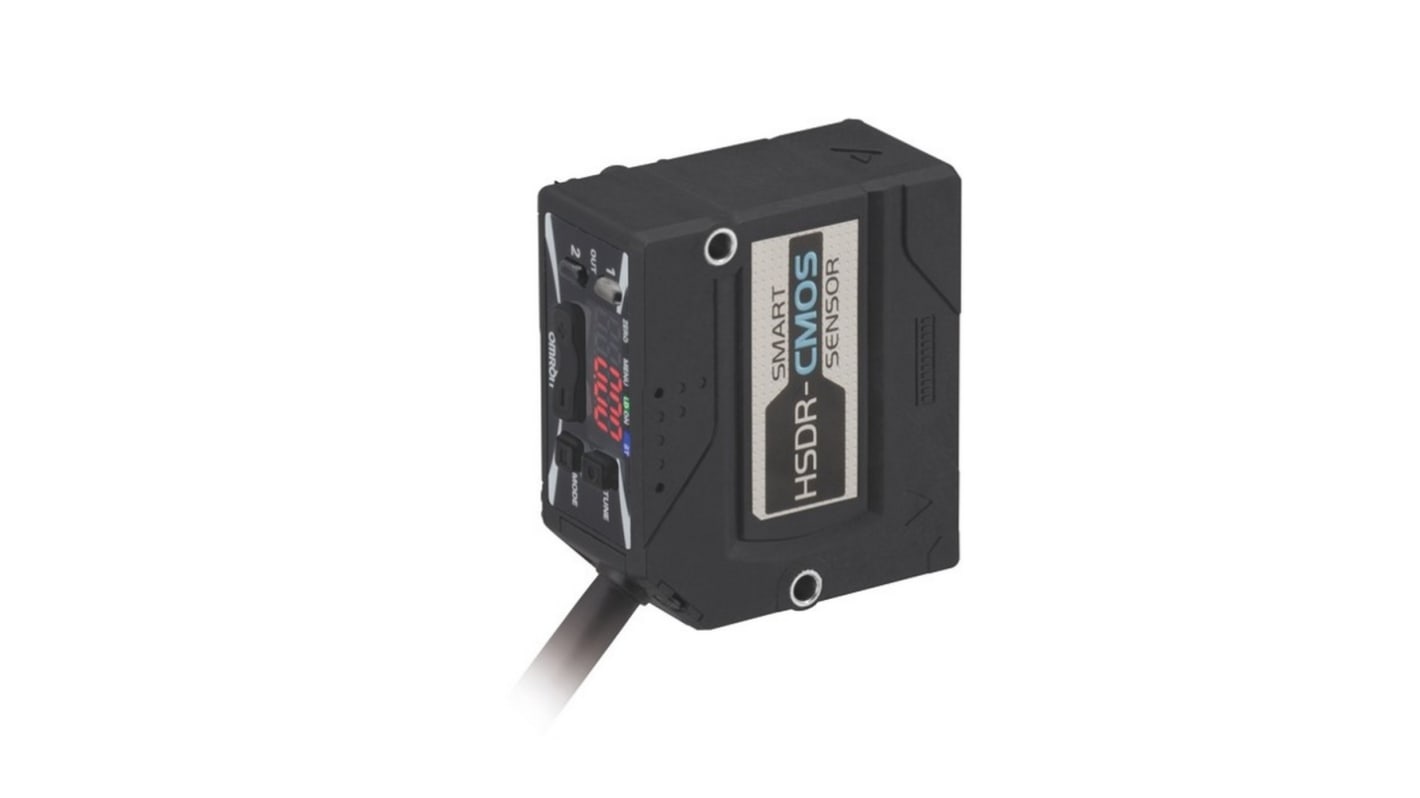

The Omron smart sensor laser sensor with built-in amplifier consists of CMOS laser sensor that’s optimum for simple measurements. It gives stable measurements for any type of work piece. Models are available with four different distance specifications.
It has long-distance model for up to 1,000 mm
Robot cable can be safely used even with moving parts
