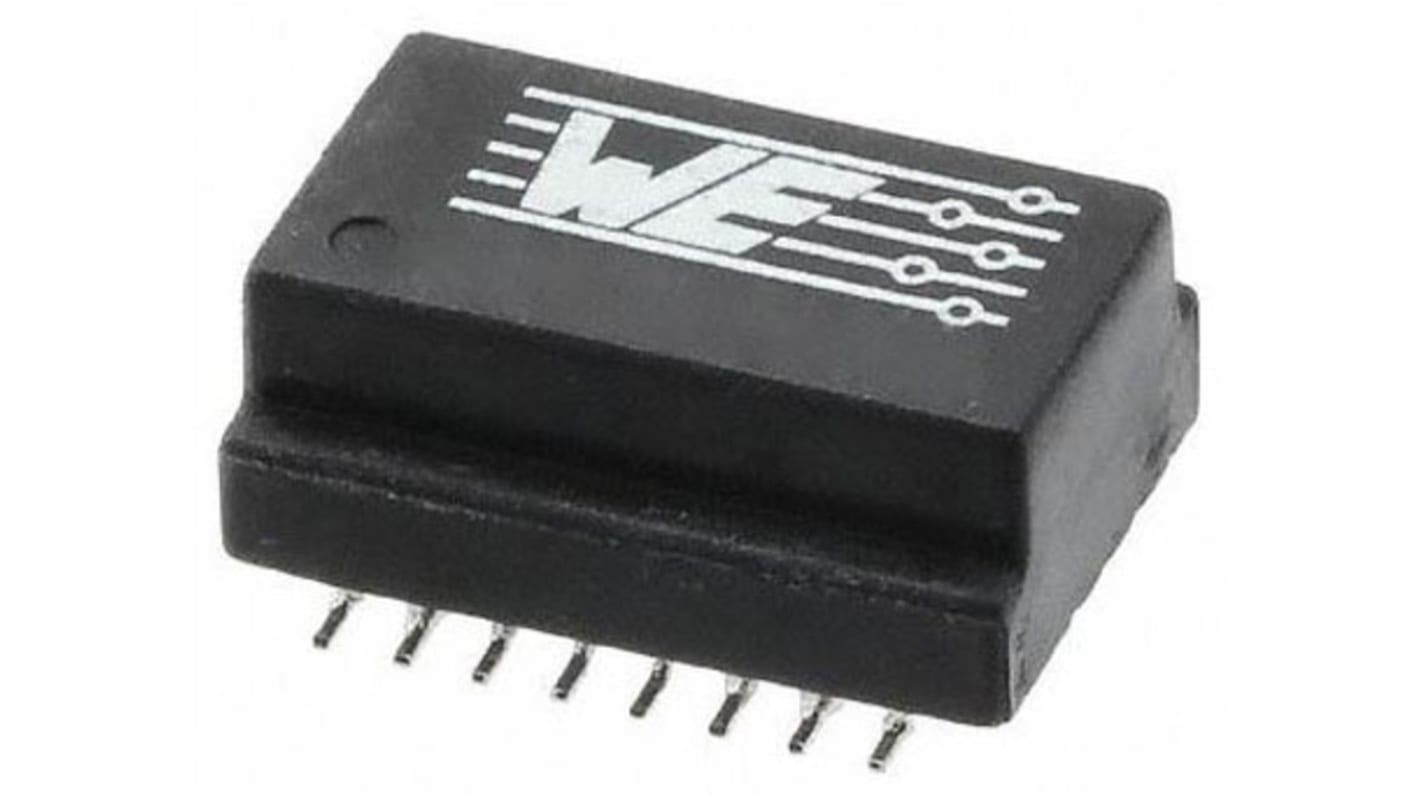

Wurth Elektronik Surface LAN Ethernet Transformer, 105 °C 12.7 mm, -40 °C 8.8 mm
- RS Stock No.:
- 135-3920
- Mfr. Part No.:
- 7490100111A
- Brand:
- Wurth Elektronik
Subtotal (1 pack of 5 units)*
£14.55
(exc. VAT)
£17.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 1,710 unit(s) shipping from 04 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £2.91 | £14.55 |
*price indicative
- RS Stock No.:
- 135-3920
- Mfr. Part No.:
- 7490100111A
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | LAN Ethernet Transformer | |
| Number of Outputs | 5 | |
| Insertion Loss | -1.1dB | |
| Mount Type | Surface | |
| Length | 12.7mm | |
| Width | 8.8 mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 105°C | |
| Turns Ratio | 1:1 | |
| Isolation Voltage | 1500V ac | |
| Supported Ethernet Standards | 10/100 Base | |
| Standards/Approvals | RoHS | |
| Termination Type | Solder | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type LAN Ethernet Transformer | ||
Number of Outputs 5 | ||
Insertion Loss -1.1dB | ||
Mount Type Surface | ||
Length 12.7mm | ||
Width 8.8 mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 105°C | ||
Turns Ratio 1:1 | ||
Isolation Voltage 1500V ac | ||
Supported Ethernet Standards 10/100 Base | ||
Standards/Approvals RoHS | ||
Termination Type Solder | ||
- COO (Country of Origin):
- CN
Wurth 10/100/1000 1 Port LAN Transformers
WE-LAN transformers from Wurth Elektronik are designed for Ethernet and PoE (Power over Ethernet) applications. Other suitable applications included 1 Gbit Ethernet, Hub, Router and Switches. WE-LAN transformers are compliant with most ICs for Ethernet applications such as AMD, Globespan, Intel and Realtek. These surface mount transformers are compliant with IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt standards.
Features
Compliant with IEEE 802.3, IEEE 802.3af and IEEE 802.3at standards
Surface Mount
Applications
Ethernet
Power over Ethernet
1 Gigabit Ethernet
Compliant with most IC’s for ethernet applications like Intel, AMD, Globespan and RealTek
Hub, Router, Switches
