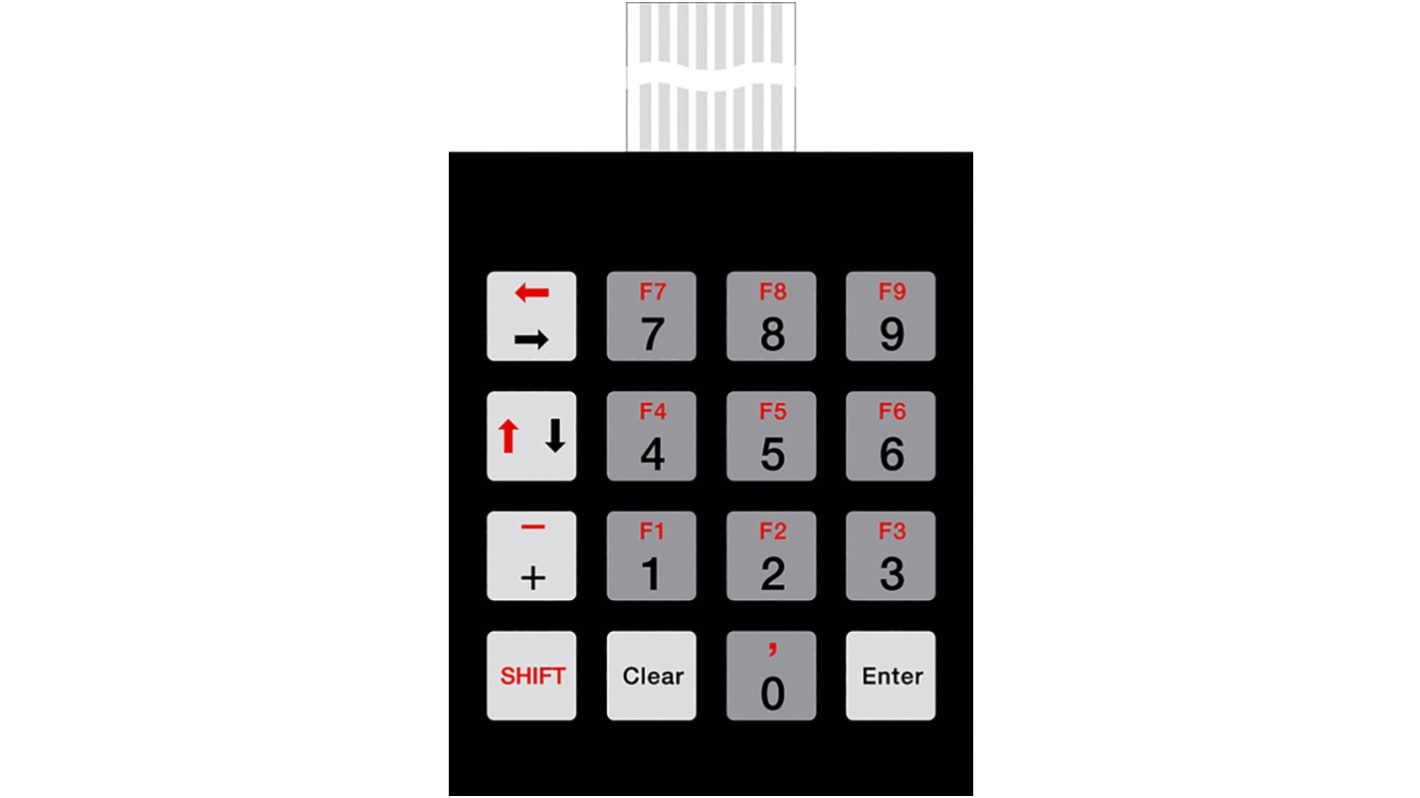

Bopla IP65 16 Key Copper Membrane Keypad

View all Keypads

Subtotal (1 unit)*

£69.50

(exc. VAT)

£83.40

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£69.50

*price indicative

RS Stock No.:
903-3217
Mfr. Part No.:
70347516 FT 75016 D
Brand:
Bopla
Find similar products by selecting one or more attributes.
Select all

Brand

Bopla

Keypad Layout

Hexadecimal

Membrane Operation

Yes

Number of Keys

16

Keypad Output

Matrix

IP Rating

IP65

Case Material

Copper

Case Colour

Black

Mechanical Life Per Key

>1000000

Contact Material

Silver

Actuator Colour

Grey

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+70°C

Voltage Rating

42V dc

Operating Temperature Range

-20 → +70°C

COO (Country of Origin):
DE

Bopla Membrane Keypads


These keypads have been designed for use in a variety of applications with options for use in hand-held, desktop or wall mounted enclosures. When combined with the Bopla Arteb, BOS or Elegant range of enclosures they can be inserted quickly and easily making instillation very cost effective, even at small quantities.

These units are manufactured with copper laminated base membranes which have been galvanically silver plated. This copper laminated material is more flexible than units using conductive silver. It helps to almost eliminate the possibility of breaks to the membrane cable and makes silver migration practically impossible. This also means LED’s, photo diodes and other components can be soldered in contrast to other keypads where adhesive is used.

Switch pressure: 3 to 5 N
Ingress protection: up to IP67
Voltage range: 1 to 42 Vdc
Instillation height: from 0.6mm
Key area: from 7 x 7mm
Min average distance between keys: 11mm
Operating temperature range:
With embossing: 0 to +45°C
Without embossing: -20 to +70°C
