Schneider Electric IP66, IP67, IP69(IP69K) Key Switch, 2NO 3-Way
- RS Stock No.:
- 330-8739
- Distrelec Article No.:
- 303-02-495
- Mfr. Part No.:
- XB4BG33
- Brand:
- Schneider Electric
Currently unavailable
Sorry, we don't know when this will be back in stock.
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 330-8739
- Distrelec Article No.:
- 303-02-495
- Mfr. Part No.:
- XB4BG33
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Positions | 3 | |
| Contact Configuration | 2NO | |
| IP Rating | IP66, IP67, IP69(IP69K) | |
| Terminal Type | Screw | |
| Key Index Angle | 45° | |
| Better World Product | Yes | |
| Contact Material | Silver Alloy | |
| Better World Verification | Green Premium | |
| Voltage Rating DC | 600V | |
| Voltage Rating AC | 600V | |
| Maximum Operating Temperature | +70°C | |
| Mechanical Life | 1000000 | |
| Minimum Operating Temperature | -40°C | |
| Operating Temperature Range | -40 → +70°C | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Positions 3 | ||
Contact Configuration 2NO | ||
IP Rating IP66, IP67, IP69(IP69K) | ||
Terminal Type Screw | ||
Key Index Angle 45° | ||
Better World Product Yes | ||
Contact Material Silver Alloy | ||
Better World Verification Green Premium | ||
Voltage Rating DC 600V | ||
Voltage Rating AC 600V | ||
Maximum Operating Temperature +70°C | ||
Mechanical Life 1000000 | ||
Minimum Operating Temperature -40°C | ||
Operating Temperature Range -40 → +70°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR

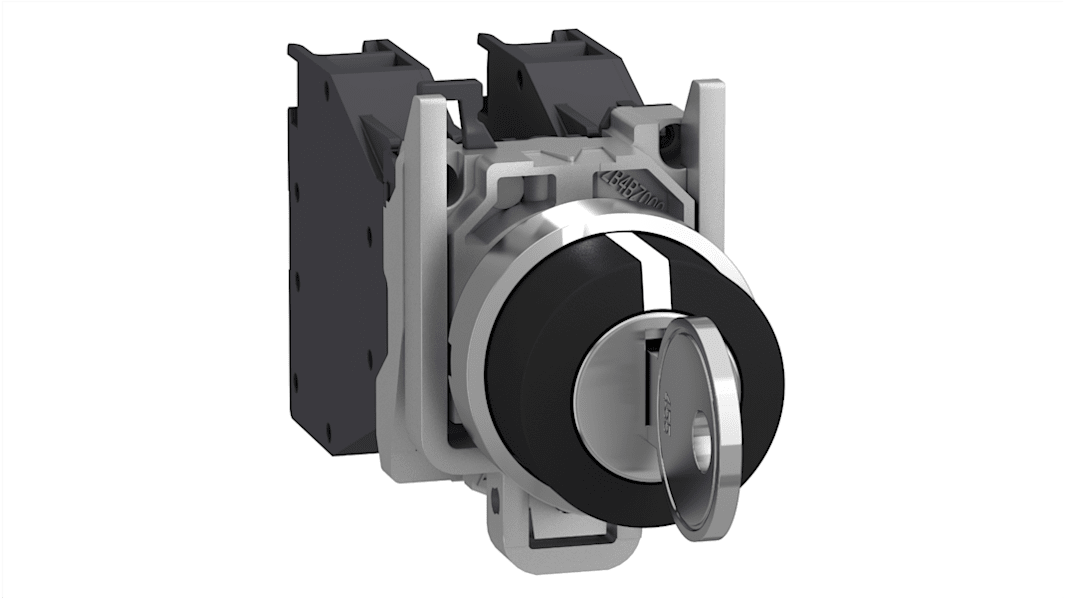

Schneider Electric Black Key Switch, 3 Positions, Panel Mount - Harmony XB4 Series - XB4BG33
This three-position key switch from Schneider Electric is ideal for safe machine operation in industrial environments. The two contacts are separated by a central off position, so turning the switch 45° breaks all connections before you turn it to the next set of contacts. This enhances workplace safety by preventing dangerous equipment from being accidentally turned on. This switch is activated with a key that can only be removed in the off position, so it's safe to use with heavy-duty machinery. A spare key is included in case one is mislaid.
• Service life of 1,000,000 cycles for reliable long-term use
• IP69K (ingress protection) rated for protection from dust and hot, high-pressure water
• 22mm diameter for use with standard panel cutouts
• Screw connectors for easy installation
• Wide operating temperature range of -40°C to +70°C for use in extreme industrial conditions
• IP69K (ingress protection) rated for protection from dust and hot, high-pressure water
• 22mm diameter for use with standard panel cutouts
• Screw connectors for easy installation
• Wide operating temperature range of -40°C to +70°C for use in extreme industrial conditions
Applications
• Control stations
• Loading platform controllers
• Communications and data
• Alarms
• Loading platform controllers
• Communications and data
• Alarms
Why would I need a key switch?
Certain equipment can be dangerous if activated accidentally or at the wrong time. Removing the key prevents inadvertent and unauthorised use.
Approvals
UL; CSA
