Schneider Electric IP40 Key Switch, SPDT 2-Way

RS Stock No.:: 219-9230
Mfr. Part No.:: A9E15123
Brand:: Schneider Electric

Schneider Electric IP40 Key Switch, SPDT 2-Way

Subtotal (1 unit)*

£107.19

(exc. VAT)

£128.63

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£107.19

*price indicative

RS Stock No.:: 219-9230
Mfr. Part No.:: A9E15123
Brand:: Schneider Electric

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Number of Positions	2
	Contact Configuration	SPDT
	IP Rating	IP40
	Operating Temperature Range	-20 → +55°C
	Mechanical Life	1000000
	Maximum Operating Temperature	+55°C
	Minimum Operating Temperature	-20°C

	Select all
	Brand Schneider Electric
	Number of Positions 2
	Contact Configuration SPDT
	IP Rating IP40
	Operating Temperature Range -20 → +55°C
	Mechanical Life 1000000
	Maximum Operating Temperature +55°C
	Minimum Operating Temperature -20°C

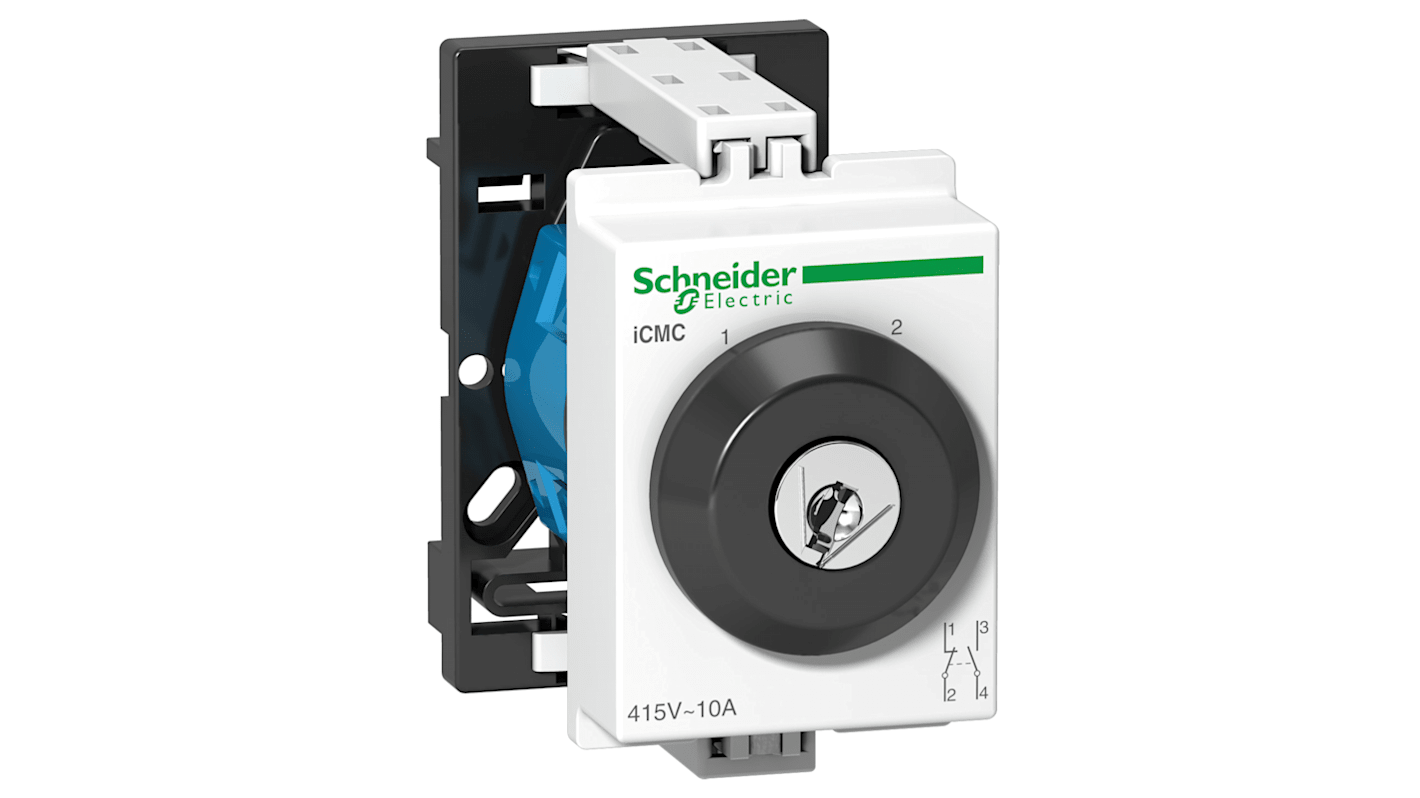

Schneider Electric Acti 9 Series Key Switch, 415V Voltage Rating, 10A Rated Operational Current - A9E15123

This key switch is designed for effective electrical circuit control and features a robust construction suitable for various conditions. Like other members of the Acti 9 series, it provides reliable operation across a temperature range of -20 to +55 °C. With compact dimensions of 60mm in height, 36mm in width, and 72mm in depth, this key switch integrates seamlessly into any environment.

Features & Benefits

• Designed for electrical control with reliable SPDT configuration
• Equipped with 2 positions for simplified operation
• Rated for 415V AC, suitable for industrial applications
• Key lock function enhances security in sensitive environments
• Suitable for DIN rail mounting, ensuring easy installation
• High mechanical life of up to 1,000,000 cycles for durability

Applications

• Used for safeguarding electrical circuits in commercial settings
• Ideal for industrial automation systems requiring secure controls
• Suitable for control panels needing a reliable key-operated switch
• Utilised where lockable switches are essential for safety
• Effective in installations where dual contact configuration is needed

What is the rated operational voltage and current for this switch?

The rated operational voltage is 415V AC, with a maximum permissible voltage of 440V. It can handle an operational current of up to 10A.

How does the key lock function benefit users?

The key lock function provides an additional layer of security, preventing unauthorised access or operation, which is crucial in environments where circuit integrity is paramount.

What type of terminals does it feature for connections?

This switch features jumper terminals that accommodate wire sizes of up to 1.5mm², simplifying the wiring process during installation.

What is the IP rating and how does it affect usability?

It has an IP20 rating, indicating it is suitable for indoor use, providing protection against solid objects larger than 12.5mm but not against water exposure.

What is the expected lifespan of this key switch under normal conditions?

The key switch is designed for high durability, with a mechanical life expectancy of 1,000,000 cycles, ensuring long-term reliability in various applications.
