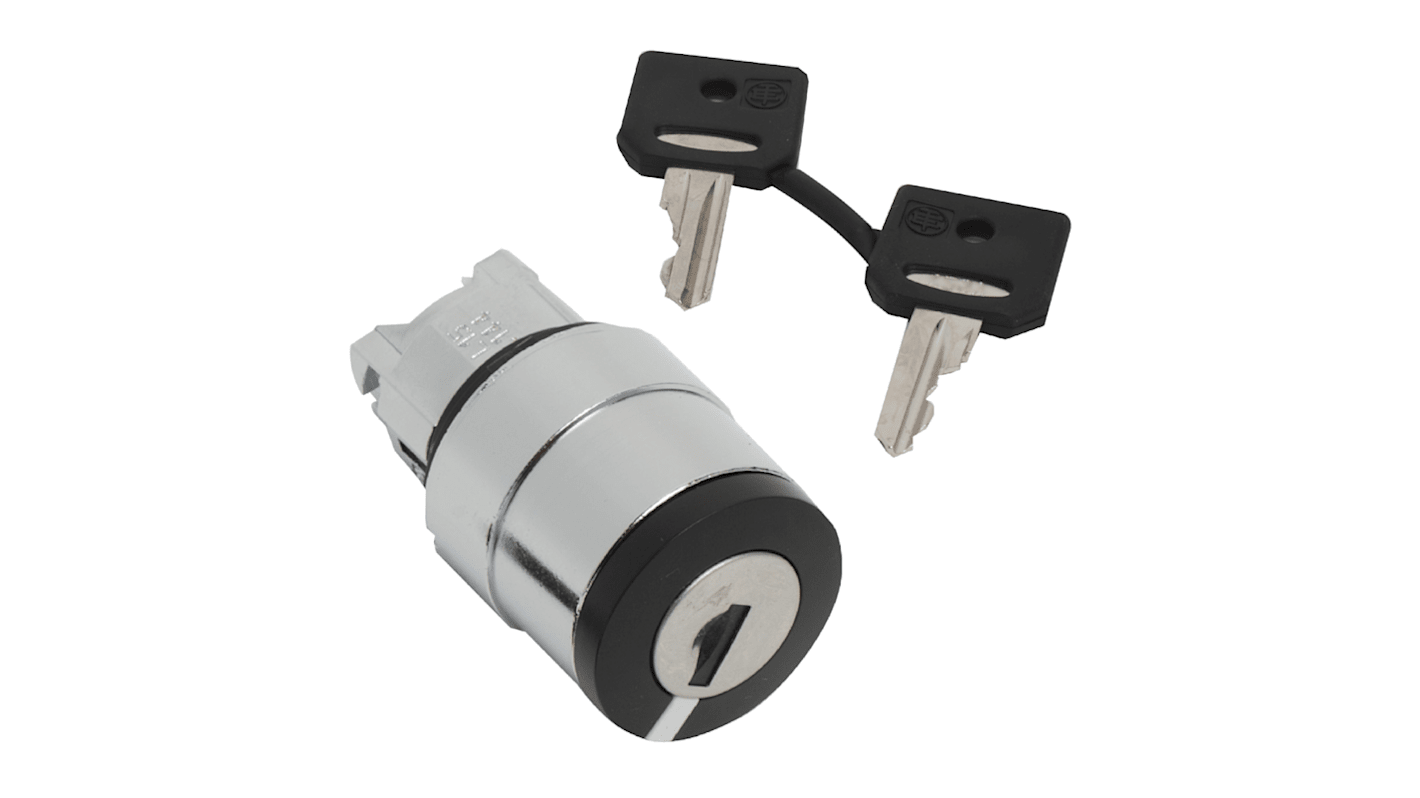

Schneider Electric Harmony XB4 2-position Key Switch Head, Latching, 22mm Cutout
- RS Stock No.:
- 609-2235
- Distrelec Article No.:
- 303-02-601
- Mfr. Part No.:
- ZB4BG210
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£51.03
(exc. VAT)
£61.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 22 unit(s) ready to ship
- Plus 14 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £51.03 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 609-2235
- Distrelec Article No.:
- 303-02-601
- Mfr. Part No.:
- ZB4BG210
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Series | Harmony XB4 | |
| Cutout Diameter | 22mm | |
| Number of Positions | 2 | |
| Key Type | 458A | |
| Key Withdrawal Position | Left | |
| Switch Actuation | Latching | |
| IP Rating | IP66, IP67, IP69(IP69K) | |
| Angle of Throw | 90° | |
| Illuminated | No | |
| Number of Keys | 2 | |
| Maximum Operating Temperature | +70°C | |
| Mechanical Life | 1000000 | |
| Better World Verification | Green Premium | |
| Minimum Operating Temperature | -40°C | |
| Better World Product | Yes | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Series Harmony XB4 | ||
Cutout Diameter 22mm | ||
Number of Positions 2 | ||
Key Type 458A | ||
Key Withdrawal Position Left | ||
Switch Actuation Latching | ||
IP Rating IP66, IP67, IP69(IP69K) | ||
Angle of Throw 90° | ||
Illuminated No | ||
Number of Keys 2 | ||
Maximum Operating Temperature +70°C | ||
Mechanical Life 1000000 | ||
Better World Verification Green Premium | ||
Minimum Operating Temperature -40°C | ||
Better World Product Yes | ||
Schneider Electric Harmony XB4 Series Key Switch Head, 22mm Cut-out Diameter, Latching Switch Actuation - ZB4BG210
This key switch head is suitable for industrial applications where control and security are important. It features a latching mechanism for environments requiring strict access management. With high durability and IP66, IP67, and IP69K ratings, it performs well in harsh conditions, ensuring lasting functionality and dependability.
Features & Benefits
• Latching mechanism ensures position retention
• IP66, IP67, and IP69K ratings for dust and water resistance
• Operates in temperature ranges from -40 to +70°C
• High mechanical life exceeding 1 million cycles
• Designed for ease of use with a left key withdrawal position
• Offers two-position operation for straightforward control
• IP66, IP67, and IP69K ratings for dust and water resistance
• Operates in temperature ranges from -40 to +70°C
• High mechanical life exceeding 1 million cycles
• Designed for ease of use with a left key withdrawal position
• Offers two-position operation for straightforward control
Applications
• Used in access control systems for secure environments
• Ideal for machinery requiring reliable latching
• Commonly found in electrical panels for operational safety
• Applicable in various industrial automation tasks
• Ideal for machinery requiring reliable latching
• Commonly found in electrical panels for operational safety
• Applicable in various industrial automation tasks
How does the latching mechanism enhance security?
The latching mechanism maintains a stable state, preventing accidental switch activation and ensuring that operations remain secure.
What is the importance of the IP66 rating?
The IP66 rating indicates that the switch is completely dust-tight and can withstand powerful water jets, making it suitable for challenging environments.
Can it operate in extreme temperatures?
Yes, it functions effectively within a temperature range of -40 to +70°C, ensuring performance in varied conditions.
How to install it in my equipment?
This switch is designed for straightforward installation, requiring a panel cut-out of 22mm and connecting via screw clamp terminals.
What maintenance is required for optimal performance?
Regular inspection for debris or damage ensures continued operation, while occasional cleaning maintains the switch in good condition.
