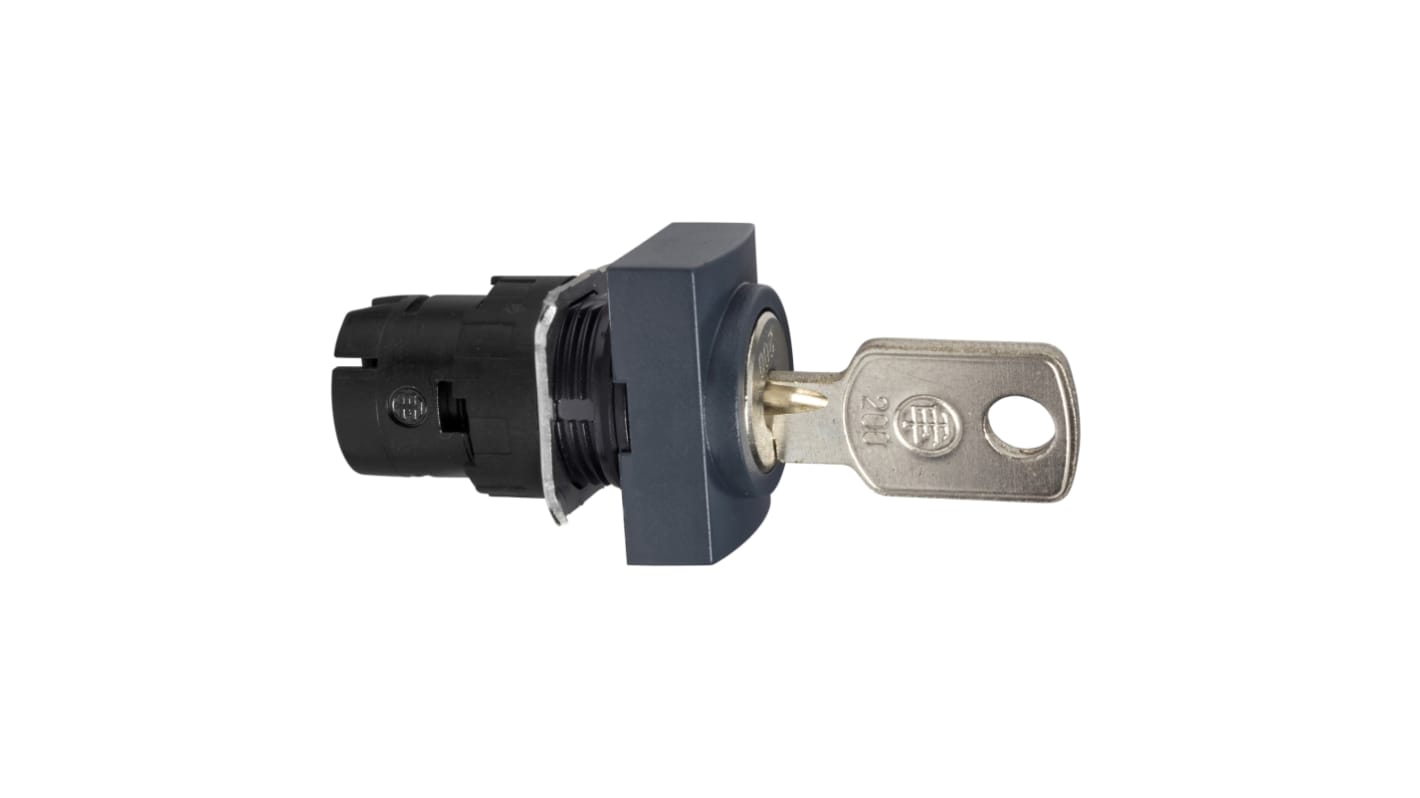

Schneider Electric Harmony 2-position Key Switch Head, Spring Return, 16mm Cutout
- RS Stock No.:
- 199-153
- Mfr. Part No.:
- ZB6DGL
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£40.52
(exc. VAT)
£48.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £40.52 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 199-153
- Mfr. Part No.:
- ZB6DGL
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Schneider Electric | |
Series | Harmony | |
Cutout Diameter | 16mm | |
Number of Positions | 2 | |
Key Type | Ronis | |
Switch Actuation | Spring Return | |
Key Withdrawal Position | Centre | |
IP Rating | IP65 | |
Angle of Throw | 70° | |
Illuminated | No | |
Number of Keys | 2 | |
Maximum Operating Temperature | +70°C | |
Better World Verification | Green Premium | |
Better World Product | Yes | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand Schneider Electric | ||
Series Harmony | ||
Cutout Diameter 16mm | ||
Number of Positions 2 | ||
Key Type Ronis | ||
Switch Actuation Spring Return | ||
Key Withdrawal Position Centre | ||
IP Rating IP65 | ||
Angle of Throw 70° | ||
Illuminated No | ||
Number of Keys 2 | ||
Maximum Operating Temperature +70°C | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Minimum Operating Temperature -25°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Schneider Electric Harmony XB6 Series Key Switch Head, 16mm Cutout Diameter, IP65 - ZB6DGL
This key switch head is designed for secure operation in various industrial environments. Its robust performance enhances control systems within electrical and mechanical applications. With a spring return mechanism and dual position functionality, it is suitable for automation professionals.
Features & Benefits
• Durable design to withstand harsh conditions
• IP65 rating for improved moisture and dust protection
• Utilises Ronis key type for secure operation
• Centre key withdrawal mechanism for straightforward use
• Functions effectively in temperatures ranging from -25°C to +70°C
• Compact rectangular shape allows for easy installation
• IP65 rating for improved moisture and dust protection
• Utilises Ronis key type for secure operation
• Centre key withdrawal mechanism for straightforward use
• Functions effectively in temperatures ranging from -25°C to +70°C
• Compact rectangular shape allows for easy installation
Applications
• Controls machinery in manufacturing processes
• Utilised in automation panels for improved operational control
• Suitable for switching systems that require secure key access
• Applicable in environments prioritising durability and reliability
• Utilised in automation panels for improved operational control
• Suitable for switching systems that require secure key access
• Applicable in environments prioritising durability and reliability
How is the switch maintained in operational condition?
Regular inspections and cleaning of the key slot are advisable to prevent dust build-up and ensure smooth operation.
What type of key is compatible with the switch?
The switch is compatible with a Ronis key type, providing security and easy access.
Can the switch operate in extreme temperatures?
Yes, it can function effectively within a temperature range of -25°C to +70°C.
Is it suitable for outdoor applications?
The IP65 rating indicates its suitability for outdoor use, protecting against dust and water ingress.
How is the switch installed in a panel?
Installation is straightforward, requiring a standard 16mm cut-out.
Schneider Electric ZB6 Harmony 16mm
A range of IP65 protected components which are easily and quickly mounted in 16mm diameter holes. Each component can be ordered separately to build the required device. Also available are contact blocks with slow-break positive opening contacts with Faston/solder connections. Rating Ue 250Vac, Ie 1.5A; Ue 250Vdc, Ie 0.1A, Io A Ith operating temp. -25 to +70°C.
