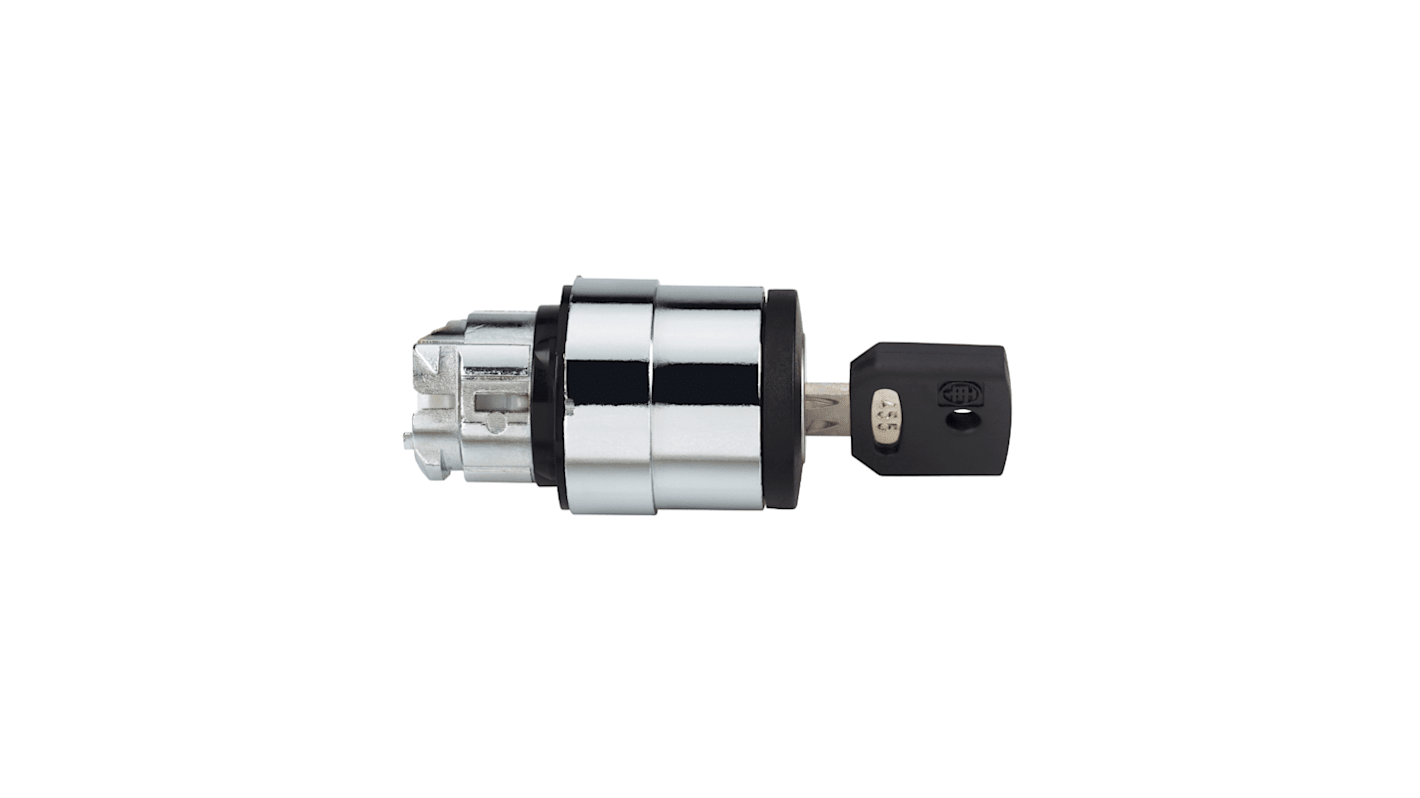

Schneider Electric Harmony XB4 2-position Key Switch Head, Spring Return from Left and Right, 22mm Cutout

View all Key Switch Heads

Subtotal (1 unit)*

£36.34

(exc. VAT)

£43.61

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • 58 left, ready to ship
  • Plus 10 left, ready to ship from another location
Units
Per unit
1 +£36.34

*price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:
330-9170
Distrelec Article No.:
135-12-283
Mfr. Part No.:
ZB4BG6
Brand:
Schneider Electric
Find similar products by selecting one or more attributes.
Select all

Brand

Schneider Electric

Series

Harmony XB4

Cutout Diameter

22mm

Number of Positions

2

Key Type

455

Switch Actuation

Spring Return from Left and Right

IP Rating

IP66, IP67, IP69(IP69K)

Angle of Throw

90°

Illuminated

No

Number of Keys

2

Maximum Operating Temperature

+70°C

Mechanical Life

1000000

Better World Product

Yes

Minimum Operating Temperature

-40°C

Better World Verification

Green Premium

RoHS Status: Exempt

COO (Country of Origin):
FR

Schneider Electric Selector Harmony ZB4 Key Switch Heads for use with XB4 Switches


Featuring black handles and a range of positions, Schneider Electric offers the Harmony ZB4 series of key switch heads. Round and chrome plated metal, they are designed to be durable, simple to set up, flexible and robust. Each switch head contains an ingenious locking system which is a snap-fit head and body, the heads can be tightened with a single screw to ensure secure and simple mounting. We have a large range of Harmony ZB4 key switch heads available in our catalogue with different positions and operator type to suit your needs.

All heads require a body/fixing collar and contact bodies which are available from our catalogue of products:
Collar 331-0142
Contact bodies 331-0158

Features and Benefits:


• Low-load electrical contact
• Screw clamp connection, pins for printed circuit
• Ingenious locking system
• Flexible and robust
• -40°C to 70°C operating temperature

Protection ratings & Safety features:


• Conformity with IEC, UL, CSA standards
• IP67, IP66 conforming to IEC 60529, IP69 and IP69K
• NEMA 13 and NEMA 4X
• IK06 conforming to IEC 50102

Applications - Designed for industry, infrastructure and service sector use including:
• Automotive
• Control system panel builders
• Energy distribution
• Public works
• Building
• Airports

Schneider Electric Button Switch, Key Selector Switch Type, Right-To-Left Spring Return - Harmony XB4 Series - ZB4BG6


Need an easy and speedy way to control your industrial equipment? Take a turn with this button switch from Schneider Electric. It has two positions, so you simply turn it through 90° to switch between process or machine-operating modes. The unit can only be actuated with a key, so you can be confident that access is limited to authorised staff. An IP66 rating means it's dust-tight and shielded from high-pressure jets of water from any direction, so it's a reliable choice in industrial settings.

Features & Benefits


• Chromium-plated metal bezel resists impact, vibration and corrosion in heavy-duty applications
• Lightweight at 98g, so it adds minimal pressure to your setup
• Slots into a 22mm cutout for easy compatibility with standard panels

Applications


• Computer networks
• Control panels
• Lighting systems
• Security equipment
• Energy distribution

How reliable is this push button switch?


It has a high mechanical durability rating of 1 million cycles, so you can trust it to go the distance.

Is this unit suitable for factories?


Yes – its wide operating temperature range from -40°C to +70°C means it's suitable for use in factories and other harsh work areas.
