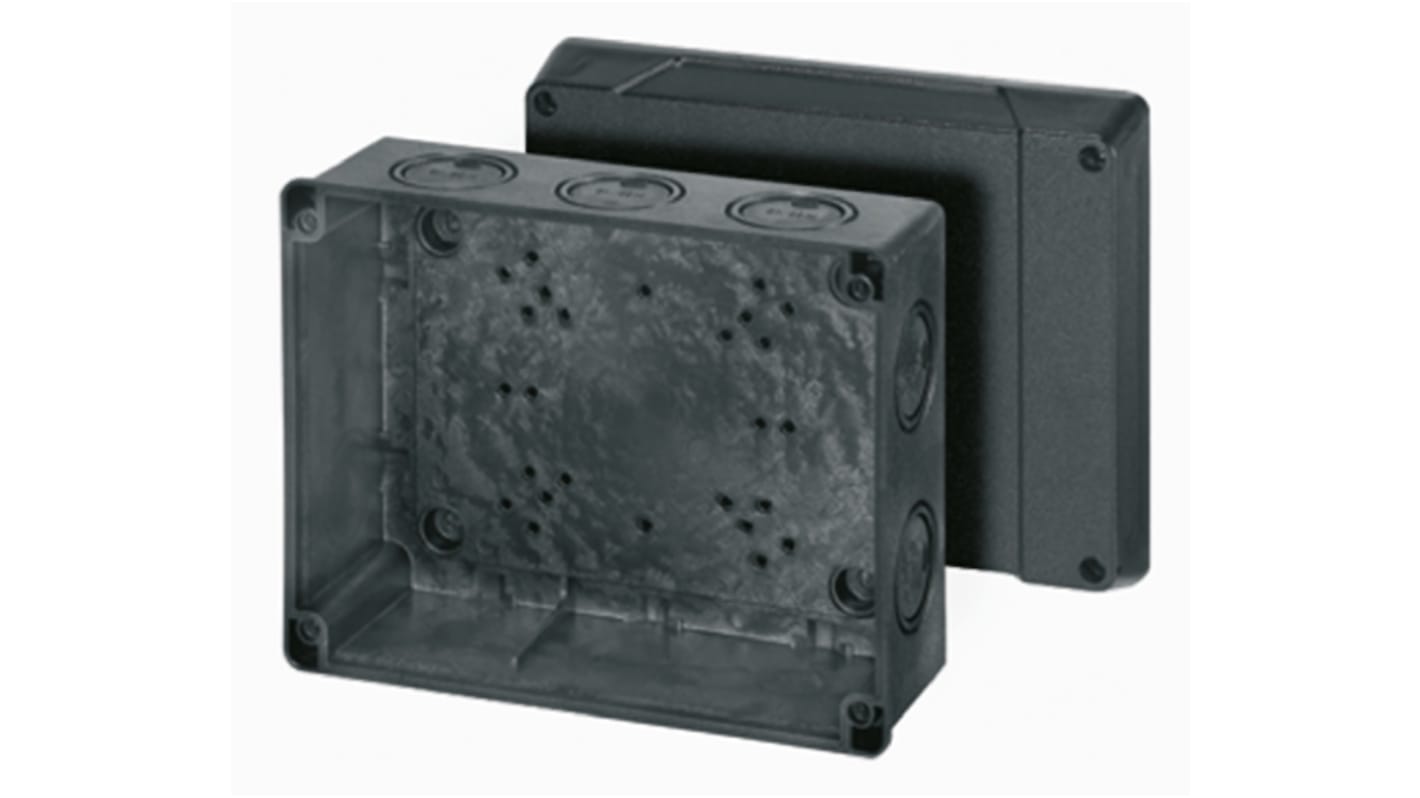

The Hensel DK junction box is suitable for use in offshore areas and for indoor installation (normal environment) and outdoor installation (harsh environments) in accordance with DIN VDE 0100, part 737. Three options for these junction boxes are available; with terminals and cable entries; without terminals but with cable entries; without terminals or cable entries.
Designed for offshore applications Saltwater proof Acid resistant lid screws made of stainless steel Burning behaviour 960 deg C IP66/67 protection; temporary submersion up to 1 m for max. 15 minutes IK08 (5 joule) protection against mechanical load Made from black thermoplastic (RAL 9011)
Standards
In accordance with IEC 60, 670-22.
Approvals
DNV, GL( German Lloyd's) and Russian shipping approved.
Attribute
Value
Dimensions L x W x H
160 x 200 x 98mm
Material
Thermoplastic
Length
160mm
Width
200mm
Height
98mm
Colour
Black
Number of Ways
10
Current Rating
102A
Series
DK
