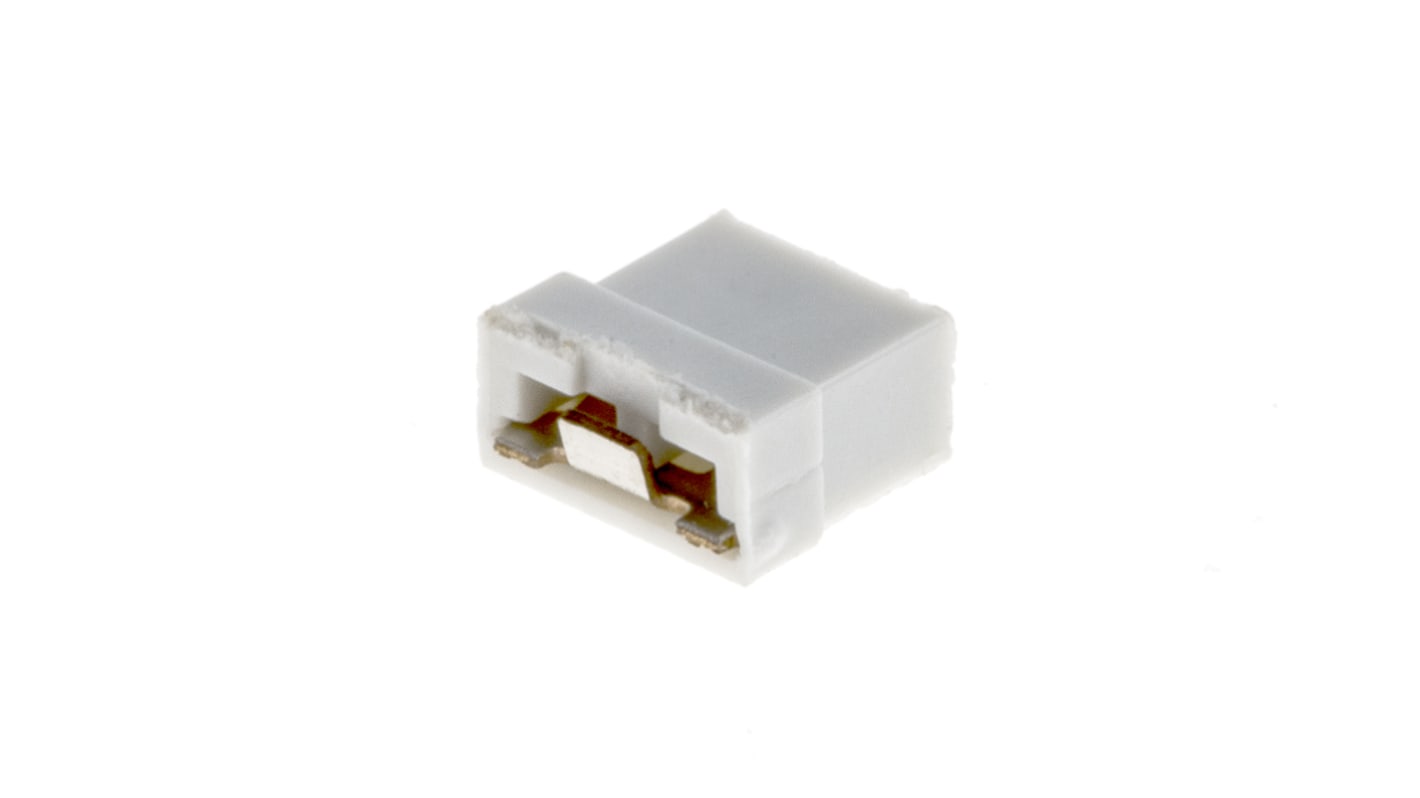

HARWIN, M22-19 Jumper Straight Female Grey Open Top 2 Way 1 Row 2 mm Pitch
- RS Stock No.:
- 180-9375
- Mfr. Part No.:
- M22-1930005
- Brand:
- HARWIN
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 10)
£0.213
(exc. VAT)
£0.256
(inc. VAT)
- RS Stock No.:
- 180-9375
- Mfr. Part No.:
- M22-1930005
- Brand:
- HARWIN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARWIN | |
| Sub Type | Open Top | |
| Product Type | Jumper | |
| Number of Contacts | 2 | |
| Pitch | 2mm | |
| Current | 2A | |
| Housing Material | Polybutylene Terephthalate | |
| Colour | Grey | |
| Connector Gender | Female | |
| Voltage | 250V | |
| Number of Rows | 1 | |
| Length | 3.9mm | |
| Series | M22-19 | |
| Contact Material | Beryllium Copper Alloy | |
| Contact Plating | Gold | |
| Contact Gender | Female | |
| Standards/Approvals | No | |
| Width | 3.5mm | |
| Depth | 1.95mm | |
| Orientation | Straight | |
| Maximum Contact Resistance | 20mΩ | |
| Select all | ||
|---|---|---|
Brand HARWIN | ||
Sub Type Open Top | ||
Product Type Jumper | ||
Number of Contacts 2 | ||
Pitch 2mm | ||
Current 2A | ||
Housing Material Polybutylene Terephthalate | ||
Colour Grey | ||
Connector Gender Female | ||
Voltage 250V | ||
Number of Rows 1 | ||
Length 3.9mm | ||
Series M22-19 | ||
Contact Material Beryllium Copper Alloy | ||
Contact Plating Gold | ||
Contact Gender Female | ||
Standards/Approvals No | ||
Width 3.5mm | ||
Depth 1.95mm | ||
Orientation Straight | ||
Maximum Contact Resistance 20mΩ | ||
- COO (Country of Origin):
- GB
Jumper Links
2-way jumper links on a 2mm pitch with gold or tin plated beryllium copper contacts
End/side stackable, open tops for test probes
