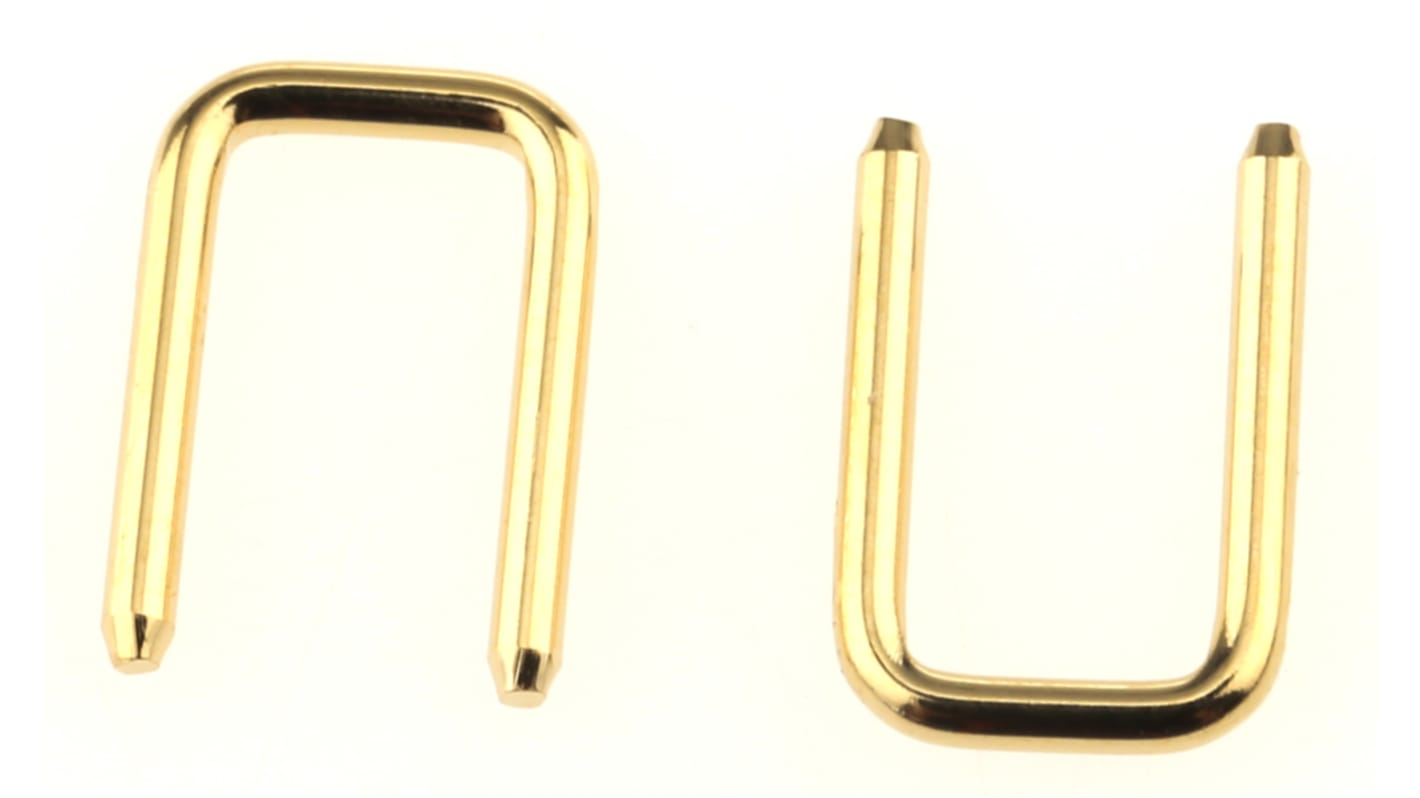

HARWIN, D308 Shorting Link Straight Male Uninsulated 2 Way 1 Row 5.08 mm Pitch
- RS Stock No.:
- 434-728
- Mfr. Part No.:
- D3080-05
- Brand:
- HARWIN
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 25 units)*
£5.80
(exc. VAT)
£6.95
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 7,425 unit(s) ready to ship
- Plus 1,200 unit(s) ready to ship from another location
- Plus 5,000 unit(s) shipping from 24 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 475 | £0.232 | £5.80 |
| 500 - 1850 | £0.183 | £4.58 |
| 1875 - 7475 | £0.159 | £3.98 |
| 7500 - 14975 | £0.146 | £3.65 |
| 15000 + | £0.138 | £3.45 |
*price indicative
- RS Stock No.:
- 434-728
- Mfr. Part No.:
- D3080-05
- Brand:
- HARWIN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARWIN | |
| Sub Type | Uninsulated | |
| Product Type | Shorting Link | |
| Number of Contacts | 2 | |
| Pitch | 5.08mm | |
| Current | 10A | |
| Housing Material | Polybutylene Terephthalate | |
| Connector Gender | Male | |
| Number of Rows | 1 | |
| Length | 6.08mm | |
| Series | D308 | |
| Contact Material | Brass | |
| Contact Gender | Male | |
| Contact Plating | Gold | |
| Orientation | Straight | |
| Width | 6.35mm | |
| Standards/Approvals | No | |
| Depth | 1mm | |
| Select all | ||
|---|---|---|
Brand HARWIN | ||
Sub Type Uninsulated | ||
Product Type Shorting Link | ||
Number of Contacts 2 | ||
Pitch 5.08mm | ||
Current 10A | ||
Housing Material Polybutylene Terephthalate | ||
Connector Gender Male | ||
Number of Rows 1 | ||
Length 6.08mm | ||
Series D308 | ||
Contact Material Brass | ||
Contact Gender Male | ||
Contact Plating Gold | ||
Orientation Straight | ||
Width 6.35mm | ||
Standards/Approvals No | ||
Depth 1mm | ||
- COO (Country of Origin):
- TW
Harwin D308 Series 1mm Ø Shorting Link Plugs
D308 series 1mm diameter insulated and un-insulated shorting link plugs with a variety of leg pitches and insulation colours. These D308 insulated shorting link plugs have a high performance gold plated brass finish and a colour coded PBT UL94V-0 housing. The insulated versions are not designed for direct soldering to the the PCB but can be used with PCB sockets in hardware programming applications. The D308 un-insulated links can be soldered directly onto a PCB for permanent linking.
Part numbers D308-X-97, D308-X-98 and D308-X-99 are insulated versions
