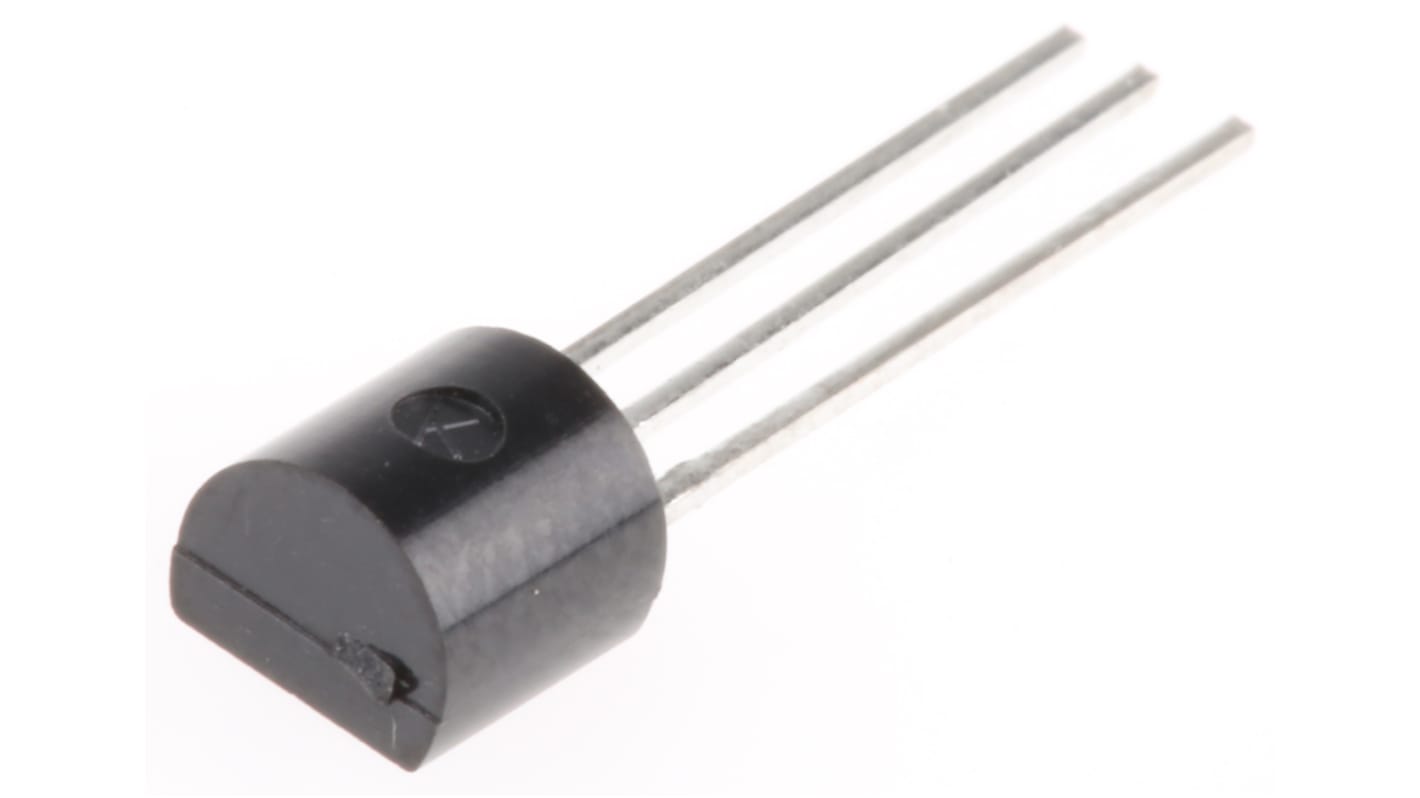

onsemi J113, Single Type N-Channel JFET-Channel JFET 2 mA, 3-Pin TO-92
- RS Stock No.:
- 806-1766
- Mfr. Part No.:
- J113
- Brand:
- onsemi
Bulk discount available
Subtotal (1 pack of 50 units)*
£12.35
(exc. VAT)
£14.80
(inc. VAT)
Add 250 units to get free delivery
In Stock
- 1,700 unit(s) ready to ship
- Plus 150 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 450 | £0.247 | £12.35 |
| 500 + | £0.213 | £10.65 |
*price indicative
- RS Stock No.:
- 806-1766
- Mfr. Part No.:
- J113
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Product Type | JFET | |
| Channel Type | Type N | |
| Sub Type | JFET | |
| Configuration | Single | |
| Mount Type | Through Hole | |
| Package Type | TO-92 | |
| Drain Source Current Ids | 2 mA | |
| Maximum Drain Source Resistance Rds | 100Ω | |
| Pin Count | 3 | |
| Maximum Power Dissipation Pd | 625mW | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | -35 V | |
| Maximum Operating Temperature | 150°C | |
| Width | 4.19 mm | |
| Standards/Approvals | No | |
| Height | 5.33mm | |
| Length | 5.2mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Product Type JFET | ||
Channel Type Type N | ||
Sub Type JFET | ||
Configuration Single | ||
Mount Type Through Hole | ||
Package Type TO-92 | ||
Drain Source Current Ids 2 mA | ||
Maximum Drain Source Resistance Rds 100Ω | ||
Pin Count 3 | ||
Maximum Power Dissipation Pd 625mW | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs -35 V | ||
Maximum Operating Temperature 150°C | ||
Width 4.19 mm | ||
Standards/Approvals No | ||
Height 5.33mm | ||
Length 5.2mm | ||
Automotive Standard No | ||
N-channel JFET, Fairchild Semiconductor
JFET Transistors
A range of JFET (junction field-effect transistor) and HEMT/HFET (high-electron-mobility transistor/ hetero-junction FET) discrete semiconductor devices.
