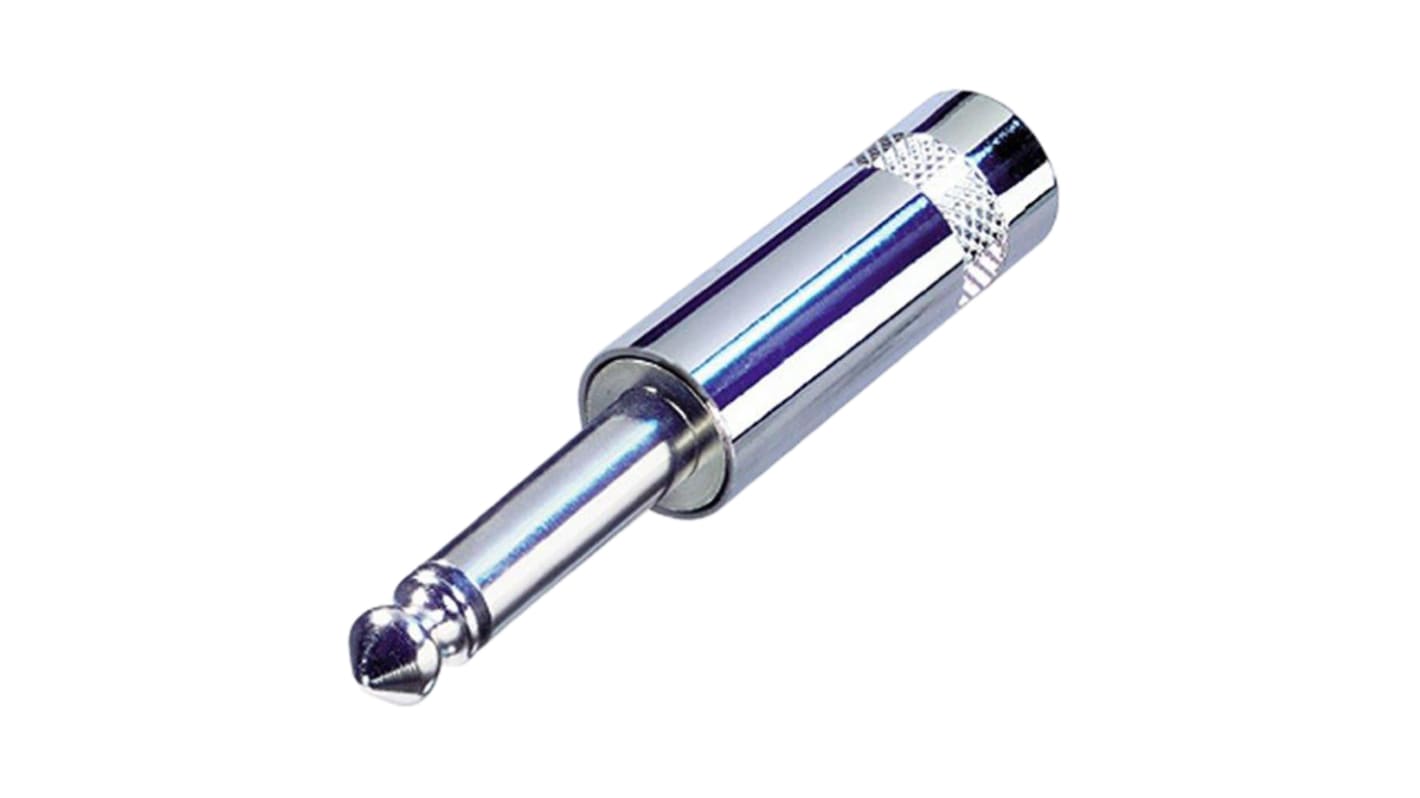

REAN Products Jack Connector 6.35 mm Cable Mount Mono Plug, 2Pole
- RS Stock No.:
- 880-8118
- Mfr. Part No.:
- NYS201
- Brand:
- REAN Products
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 880-8118
- Mfr. Part No.:
- NYS201
- Brand:
- REAN Products
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | REAN Products | |
Gender | Male | |
Size | 6.35 mm | |
Mounting Type | Cable Mount | |
Type | Mono | |
Body Orientation | Straight | |
Termination Method | Crimp | |
Contact Plating | Nickel | |
Contact Material | Brass | |
No of Poles/ Way | 2 | |
Select all | ||
---|---|---|
Brand REAN Products | ||
Gender Male | ||
Size 6.35 mm | ||
Mounting Type Cable Mount | ||
Type Mono | ||
Body Orientation Straight | ||
Termination Method Crimp | ||
Contact Plating Nickel | ||
Contact Material Brass | ||
No of Poles/ Way 2 | ||
- COO (Country of Origin):
- CN
REAN 1/4 Inch Mono Phone Plugs
1/4 Inch mono phone plugs from Neutriks REAN brand of products, offered in straight and right angle options. These mono phone plugs can accomodate a maximum cable diameter of 6mm, 2 pole mono set up, with up to 1000 mating cycles and crimp type cable strain relief. Suitable for many audio applications, REAN products are an excellent alternative solution for cost sensitive applications. All models are highly reliable and excellent quality.
Features and Benefits
Commercial 1/4 inch Plugs
Heavy duty cable clamp
Large cable outlet and solder tabs
Dielectric strength is 500Vdc and the insulation resistance is over 1 Giga Ohm
Heavy duty cable clamp
Large cable outlet and solder tabs
Dielectric strength is 500Vdc and the insulation resistance is over 1 Giga Ohm
REAN Phone Connectors
