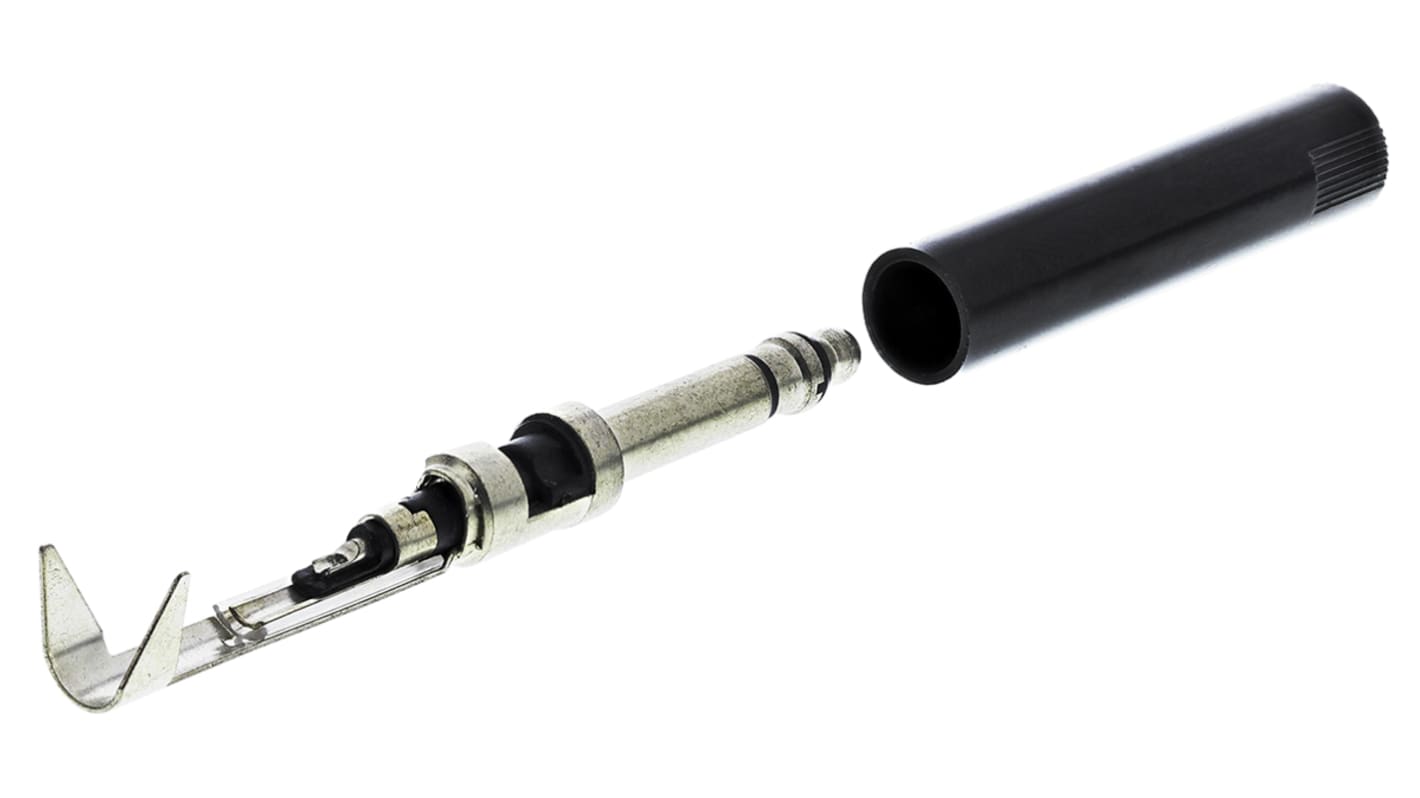

Switchcraft, Bantam TT Miniature Connector Plug, 3 Way

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): US
Product Details

Bantam Patch Plugs

Three-pole miniature plugs available as single with crimp terminals or single with solder terminals. Solder terminals allow for easier termination. For use only with low power audio and telecommunication circuits. All models are highly reliable and excellent quality.

Specifications
Attribute Value
Gender Male
Body Orientation Straight
Termination Method Solder
Contact Plating Nickel
Housing Material Thermoplastic
Colour Black
Contact Material Copper Alloy
Available to back order for despatch 02/12/2020
Price Each
£ 17.15
(exc. VAT)
£ 20.58
(inc. VAT)
Units
Per unit
1 - 14
£17.15
15 - 49
£16.52
50 - 99
£15.92
100 +
£15.38
