RS PRO Jack Socket 6.35 mm Panel Mount Female, 5A Solder Tag

View all Jack Plugs & Sockets

Subtotal (1 unit)*

£2.05

(exc. VAT)

£2.46

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 24 unit(s) shipping from 27 April 2026
  • Plus 200 unit(s) shipping from 29 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£2.05

*price indicative

RS Stock No.:
276-1750
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Product Type

Jack Socket

Size

6.35 mm

Mount Type

Panel Mount

Current

5A

Termination Type

Solder Tag

Connector Gender

Female

Orientation

Right Angle

Contact Plating

Gold

Housing Material

Nylon

Colour

Black

Contact Gender

Female

Series

CL129

Standards/Approvals

RoHS

Contact Material

Gold

COO (Country of Origin):
GB

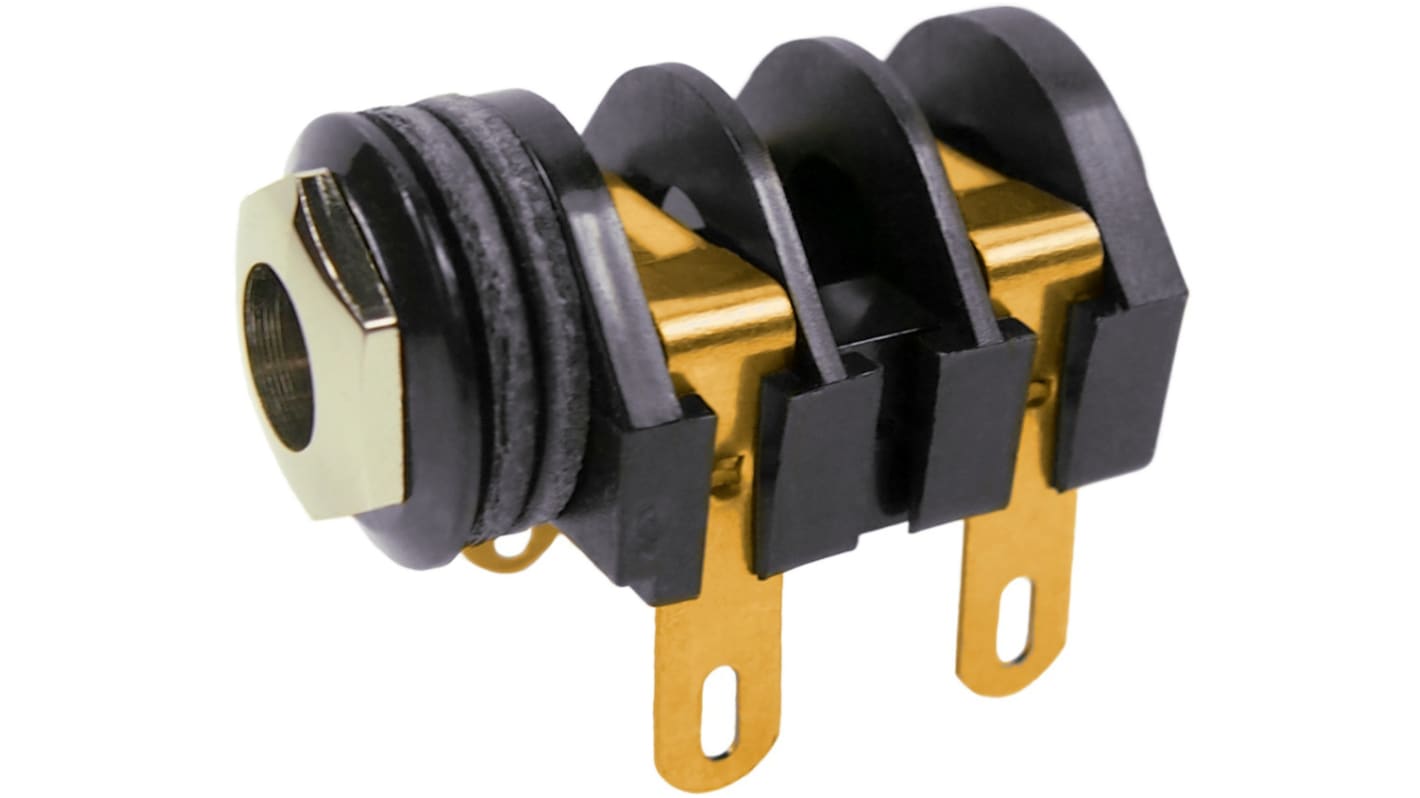

RS PRO Panel Mounted, Nylon, Mono, Female Jack Socket, 6.35 mm, 5A


From RS PRO this is the panel mounted 6.35 jack Socket complete with a hard-wearing nylon body. Designed for durability and a quality contact performance, this connector combines reliability and versatility. This heavy-duty nylon bodied socket features a threaded nose, with a metal screw-on front nut to securely affix the connector to a panel.

The RS PRO Mono Jack Socket also features solder tag termination with gold plated contacts plus is suitable for use within a maximum panel thickness of 4.3 mm.

Features and Benefits


  • Mono, Female Jack Socket

  • 6.35 mm

  • Gold plated contacts

  • N/O Switched contacts

  • Nylon body

  • Body colour is black

  • Maximum panel thickness 4.3 mm

  • Solder tag terminals

  • 5 A Maximum current

  • Dielectric withstand voltage of 2000 V dc minimum

  • <50mΩ Nominal contact resistance

  • Temperature rating -10° to +70°

  • Suitable for up to 10,000 plus operations

  • RoHS Approval

    • Applications


    ¼” Jack Sockets are often used in musical instruments, found on amplifiers and electric guitars, keyboards and drum kits. Whether in a professional studio or stage environment, or for home use, jack connectors are a staple connector for musicians and engineers. They also have applications in commercial public address systems and industrial systems.

    Why RS PRO?


    RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.
