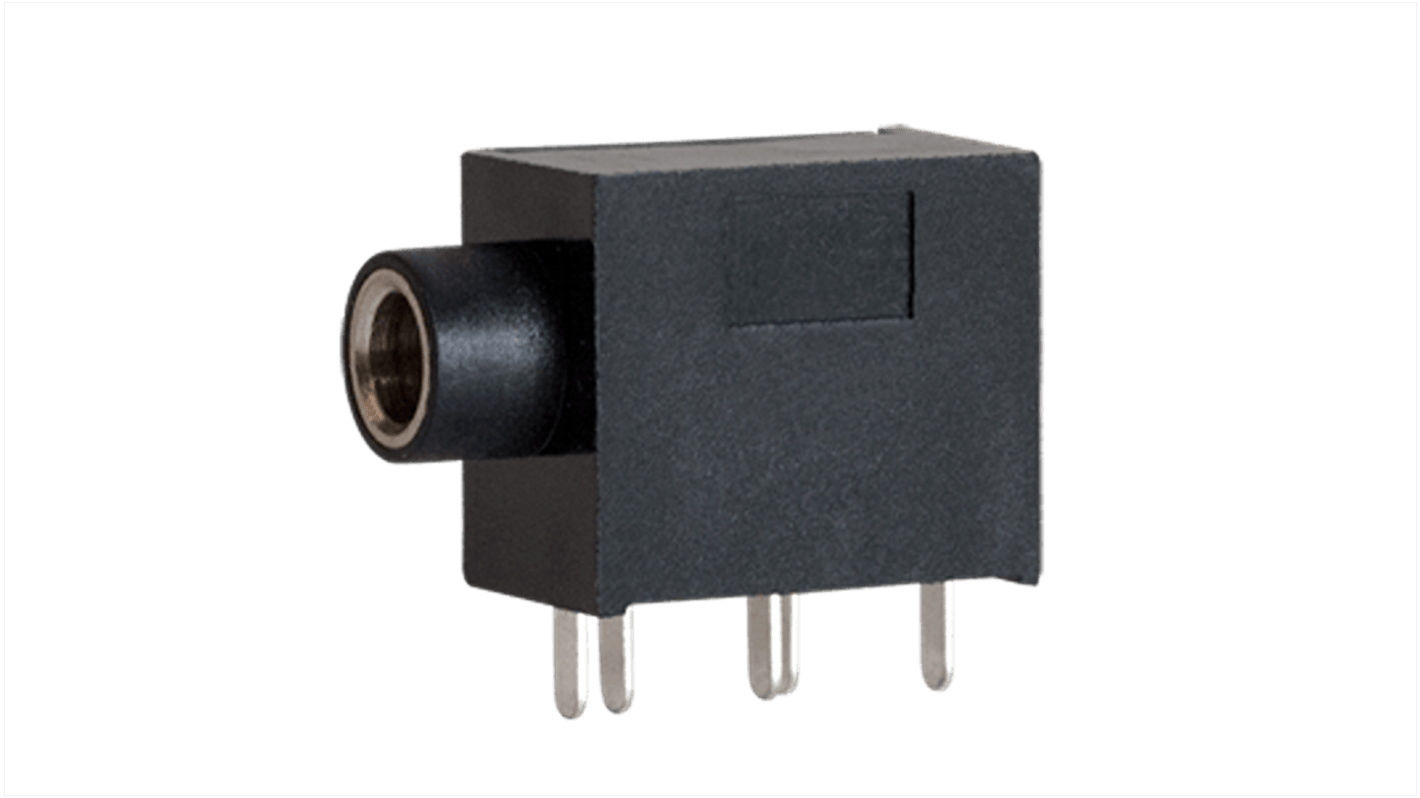

Same Sky Jack Connector 3.5 mm Through Hole Male Jack Connector, 1A

View all Jack Plugs & Sockets
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
RS Stock No.:
259-6650
Mfr. Part No.:
SJ1-3533NG
Brand:
Same Sky
Find similar products by selecting one or more attributes.
Select all

Brand

Same Sky

Product Type

Jack Connector

Size

3.5 mm

Mount Type

Through Hole

Current

1A

Sub Type

Jack Connector

Connector Gender

Male

Orientation

Horizontal

Contact Plating

Tin

Housing Material

Polybutylene Terephthalate

Voltage

500V

Colour

Black

Contact Gender

Female

Standards/Approvals

No

Contact Material

Brass

COO (Country of Origin):
CN
The CUI devices jack connector

comes with a horizontal body orientation. The mounting type of the product is through hole and the size is 3.5 mm. The product has an audio jack.

Insulation resistance at 500 Vdc is 100 MΩ

Flammability rating IS UL94V-0

Insertion withdrawn force is 0.3 kg - 3 kg
