Amphenol NEXUS Technologies Jack Plug Panel Mount Airborne Jack Socket, 4Pole

View all Jack Plugs & Sockets

Subtotal (1 unit)*

£33.97

(exc. VAT)

£40.76

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 28 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£33.97

*price indicative

RS Stock No.:
232-252
Mfr. Part No.:
TJS-102
Brand:
Amphenol NEXUS Technologies
Find similar products by selecting one or more attributes.
Select all

Brand

Amphenol NEXUS Technologies

Gender

Female

Mounting Type

Panel Mount

Type

Airborne Jack

Body Orientation

Straight

No of Poles/ Way

4

COO (Country of Origin):
US

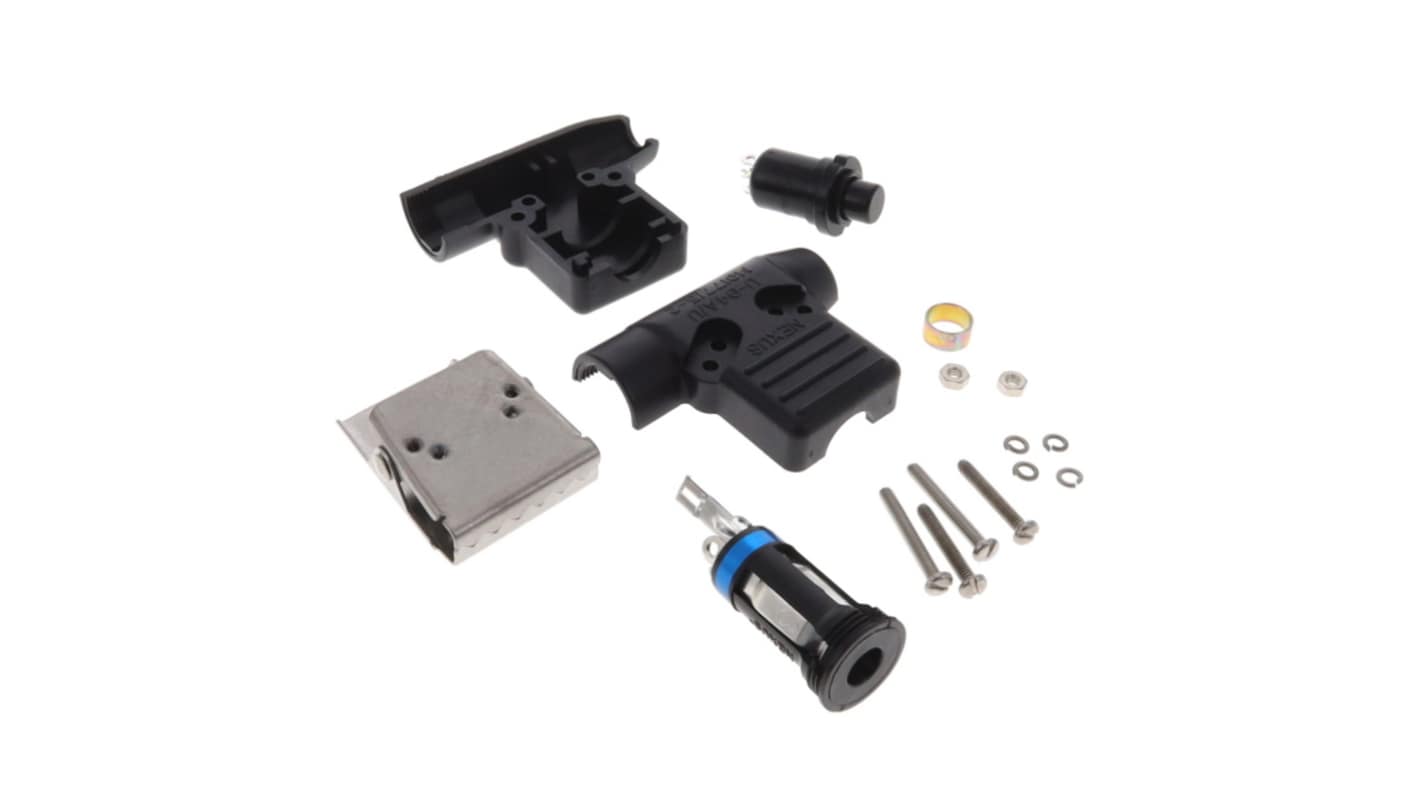

The Amphenol NEXUS Technologies Telephone Jack Switch has 4 conductors and is designed for ruggedized commercial or military applications. It has an overall width of 1.625 inch, an overall height of 2.156 inch, and an overall length of 2.359 inch. The contact diameter is .285 inch. The contact resistance is less than or equal to .02 ohms, while the insulation resistance is greater than or equal to 1,000 mega ohms. The dielectric withstanding voltage (RMS) is greater than or equal to 500 V. The maximum insertion force is 13 lb., and the withdrawal force ranges from 6 to 10 lb.

Shell Material Plastic
Contact Material Nickel Plated Beryllium Copper
Solder Contact Terminals Pre-tinned over Nickel Plating
