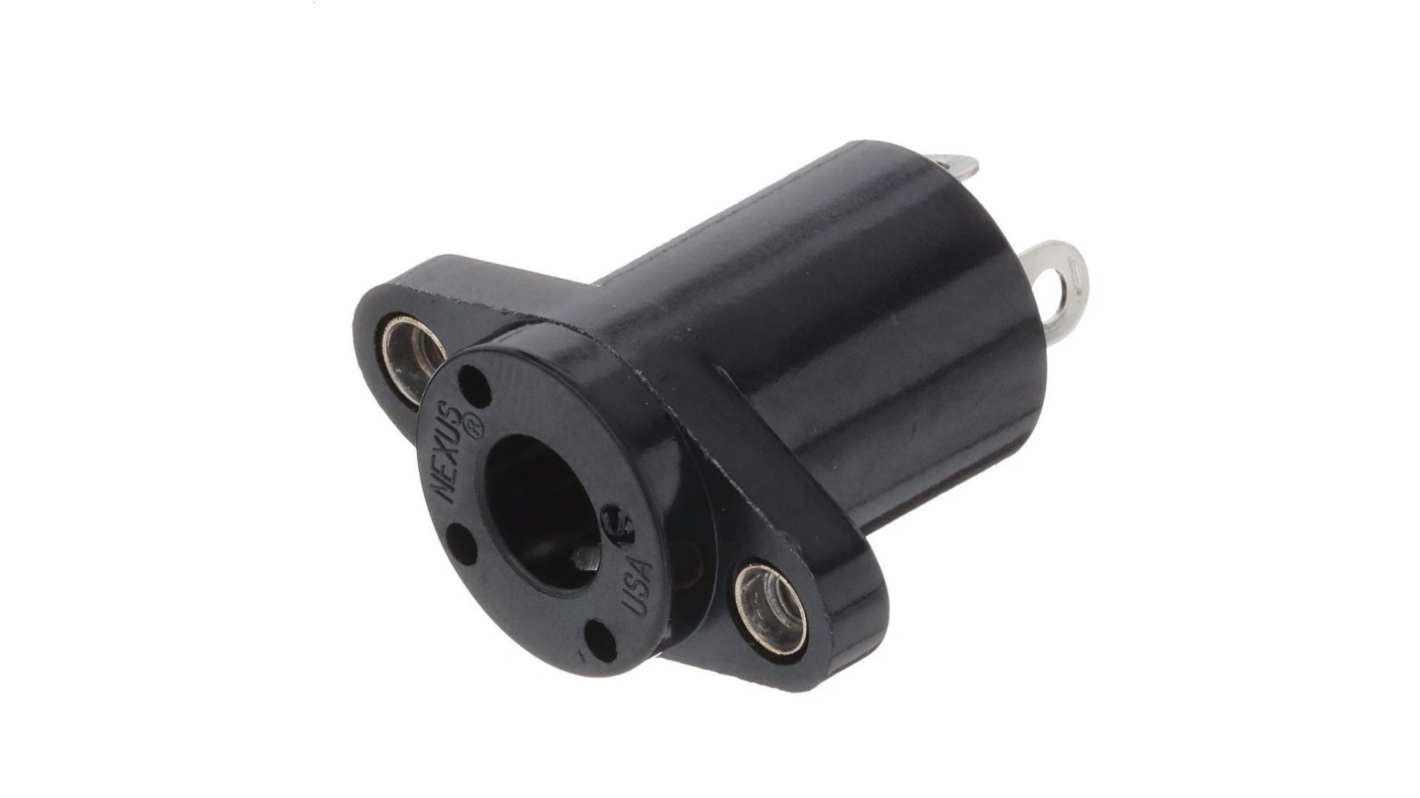

Amphenol NEXUS Technologies Jack Plug Flange Mount Telephone Plug Socket, 4Pole

View all Jack Plugs & Sockets

Subtotal (1 unit)*

£7.18

(exc. VAT)

£8.62

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 79 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£7.18

*price indicative

RS Stock No.:
232-245
Mfr. Part No.:
TJ-120
Brand:
Amphenol NEXUS Technologies
Find similar products by selecting one or more attributes.
Select all

Brand

Amphenol NEXUS Technologies

Gender

Female

Mounting Type

Flange Mount

Type

Telephone Plug

Body Orientation

Straight

No of Poles/ Way

4

COO (Country of Origin):
US
The Amphenol NEXUS Technologies flanged rear-mounted jack is designed for ruggedized commercial and military applications. It features 4 conductors with an overall width of 0.625, height of 1.188, and length of 1.125. The contact diameter is 0.285 with a contact length of 0.188. The solder contact terminals are pre-tinned over nickel plating for improved reliability. The contact resistance is less than or equal to 0.02 ohms, and the insulation resistance is at least 1000 mega ohms. The dielectric withstand voltage is at least 500 V RMS. The jack requires a maximum insertion force of 13 lb., with a withdrawal force ranging from 6 to 10 lb.

Shell Material Plastic
Contact Material Nickel Plated Beryllium Copper
Body Material Phenolic
