RS PRO 2P Pole Isolator Switch - 25A Maximum Current, 15kW Power Rating, IP65
- RS Stock No.:
- 860-9554
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£76.67
(exc. VAT)
£92.00
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 5 left, ready to ship
- Plus 1 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £76.67 |
5 - 9 | £74.29 |
10 + | £71.15 |
*price indicative
- RS Stock No.:
- 860-9554
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Poles | 2P | |
Maximum Current | 25A | |
IP Rating | IP65 | |
Power Rating | 15kW | |
Voltage Rating | 500V | |
Handle Colour | Black | |
Accepts Padlocks | Yes | |
Switch Rating | 30kA | |
Length | 175mm | |
Width | 151mm | |
Depth | 95mm | |
Maximum Operating Temperature | +40°C | |
Minimum Operating Temperature | -25°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Poles 2P | ||
Maximum Current 25A | ||
IP Rating IP65 | ||
Power Rating 15kW | ||
Voltage Rating 500V | ||
Handle Colour Black | ||
Accepts Padlocks Yes | ||
Switch Rating 30kA | ||
Length 175mm | ||
Width 151mm | ||
Depth 95mm | ||
Maximum Operating Temperature +40°C | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- ES

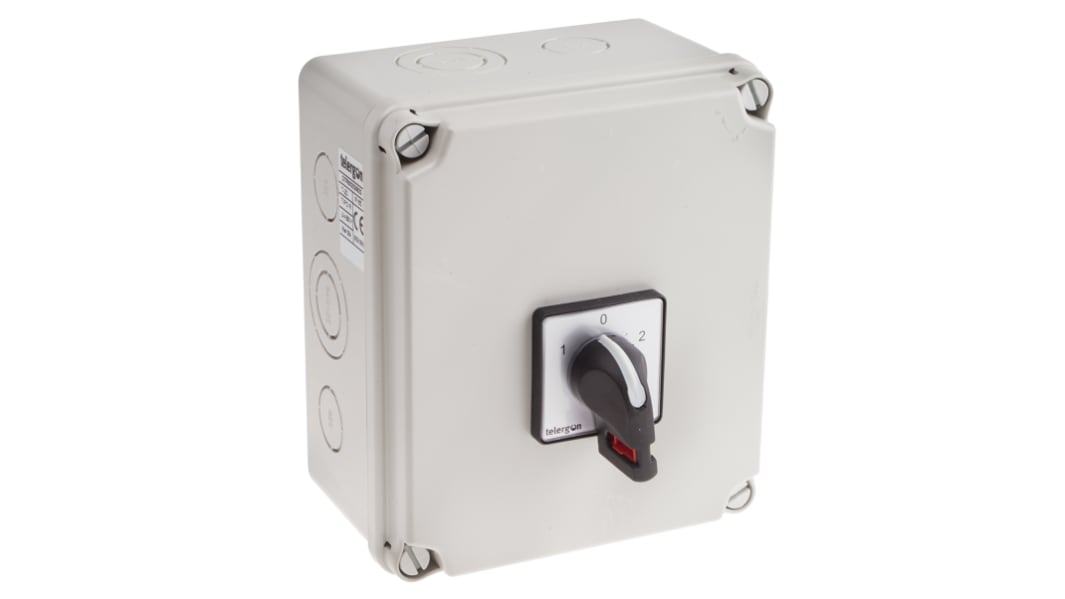

RS PRO 2 Pole Enclosed Changeover Switch – 25 A Maximum Current, 15 kW Power Rating, IP65
You can use this RS PRO changeover switch when you need to change between two power supplies powering a single application. Changeover switches are also called transfer switches, as they're commonly used to transfer electricity from power grids to local generators.
The housing is made of acrylonitrile butadiene styrene (ABS) material, which ensures it's resistant to corrosion and impact. The ABS also has flame retardant properties for added safety. The switch can be padlocked, so you can rest assured it's protected against unauthorised use. It's designed to allow you to easily open the housing and quickly disconnect the switch when needed.
The product has an Ingress Protection (IP) rating of IP65, so you can be sure it's fully protected from dust and low-pressure jets of water. It's also handled and packed to meet British (BS EN 61340-5-1:2007) and American (ANSI/ESD S20.20:2014) electrostatic discharge (ESD) standards to ensure the risk of a discharge is minimised.
The housing is made of acrylonitrile butadiene styrene (ABS) material, which ensures it's resistant to corrosion and impact. The ABS also has flame retardant properties for added safety. The switch can be padlocked, so you can rest assured it's protected against unauthorised use. It's designed to allow you to easily open the housing and quickly disconnect the switch when needed.
The product has an Ingress Protection (IP) rating of IP65, so you can be sure it's fully protected from dust and low-pressure jets of water. It's also handled and packed to meet British (BS EN 61340-5-1:2007) and American (ANSI/ESD S20.20:2014) electrostatic discharge (ESD) standards to ensure the risk of a discharge is minimised.
Features and Benefits
• Accepts padlocks
• Dimensions of 175 (length) x 151 (width) x 95 mm (depth)
• IP65 rated
• Maximum current of 25 A
• Maximum operating temperature of +40°C
• Minimum operating temperature of -25°C
• Two poles
• Power rating of 15 kW
• Switch rating of 30 kA
• Voltage rating of 500 V
• Dimensions of 175 (length) x 151 (width) x 95 mm (depth)
• IP65 rated
• Maximum current of 25 A
• Maximum operating temperature of +40°C
• Minimum operating temperature of -25°C
• Two poles
• Power rating of 15 kW
• Switch rating of 30 kA
• Voltage rating of 500 V
