Eaton 3P Pole Surface Mount Isolator Switch - 25A Maximum Current, 13kW Power Rating, IP65
- RS Stock No.:
- 393-9743
- Mfr. Part No.:
- 226900 P1-25/I2H/SVB
- Brand:
- Eaton
Subtotal (1 unit)*
£50.71
(exc. VAT)
£60.85
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 26 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 18 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £50.71 |
*price indicative
- RS Stock No.:
- 393-9743
- Mfr. Part No.:
- 226900 P1-25/I2H/SVB
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Number of Poles | 3P | |
Maximum Current | 25A | |
Mounting Type | Surface Mount | |
IP Rating | IP65 | |
Power Rating | 13kW | |
Voltage Rating | 440V ac | |
Electrical Phase | 3 | |
Handle Colour | Red | |
Accepts Padlocks | Yes | |
Normal State Configuration | NO | |
Auxiliary Contacts Available | Yes | |
Switch Rating | 640A | |
Length | 160mm | |
Width | 100mm | |
Depth | 80mm | |
Throw Configuration | Single | |
Minimum Operating Temperature | -25°C | |
Terminal Type | Screw | |
Maximum Operating Temperature | +50°C | |
Select all | ||
---|---|---|
Brand Eaton | ||
Number of Poles 3P | ||
Maximum Current 25A | ||
Mounting Type Surface Mount | ||
IP Rating IP65 | ||
Power Rating 13kW | ||
Voltage Rating 440V ac | ||
Electrical Phase 3 | ||
Handle Colour Red | ||
Accepts Padlocks Yes | ||
Normal State Configuration NO | ||
Auxiliary Contacts Available Yes | ||
Switch Rating 640A | ||
Length 160mm | ||
Width 100mm | ||
Depth 80mm | ||
Throw Configuration Single | ||
Minimum Operating Temperature -25°C | ||
Terminal Type Screw | ||
Maximum Operating Temperature +50°C | ||
- COO (Country of Origin):
- GB
Eaton Isolator Switch, 690V AC Voltage Rating, Red Rotary Handle - 226900 P1-25/I2H/SVB

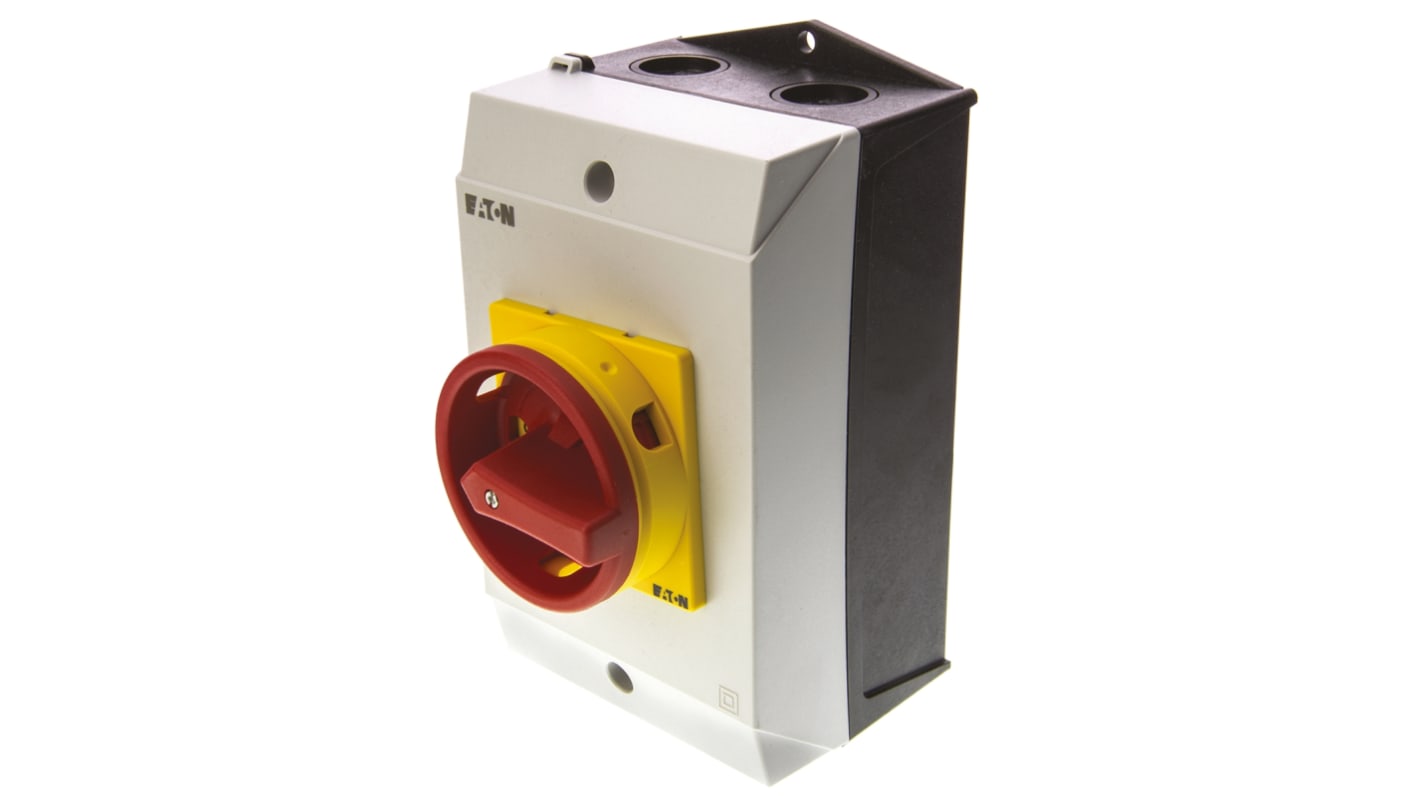

When things get critical, stay in control with this isolator switch from Eaton. It's a maintained switch with an off position, so gives you a way to manually disconnect power. A red rotary handle and yellow locking ring mean you'll have no trouble spotting this component in a busy setup. Holes in the handle let you secure it in the off position with a padlock until it's safe to switch back on. To boost electrical protection, it's fully insulated and fused, while screw terminals achieve dependable wiring. You'll find switched likes this used for servicing and troubleshooting automated machines in the processing, manufacturing and plant industries.
• Mechanical durability of 300,000 operations for longevity
• IP65 rating indicates it's dust-tight and resistant to low-pressure water jets from any angle
• Compact dimensions of 180 (L) x 100 (W) x 115mm (D) take up minimal space
• IP65 rating indicates it's dust-tight and resistant to low-pressure water jets from any angle
• Compact dimensions of 180 (L) x 100 (W) x 115mm (D) take up minimal space
How do I mount this isolator switch?
The unit is boxed in a robust housing with an integrated mounting frame for simple surface mounting on a control panel.
What's the operating temperature of this switch?
A broad operating temperature range of -25°C to +50°C means it can handle demanding conditions.
Note
Eaton formerly known as Moeller
