Schneider Electric 3-Pole Fixed Isolator Switch -, IP20, IP40, 100A
- RS Stock No.:
- 276-2350
- Mfr. Part No.:
- TA10D3L1004TPE
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£1,606.19
(exc. VAT)
£1,927.43
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £1,606.19 |
*price indicative
- RS Stock No.:
- 276-2350
- Mfr. Part No.:
- TA10D3L1004TPE
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Poles | 3 | |
| Product Type | Isolator Switch | |
| Mount Type | Fixed | |
| IP Rating | IP20, IP40 | |
| Series | TransferPacT | |
| Switching Current | 100A | |
| Auxiliary Contacts Available | Yes | |
| Terminal Type | Screw Connection | |
| Padlock Compatibility | Yes | |
| Minimum Operating Temperature | -25°C | |
| Switching AC Voltage | 400V ac | |
| Maximum Operating Temperature | 70°C | |
| Hazardous Area Certification | NO | |
| Depth | 94mm | |
| Width | 306mm | |
| Standards/Approvals | IEC 60947-6-1 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Poles 3 | ||
Product Type Isolator Switch | ||
Mount Type Fixed | ||
IP Rating IP20, IP40 | ||
Series TransferPacT | ||
Switching Current 100A | ||
Auxiliary Contacts Available Yes | ||
Terminal Type Screw Connection | ||
Padlock Compatibility Yes | ||
Minimum Operating Temperature -25°C | ||
Switching AC Voltage 400V ac | ||
Maximum Operating Temperature 70°C | ||
Hazardous Area Certification NO | ||
Depth 94mm | ||
Width 306mm | ||
Standards/Approvals IEC 60947-6-1 | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN

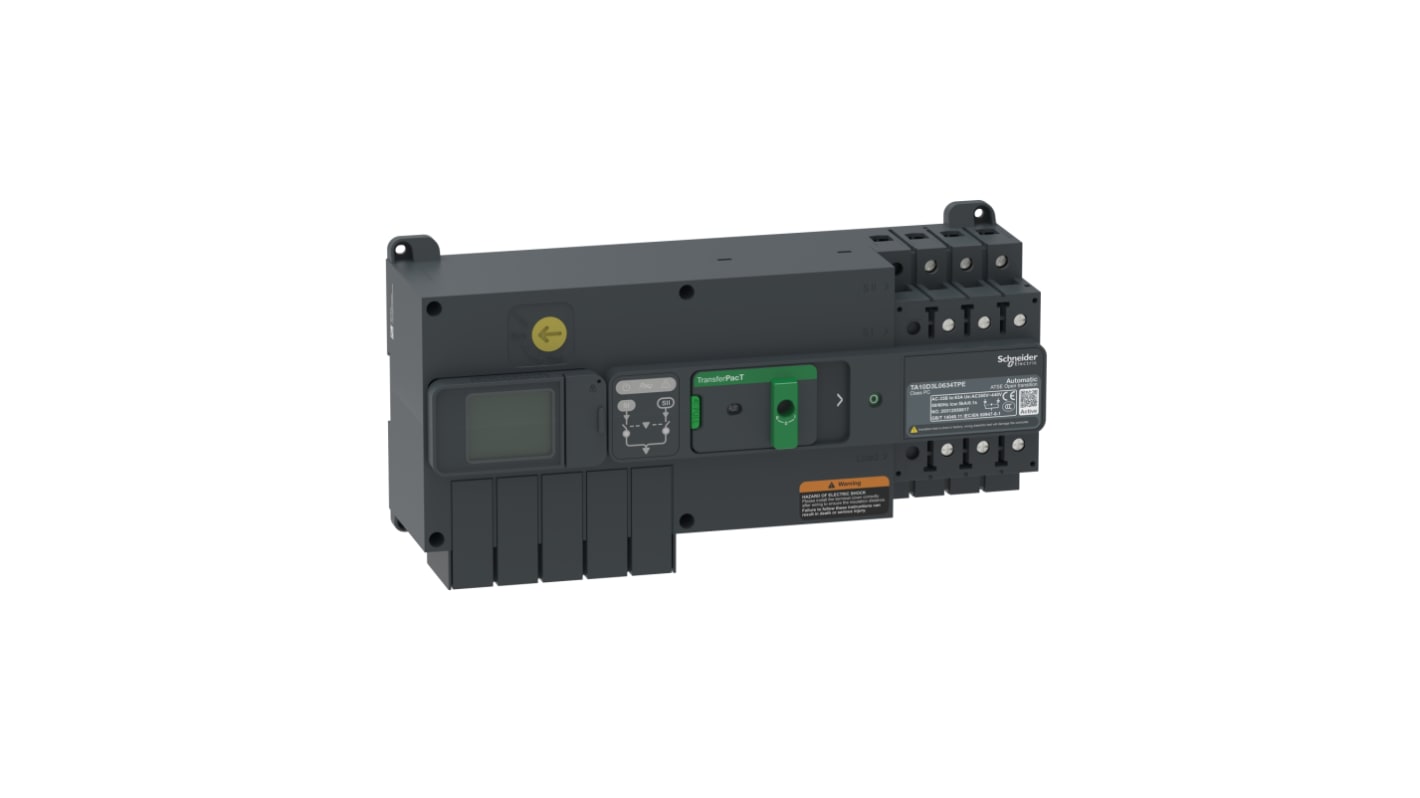

The Schneider Electric low voltage power transfer switch used in industrial and commercial buildings, data centres, healthcare facilities and transportation industry. This transfer switch provided 3 contact position to the front by mechanical and electrical indication. It can be fixed on the din rail or plate and position it inside of power distribution cabinet. It also has some optional accessories in terms of different application scene.
It is mercury free
Standards IEC 60947-6-1
Rated duty uninterrupted
