Siemens 3-Pole DIN Rail Switch Disconnector -, IP10, 100A, 22 kW
- RS Stock No.:
- 275-4958
- Mfr. Part No.:
- 3KD0530-2LG20-3
- Brand:
- Siemens
Subtotal (1 unit)*
£83.48
(exc. VAT)
£100.18
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £83.48 |
*price indicative
- RS Stock No.:
- 275-4958
- Mfr. Part No.:
- 3KD0530-2LG20-3
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Switch Disconnector | |
| Number of Poles | 3 | |
| Mount Type | DIN Rail | |
| IP Rating | IP10 | |
| Terminal Type | Box | |
| Auxiliary Contacts Available | Yes | |
| Switching Current | 100A | |
| Series | 3KD0530-2LG20-3 | |
| Switching AC Voltage | 690V ac | |
| Switching Power | 22kW | |
| Minimum Operating Temperature | -5°C | |
| Maximum Operating Temperature | 40°C | |
| Hazardous Area Certification | No | |
| Depth | 74mm | |
| Standards/Approvals | CE, UKCA, IEC 81346-2 | |
| Width | 73mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Switch Disconnector | ||
Number of Poles 3 | ||
Mount Type DIN Rail | ||
IP Rating IP10 | ||
Terminal Type Box | ||
Auxiliary Contacts Available Yes | ||
Switching Current 100A | ||
Series 3KD0530-2LG20-3 | ||
Switching AC Voltage 690V ac | ||
Switching Power 22kW | ||
Minimum Operating Temperature -5°C | ||
Maximum Operating Temperature 40°C | ||
Hazardous Area Certification No | ||
Depth 74mm | ||
Standards/Approvals CE, UKCA, IEC 81346-2 | ||
Width 73mm | ||
- COO (Country of Origin):
- DE

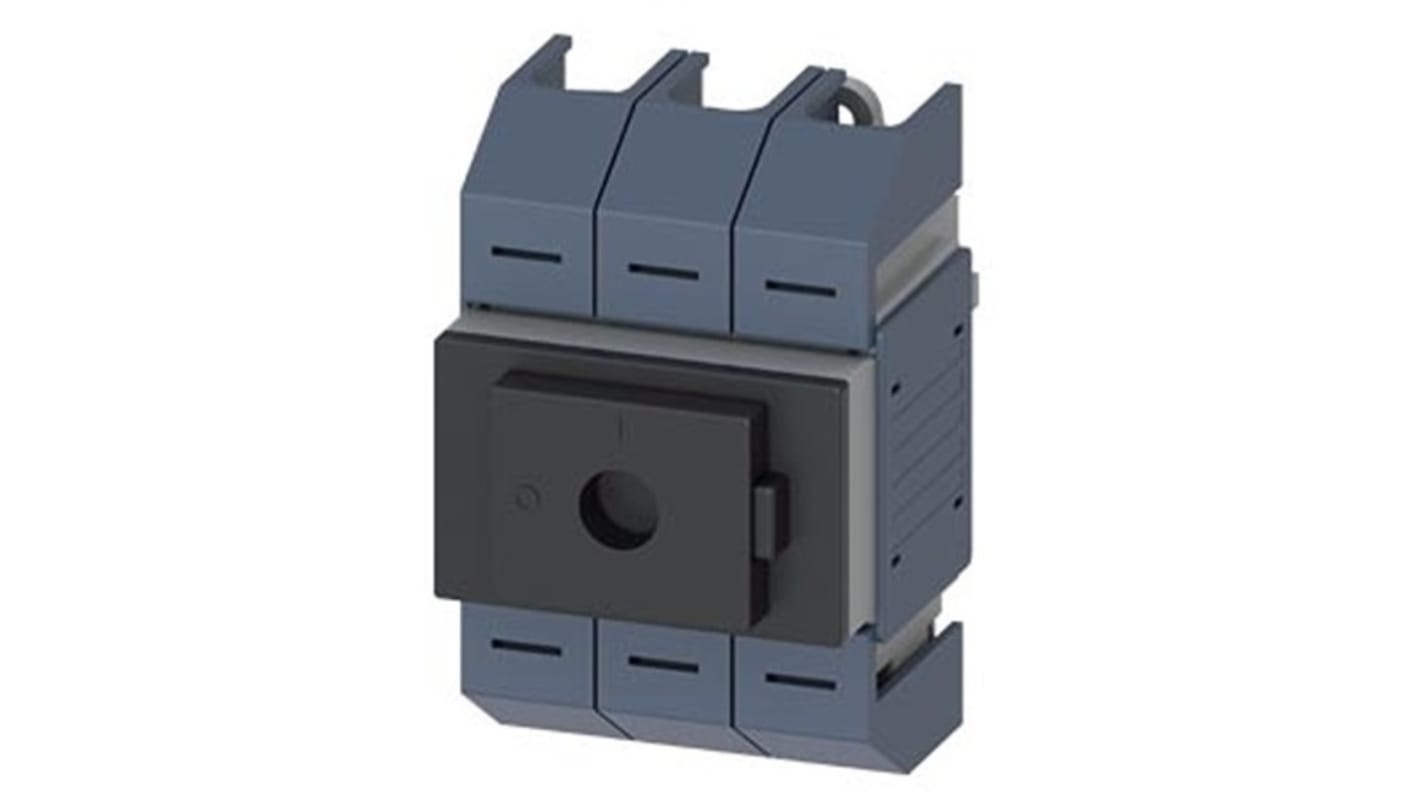

The Siemens Switch Disconnector with front operating driving mechanism is a complete unit with direct operating mechanism. It is suitable for use with main switch, switch disconnector, safety switch and maintenance or repair switch.
EAC and CE approved
Short rotary knob design of actuating element
