MPN

Eaton 3-Pole Flush Isolator Switch -, IP65

RS Stock No.:: 266-4631
Mfr. Part No.:: 172814 P3-63/M4/K2-PR/HI11
Brand:: Eaton

Eaton 3-Pole Flush Isolator Switch -, IP65

Subtotal (1 unit)*

£174.68

(exc. VAT)

£209.62

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 09 July 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£174.68

*price indicative

Stop. Switch. Secure. Eaton’s Smart Safety Combo

Ensure total control and safety with Eaton’s Emergency Stop Push Buttons and Isolator Switches - engineered for rapid response and reliable isolation in every critical moment.

Shop here

RS Stock No.:: 266-4631
Mfr. Part No.:: 172814 P3-63/M4/K2-PR/HI11
Brand:: Eaton

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Number of Poles	3
	Product Type	Isolator Switch
	Mount Type	Flush
	IP Rating	IP65
	Series	1728
	Auxiliary Contacts Available	Yes
	Terminal Type	Screw
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	40°C
	Length	340mm
	Hazardous Area Certification	No
	Standards/Approvals	CSA, CSA Class No.: 3211-05, CSA-C22.2 No. 94, CSA-C22.2 No. 60947-4-1-14, CE, IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332, VDE 0660, CSA File No.: 012528, IEC/EN 60204
	Width	100mm
	Depth	340mm

	Select all
	Brand Eaton
	Number of Poles 3
	Product Type Isolator Switch
	Mount Type Flush
	IP Rating IP65
	Series 1728
	Auxiliary Contacts Available Yes
	Terminal Type Screw
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 40°C
	Length 340mm
	Hazardous Area Certification No
	Standards/Approvals CSA, CSA Class No.: 3211-05, CSA-C22.2 No. 94, CSA-C22.2 No. 60947-4-1-14, CE, IEC/EN 60947, IEC/EN 60947-3, UL, UL File No.: E36332, VDE 0660, CSA File No.: 012528, IEC/EN 60204
	Width 100mm
	Depth 340mm

COO (Country of Origin):: GB

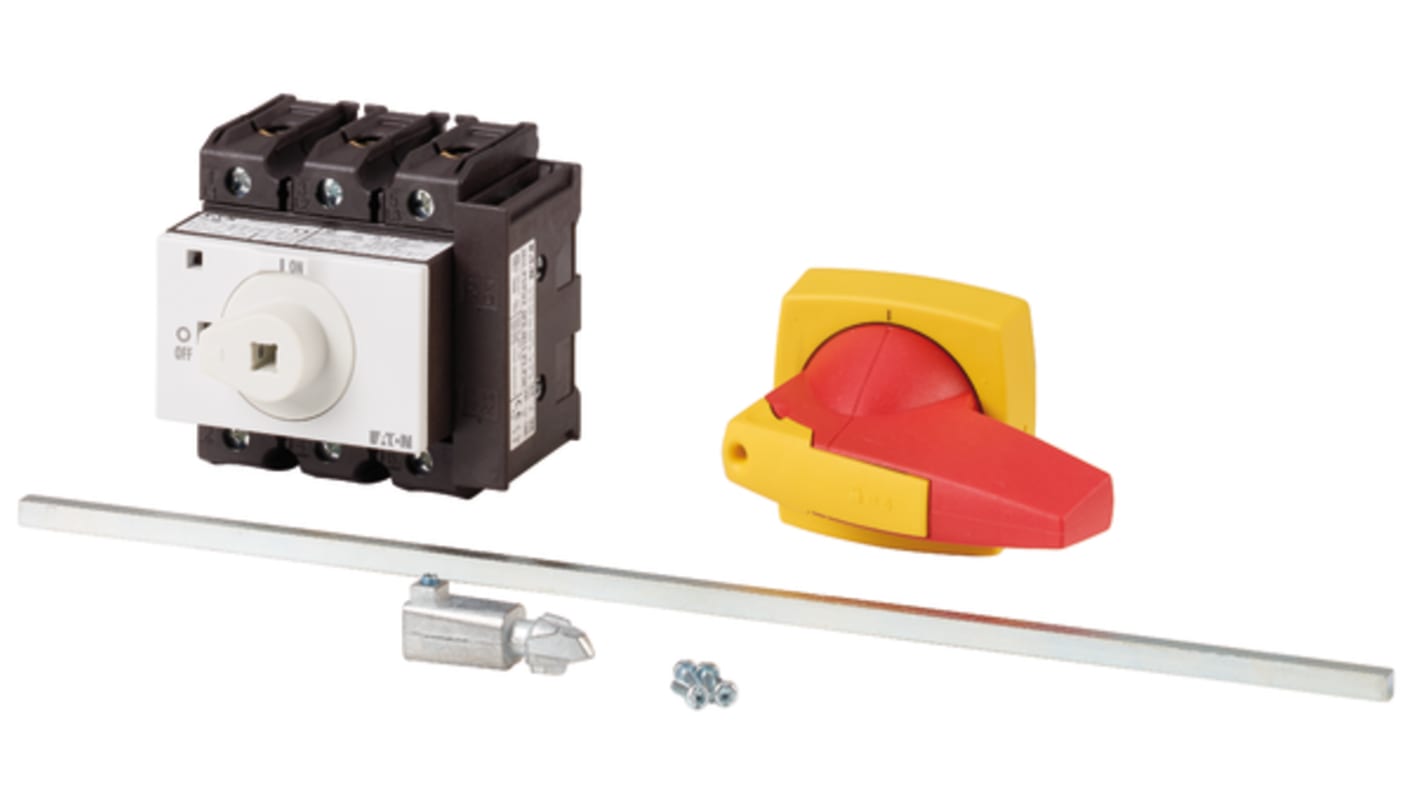

The Eaton main switch with emergency switching off function is fitted with metal shaft for a control panel, an auxiliary contact, a rotary handle with a locking ring only for use with extension shaft to protect from damage of excess current, overloads and short circuit manually by disconnecting electrical equipment for servicing and maintenance by cutting the power supply to isolated parts of the circuit.

Corrosion resistant

Thermally stable
