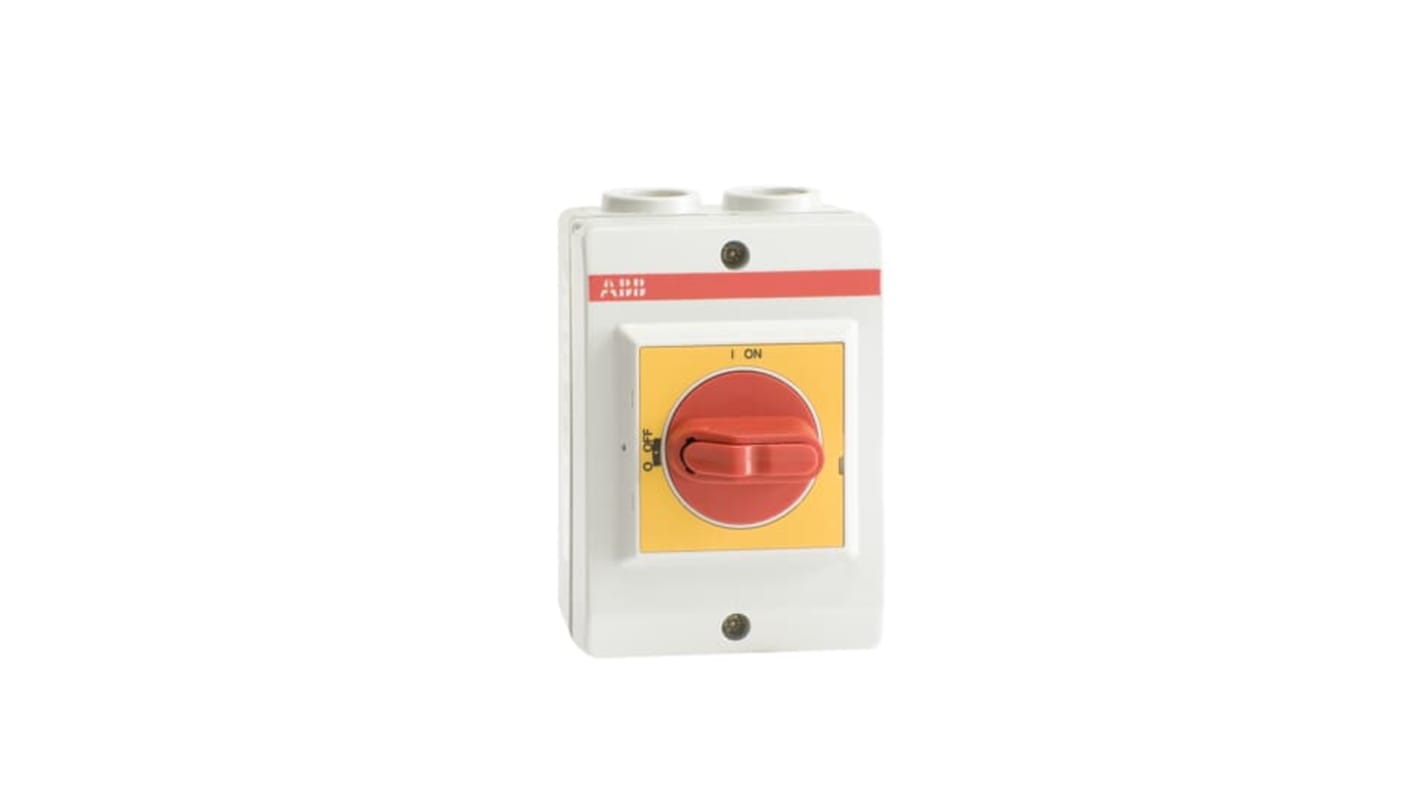

ABB 3-Pole Isolator Switch -, IP65, 32A, 7.5 kW

View all Isolator Switches

Subtotal (1 unit)*

£58.32

(exc. VAT)

£69.98

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later
Units
Per unit
1 +£58.32

*price indicative

Sponsored
ABB AF Contactors
ABB Contactors for Power and Versatility
The ABB AF range of contactors are a reliable and efficient choice for motor control and power-switching applications. Explore the complete range today.
Explore ABB AF Contactors
RS Stock No.:
259-6117
Mfr. Part No.:
1SCA022401R0330
Brand:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Number of Poles

3

Product Type

Isolator Switch

IP Rating

IP65

Handle Colour

Red, Yellow

Terminal Type

Screw Clamp

Series

1SCA02

Auxiliary Contacts Available

Yes

Switching Current

32A

Switching Power

7.5kW

Padlock Compatibility

Yes

Switching AC Voltage

750V ac

Width

120mm

Depth

60mm

Standards/Approvals

IEC 60947-1-3

Hazardous Area Certification

NO

Length

85mm

COO (Country of Origin):
FI

1SCA022401R0330


The ABB enclosed switch disconnector is using a galvanised steel enclosure, black pistol handle, interlocked cover and defeat able interlocking with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallel cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is pad lockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.

IP65 protection

The handle is pad lockable for 3 padlocks
