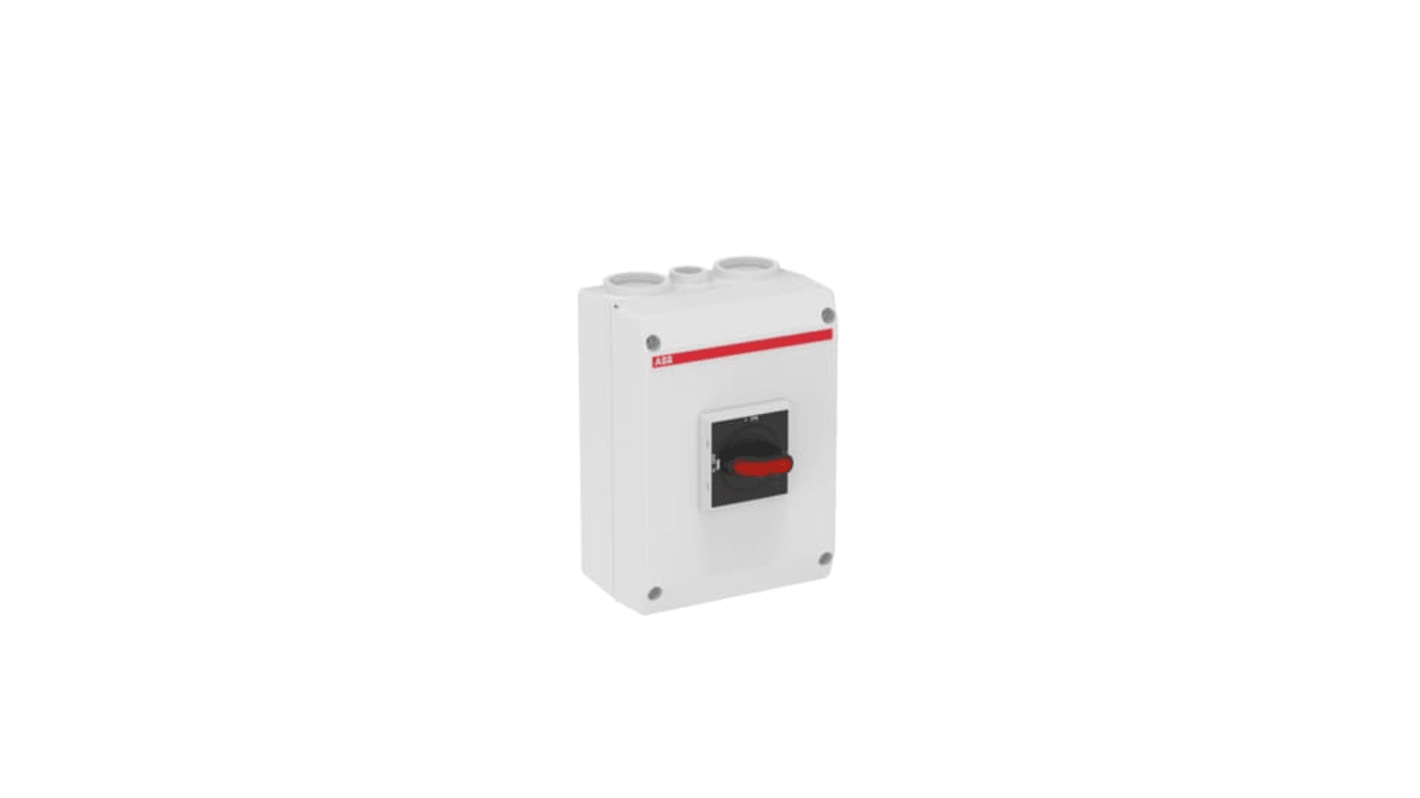

ABB 3-Pole Isolator Switch -, IP65, 63A, 15 kW
- RS Stock No.:
- 259-6116
- Mfr. Part No.:
- 1SCA022401R0090
- Brand:
- ABB
Subtotal (1 unit)*
£125.95
(exc. VAT)
£151.14
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £125.95 |
*price indicative
- RS Stock No.:
- 259-6116
- Mfr. Part No.:
- 1SCA022401R0090
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 3 | |
| Product Type | Isolator Switch | |
| IP Rating | IP65 | |
| Handle Colour | Black | |
| Auxiliary Contacts Available | Yes | |
| Switching Current | 63A | |
| Terminal Type | Screw Clamp | |
| Series | 1SCA02 | |
| Switching Power | 15kW | |
| Padlock Compatibility | Yes | |
| Switching AC Voltage | 750V ac | |
| Depth | 90mm | |
| Length | 200mm | |
| Standards/Approvals | IEC 60947-1-3 | |
| Hazardous Area Certification | No | |
| Width | 145mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 3 | ||
Product Type Isolator Switch | ||
IP Rating IP65 | ||
Handle Colour Black | ||
Auxiliary Contacts Available Yes | ||
Switching Current 63A | ||
Terminal Type Screw Clamp | ||
Series 1SCA02 | ||
Switching Power 15kW | ||
Padlock Compatibility Yes | ||
Switching AC Voltage 750V ac | ||
Depth 90mm | ||
Length 200mm | ||
Standards/Approvals IEC 60947-1-3 | ||
Hazardous Area Certification No | ||
Width 145mm | ||
- COO (Country of Origin):
- FI
1SCA022401R0090
The ABB enclosed switch disconnector is using a galvanised steel enclosure, black pistol handle, interlocked cover and defeat able interlocking with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallel cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is pad lockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
IP65 protection
The handle is pad lockable for 3 padlocks
