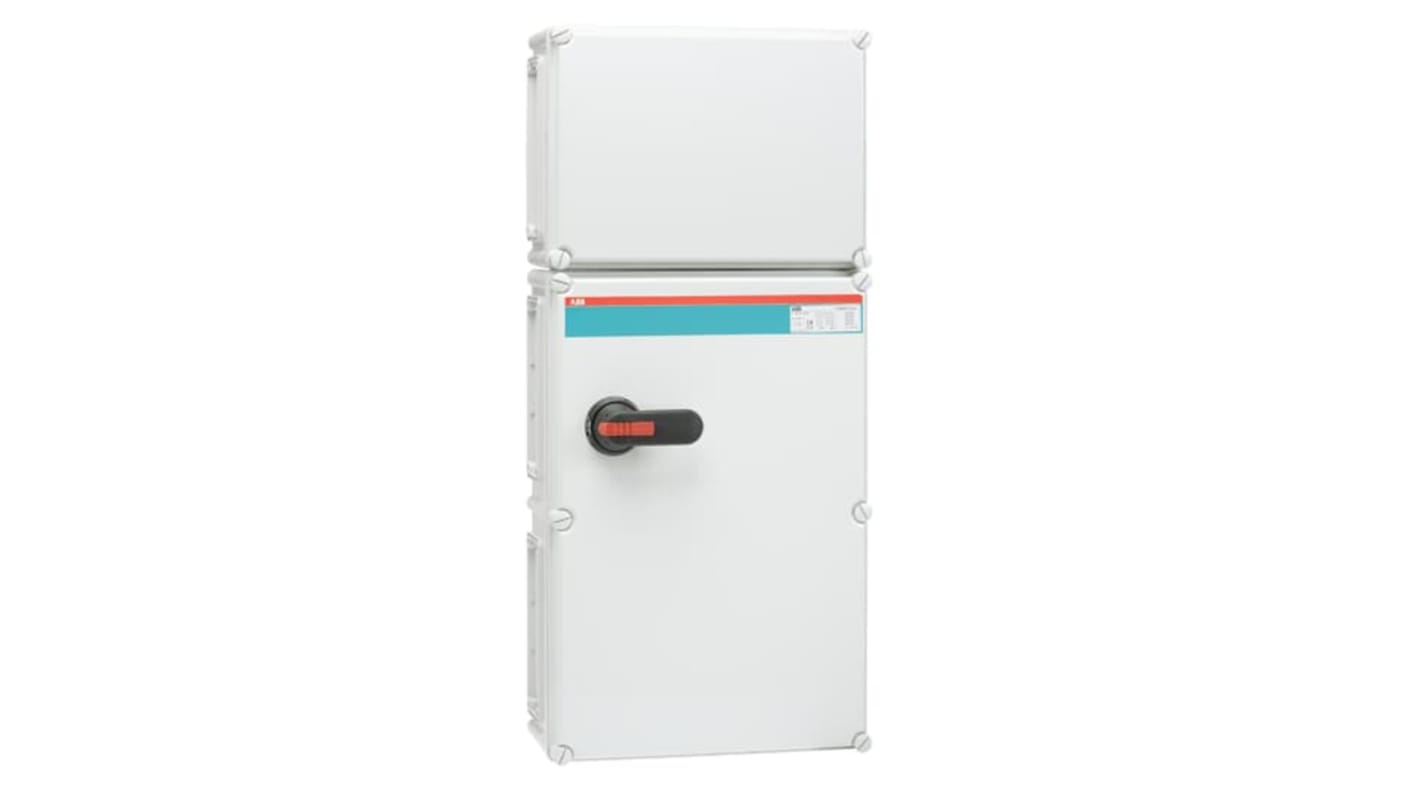

ABB 3-Pole Isolator Switch -, IP65, 400A, 10 W
- RS Stock No.:
- 259-6095
- Mfr. Part No.:
- 1SCA022277R0490
- Brand:
- ABB
Subtotal (1 unit)*
£1,578.79
(exc. VAT)
£1,894.55
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1,578.79 |
*price indicative
- RS Stock No.:
- 259-6095
- Mfr. Part No.:
- 1SCA022277R0490
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Product Type | Isolator Switch | |
| Number of Poles | 3 | |
| IP Rating | IP65 | |
| Handle Colour | Black | |
| Switching Current | 400A | |
| Auxiliary Contacts Available | Yes | |
| Terminal Type | Screw Clamp Terminal | |
| Series | 1SCA0 | |
| Switching Power | 10W | |
| Switching AC Voltage | 1000V ac | |
| Padlock Compatibility | Yes | |
| Hazardous Area Certification | NO | |
| Depth | 325mm | |
| Width | 415mm | |
| Standards/Approvals | IEC 60947-1-3 | |
| Length | 910mm | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Product Type Isolator Switch | ||
Number of Poles 3 | ||
IP Rating IP65 | ||
Handle Colour Black | ||
Switching Current 400A | ||
Auxiliary Contacts Available Yes | ||
Terminal Type Screw Clamp Terminal | ||
Series 1SCA0 | ||
Switching Power 10W | ||
Switching AC Voltage 1000V ac | ||
Padlock Compatibility Yes | ||
Hazardous Area Certification NO | ||
Depth 325mm | ||
Width 415mm | ||
Standards/Approvals IEC 60947-1-3 | ||
Length 910mm | ||
- COO (Country of Origin):
- FI
1SCA022277R0490
The ABB enclosed switch disconnector is using a galvanised steel enclosure, black pistol handle, interlocked cover and defeat able interlocking with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallel cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is pad lockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
IP65 protection
The handle is pad lockable for 3 padlocks
