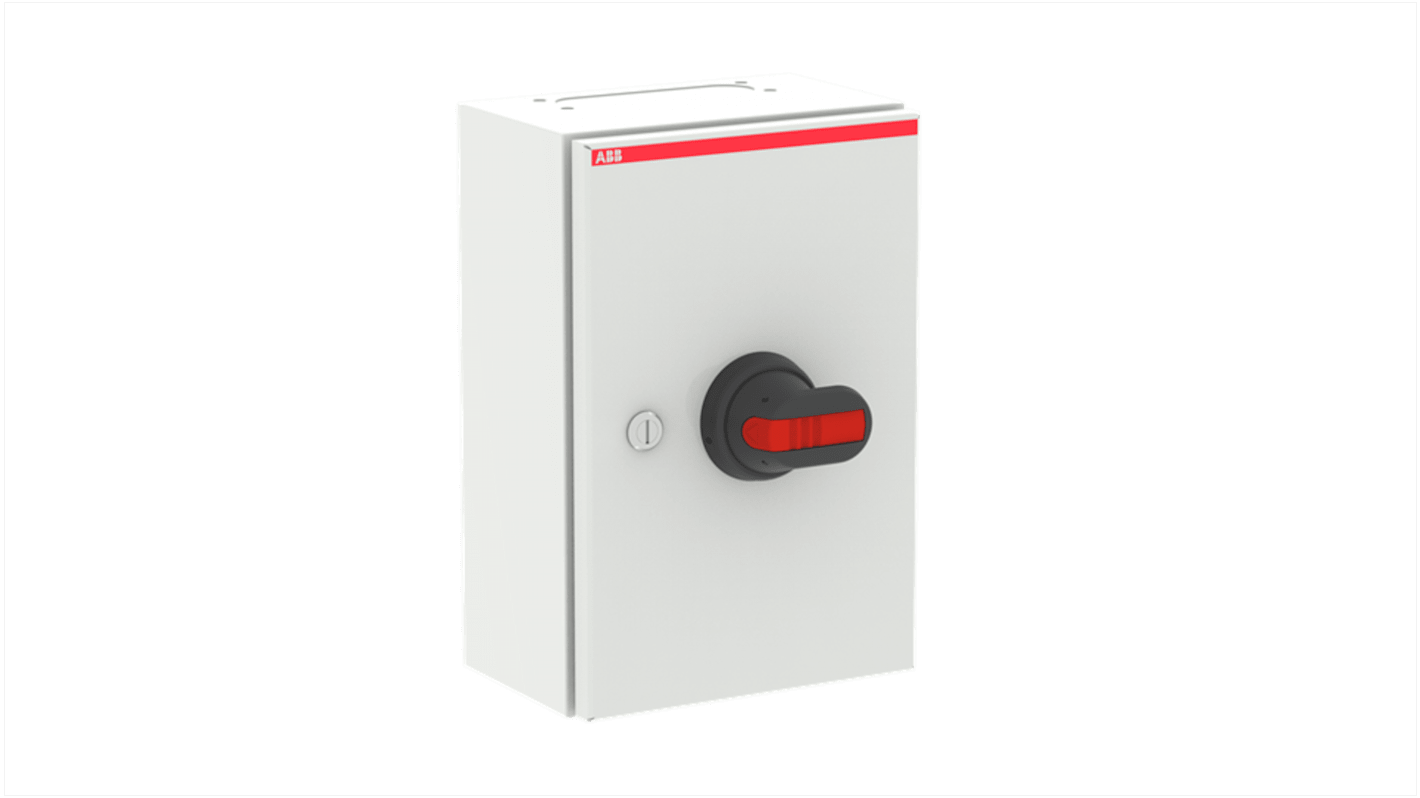

ABB 4 Pole Isolator Switch - 125A Maximum Current
- RS Stock No.:
- 258-9588
- Mfr. Part No.:
- 1SCA022562R9830
- Brand:
- ABB
- RS Stock No.:
- 258-9588
- Mfr. Part No.:
- 1SCA022562R9830
- Brand:
- ABB
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ABB | |
| Number of Poles | 4 | |
| Maximum Current | 125A | |
| Range | Steel Sheet Enclosed OT125-250 | |
| Series | 1SCA0 | |
| Enclosed/Not Enclosed | Enclosed | |
| Select all | ||
|---|---|---|
Brand ABB | ||
Number of Poles 4 | ||
Maximum Current 125A | ||
Range Steel Sheet Enclosed OT125-250 | ||
Series 1SCA0 | ||
Enclosed/Not Enclosed Enclosed | ||
- COO (Country of Origin):
- FI
1SCA022562R9830
The ABB enclosed switch disconnector is using a galvanised steel enclosure, black pistol handle, interlocked cover and defeat able interlocking with polyester coating. It is suitable for outdoor use with respect to UV light and ingress protection. The enclosure have inbuilt gas pressure relief function to protect the user in case of an internal arc. The door is earthed via the hinges. The enclosure is prepared for single and parallel cables. Cable entry types can be blank , ring-flange or C-flange type (FL21), with different cable configuration, like top/bottom or bottom/bottom. The handle is pad lockable for 3 padlocks, cover is interlocked, and interlock function can be bypassed for thermographing.
IP65 protection
The handle is pad lockable for 3 padlocks
The handle is pad lockable for 3 padlocks
